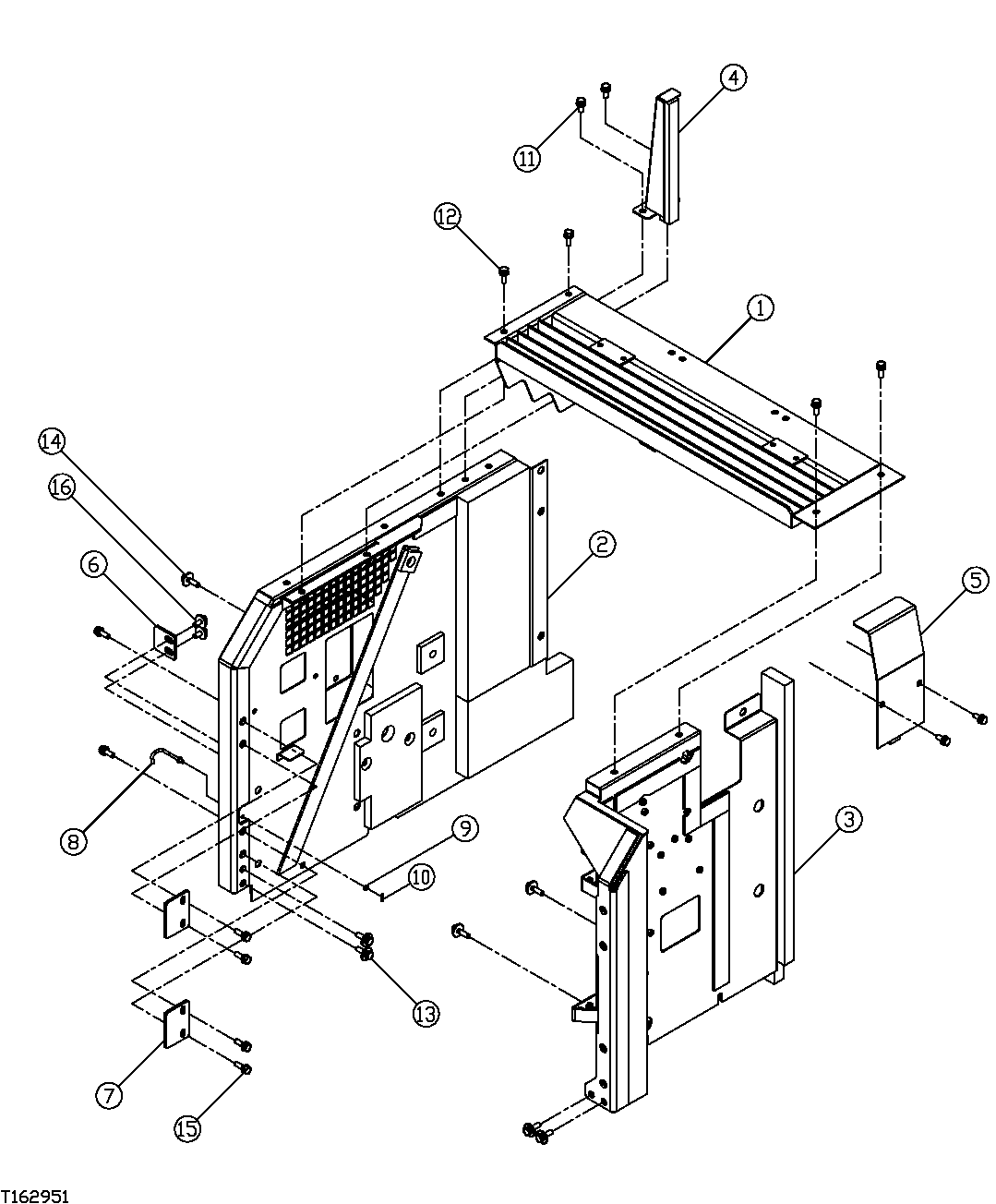

Запчасти John Deere 35C RTS 406 - RADIATOR COMPARTMENT PANELS 1910 HOOD OR ENGINE ENCLOSURE

1

7043778

Cover

(SUB FOR FFSB112539)

1шт.

2

7043780

Panel

(SUB FOR FFSB112540)

1шт.

3

7043779

Panel

(SUB FOR FFSB112541)

1шт.

4

8085489

Cover

(SUB FOR FFSB112542)

1шт.

5

8071341

Cover

(SUB FOR FFSB112543)

1шт.

6

DH400400

Plug

( FFSB110585 NLA)

1шт.

7

4479652

Bracket

(SUB FOR FFSB110584)

2шт.

8

9751797

Latch

(SUB FOR FFSB110586 AND TH9151797)

1шт.

9

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107499)

1шт.

10

CH10542

Pin

(SUB FOR FFSB110588 AND TH106585)

1шт.

11

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107461)

4шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

12

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

13

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107462)

4шт.

14

19M7358

Cap Screw

M10 X 40 (SUB FOR FFSB110567 OR J031040)

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

3шт.

15

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107462)

4шт.

16

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107219 OR J031025)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.
