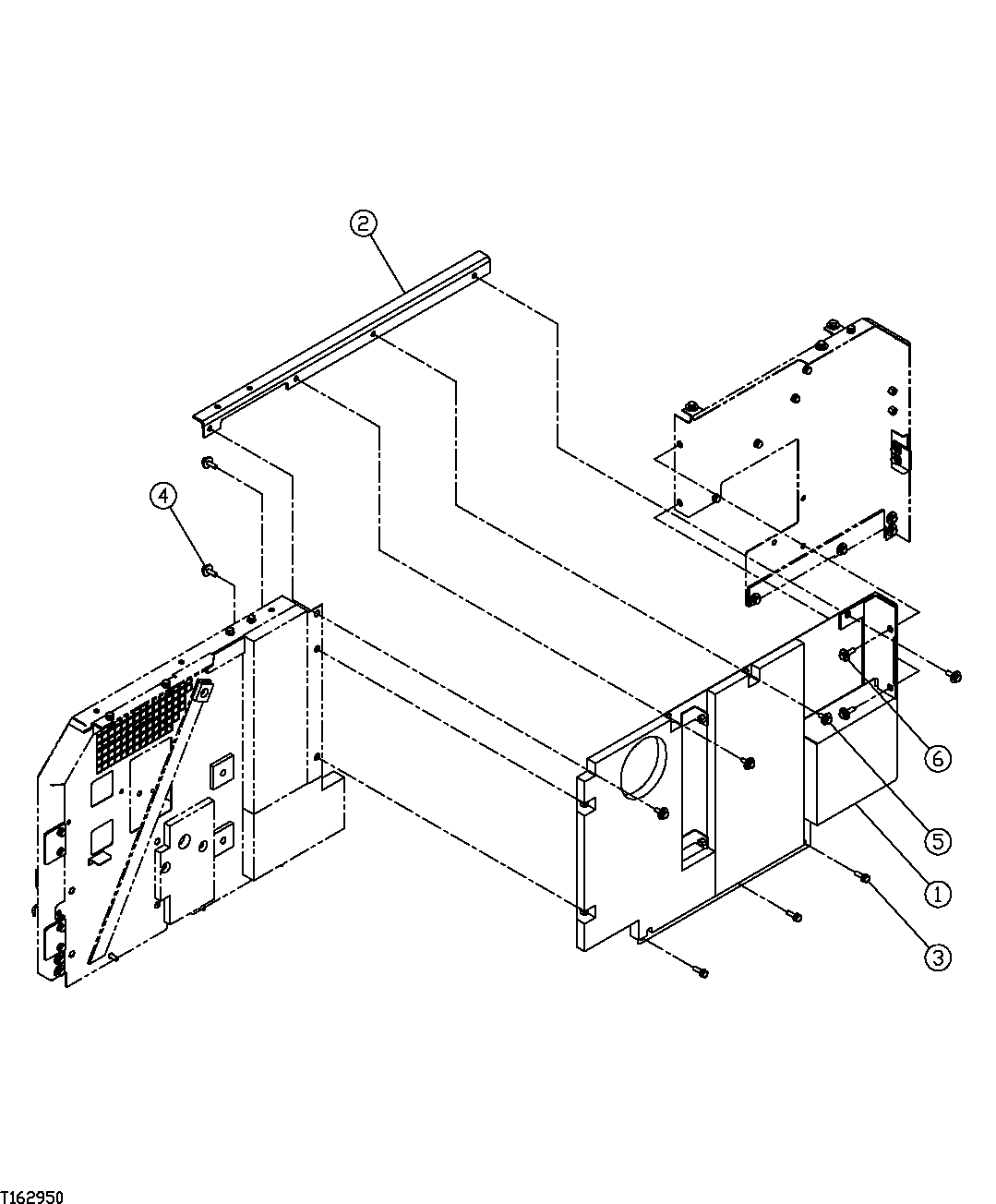

Запчасти John Deere 35C RTS 405 - ENGINE COMPARTMENT PANEL 1910 HOOD OR ENGINE ENCLOSURE

1

7043711

Panel

(SUB FOR FFSB112533)

1шт.

2

8090708

Panel

(SUB FOR FFSB112534)

1шт.

3

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107462)

3шт.

4

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB109179)

3шт.

12M7066

Lock Washer

10 mm

3шт.

24M7346

Washer

11 X 20 X 2 mm

3шт.

5

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB109178)

3шт.

12M7067

Lock Washer

12 mm

3шт.

24M7346

Washer

11 X 20 X 2 mm

3шт.

6

19M7358

Cap Screw

M10 X 40 (SUB FOR FFSB110567 OR J031040)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.
