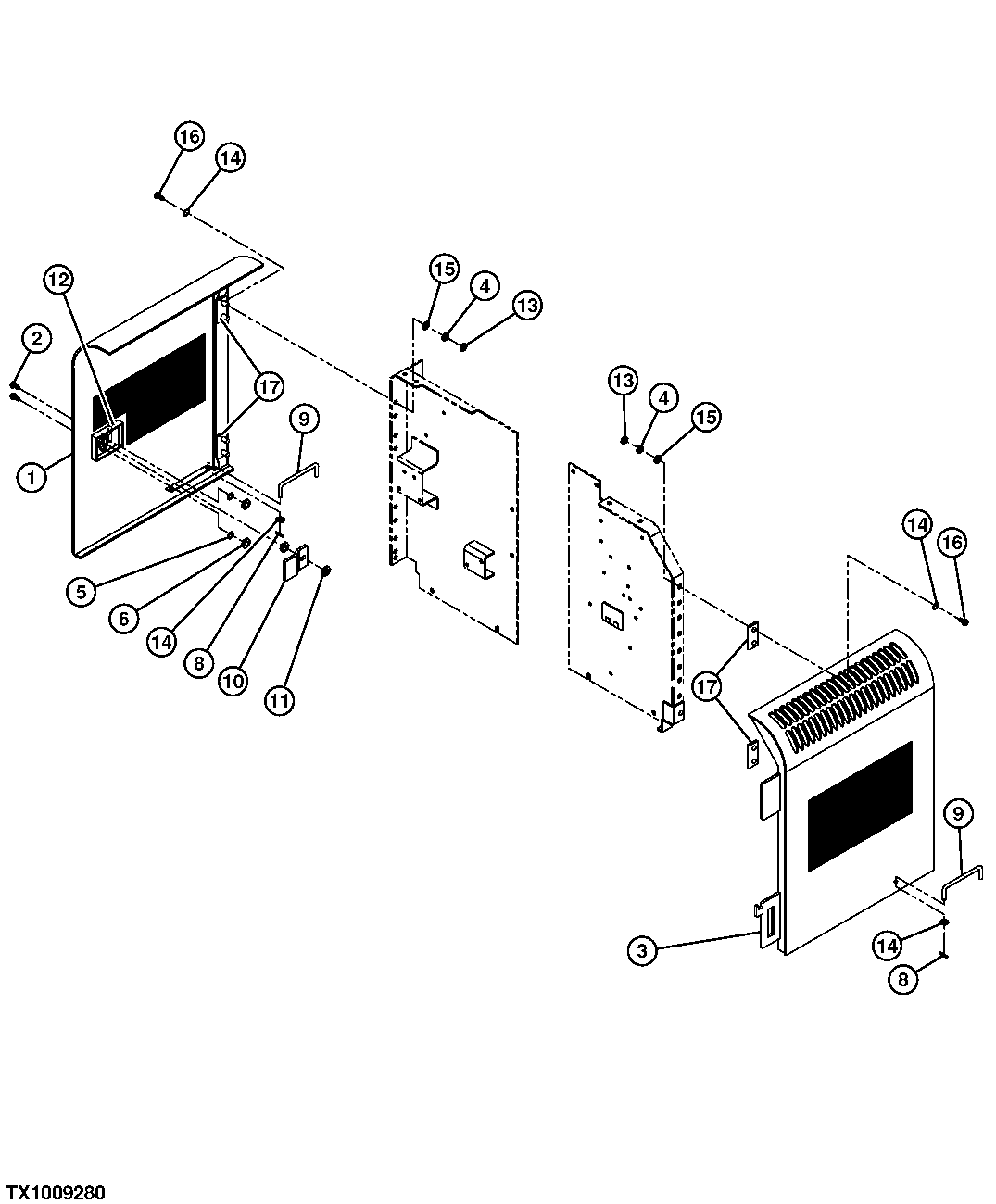

Запчасти John Deere 35C RTS 404 - RADIATOR AND HYDRAULIC PUMP COMPARTMENT ACCESS DOORS 1910 HOOD OR ENGINE ENCLOSURE

1

FFSB112768

Door

1шт.

2

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)(REAR)

2шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB106133)

2шт.

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB106133)

2шт.

3

FFSB112767

Door

1шт.

4

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

8шт.

5

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

2шт.

6

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

8

11M7017

Cotter Pin

3.200 X 32 mm ( FFSB110014 NLA) (SUB FOR FFSB108266)

2шт.

9

FFSB110011

Latch

2шт.

10

FFSB111739

Cam

1шт.

11

14M7141

Nut

M14 (SUB FOR FFSB108115)

2шт.

12

FFSB106270

Latch

1шт.

13

14M7275

Nut

M12 (SUB FOR FFSB107245)

8шт.

14

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

10шт.

15

24H1226

Washer

1/2" X 1-1/4" X 0.083" (SUB FOR FFSB108266)

8шт.

16

19M7403

Cap Screw

M12 X 35 (SUB FOR FFSB109213)

8шт.

17

FFSB115260

Hinge

4шт.
