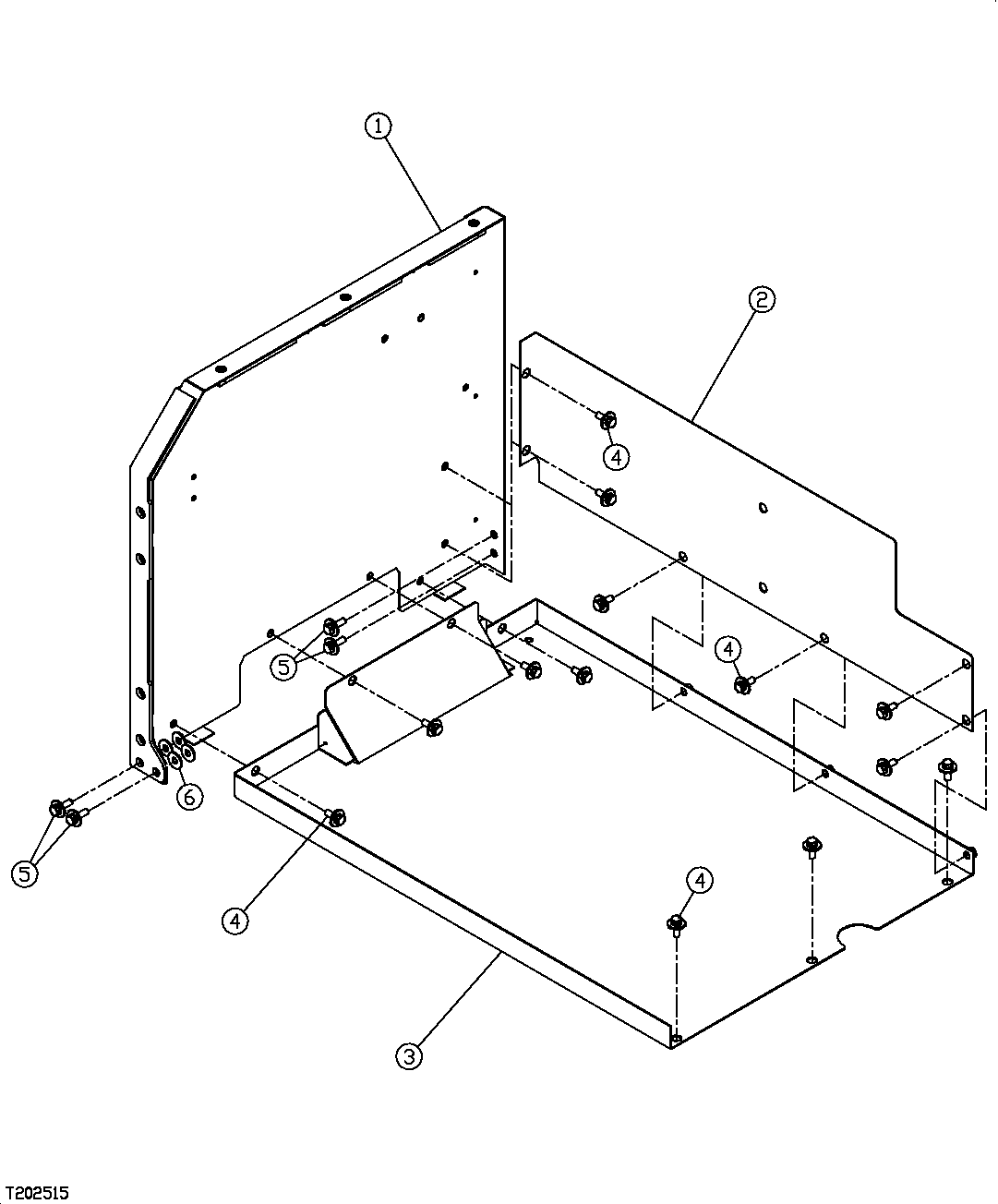

Запчасти John Deere 35C RTS 403 - LEFT FRONT STORAGE COMPARTMENT PANELS 1910 HOOD OR ENGINE ENCLOSURE

1

7044347

Panel

(SUB FOR FFSB112529)(LEFT FRONT)

1шт.

2

3093105

Cover

(SUB FOR FFSB112530)(REAR)

1шт.

3

7043671

Panel

(SUB FOR FFSB112531)(FLOOR)

1шт.

4

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB109178)

13шт.

12M7067

Lock Washer

12 mm

13шт.

24M7346

Washer

11 X 20 X 2 mm

13шт.

5

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB109179)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

6

24M7136

Washer

10.500 X 27 X 2 mm (SUB FOR FFSB107485)

4шт.
