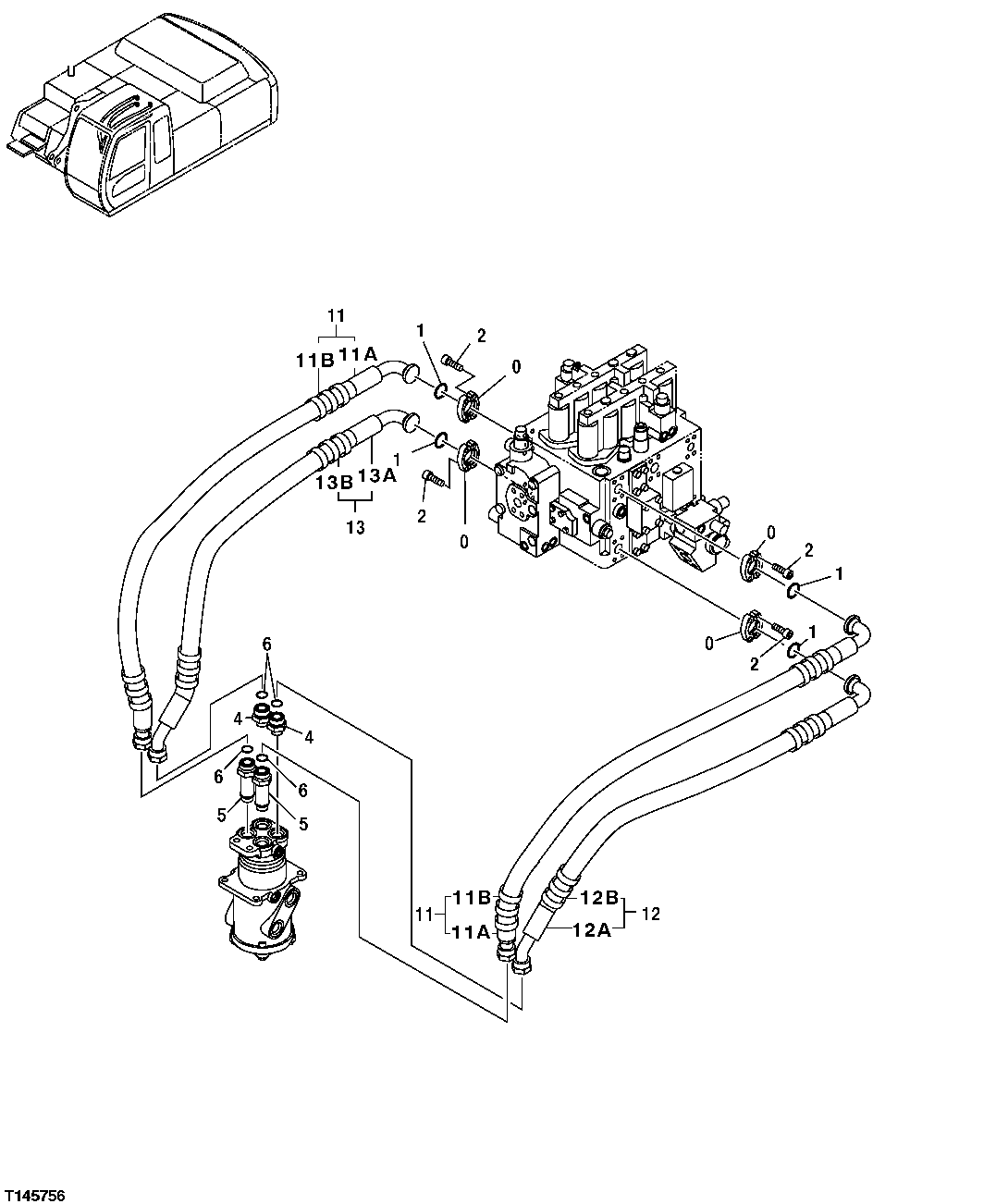

Запчасти John Deere 35C RTS 21 - CONTROL VALVE TO ROTARY MANIFOLD HOSES 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

H61354

Flange Fitting

8шт.

1

T78313

O-Ring

4шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

16шт.

4

A853168

Adapter Fitting

2шт.

4A

AT318035

O-Ring

(SUB FOR 4506424)(NOT ILLUSTRATED)

1шт.

5

4198411

Adapter Fitting

2шт.

5A

AT318035

O-Ring

(SUB FOR 4506424)(NOT ILLUSTRATED)

1шт.

6

T76938

O-Ring

4шт.

11

Hydraulic Hose

( 9163647 NLA)

2шт.

11A

4386286

Hydraulic Hose

2шт.

11B

Hose Guard

(MAKE FROM XHG-075, BULK MATERIA L, CUT TO LENGTH) ( 4327294 NLA)

2шт.

12

Hydraulic Hose

( 9163648 NLA)

1шт.

12A

4386287

Hydraulic Hose

1шт.

12B

Hose Guard

(MAKE FROM XHG-075, BULK MATERIA L, CUT TO LENGTH) ( 4327294 NLA)

2шт.

13

Hydraulic Hose

( 9163649 NLA)

1шт.

13A

4386288

Hydraulic Hose

1шт.

13B

Hose Guard

(MAKE FROM XHG-075, BULK MATERIA L, CUT TO LENGTH) ( 4327294 NLA)

2шт.
