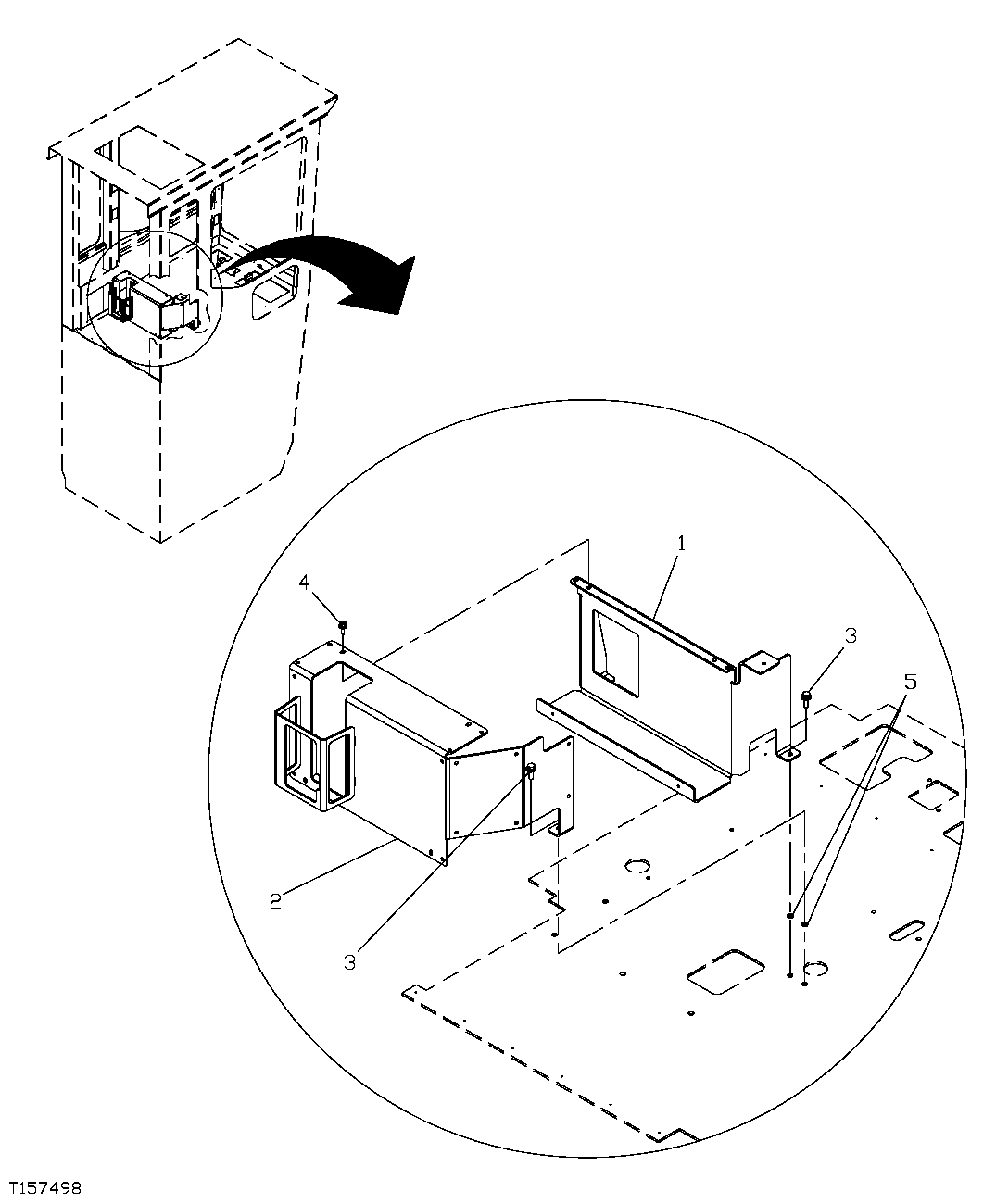

Запчасти John Deere 35C RTS 385 - REAR ENTRY CAB REAR CONSOLE BRACKET 1810C REAR ENTRY CAB

1

FFSB112201

Bracket

1шт.

2

FFSB112202

Bracket

1шт.

3

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

6шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB106133)

6шт.

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB106133)

6шт.

4

19M7513

Cap Screw

M8 X 30 (SUB FOR 19M7288 AND FFSB107866)

4шт.

24M7296

Washer

10.500 X 30 X 2.500 mm (SUB FOR FFSB107866)

4шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107866)

4шт.

5

FFSB107984

Spacer

5шт.
