369 - REAR ENTRY CAB CUP HOLDER AND MOUNTING BRACKET

Запчасти John Deere 35C RTS 369 - REAR ENTRY CAB CUP HOLDER AND MOUNTING BRACKET 1810C REAR ENTRY CAB

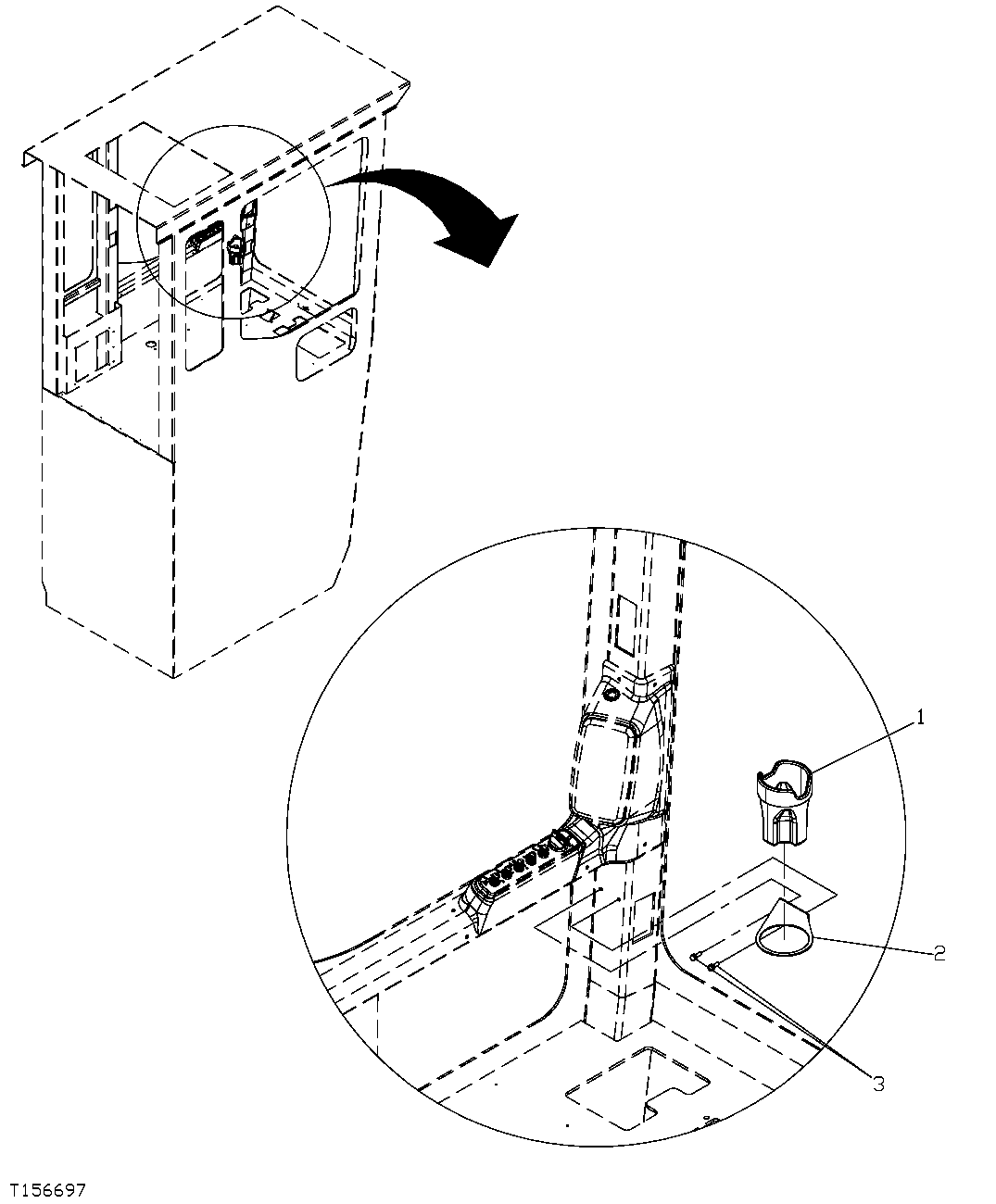

Схема запчастей John Deere 35C RTS - 369 - REAR ENTRY CAB CUP HOLDER AND MOUNTING BRACKET 1810C REAR ENTRY CAB
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT190780

Holder

(SUB FOR FFSB111279)

1шт.

2

FFSB111280

Bracket

1шт.

3

19M8425

Cap Screw

M6 X 16 (SUB FOR FFSB107135 AND J460616)

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm (SUB FOR FFSB107135 AND J460616)

2шт.

12M7006

Lock Washer

6 mm (SUB FOR FFSB107135 AND J460616)

2шт.
