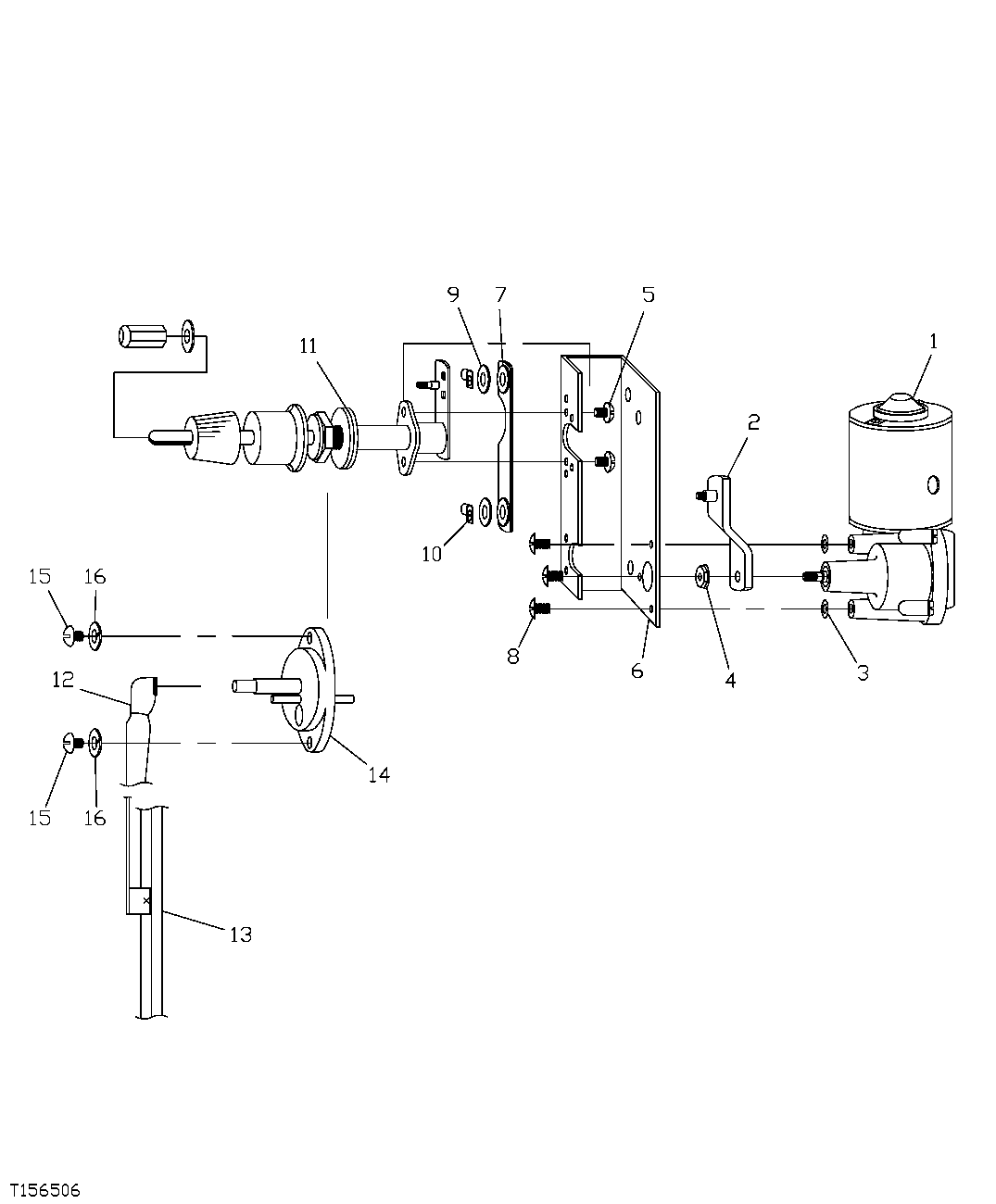

Запчасти John Deere 35C RTS 363 - REAR ENTRY CAB UPPER WINDSHIELD WIPER MOTOR, ARM, AND BLADE 1810C REAR ENTRY CAB

1

FFSB115016

Wiper Motor

SUB FOR FFSB107836

1шт.

2

FFSB102153

Wiper Arm

1шт.

3

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR FFSB107839

3шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

3шт.

4

14H785

Nut

5/16" SUB FOR FFSB109290

1шт.

5

21H1298

Screw

0.190" X 3/8" ( FFSB107837 NLA)

2шт.

12M7060

Washer

5.300 mm

2шт.

6

FFSB107841

Bracket

1шт.

7

FFSB107858

Link

1шт.

8

M42626

Bolt

( FFSB107838 NLA)

3шт.

9

FFSB107852

Spacer

2шт.

10

FFSB107840

Clip

2шт.

11

FFSB102154

Shaft

1шт.

12

FFSB107451

Wiper Arm

Contains Mounting Hardwar e, Not Serviced Separately

1шт.

13

FFSB107452

Wiper Blade

1шт.

14

FFSB107870

Adapter Fitting

1шт.

15

19H3005

Cap Screw

1/4" X 1" SUB FOR FFSB107868

2шт.

16

12H302

Lock Washer

1/4" SUB FOR FFSB109368

2шт.
