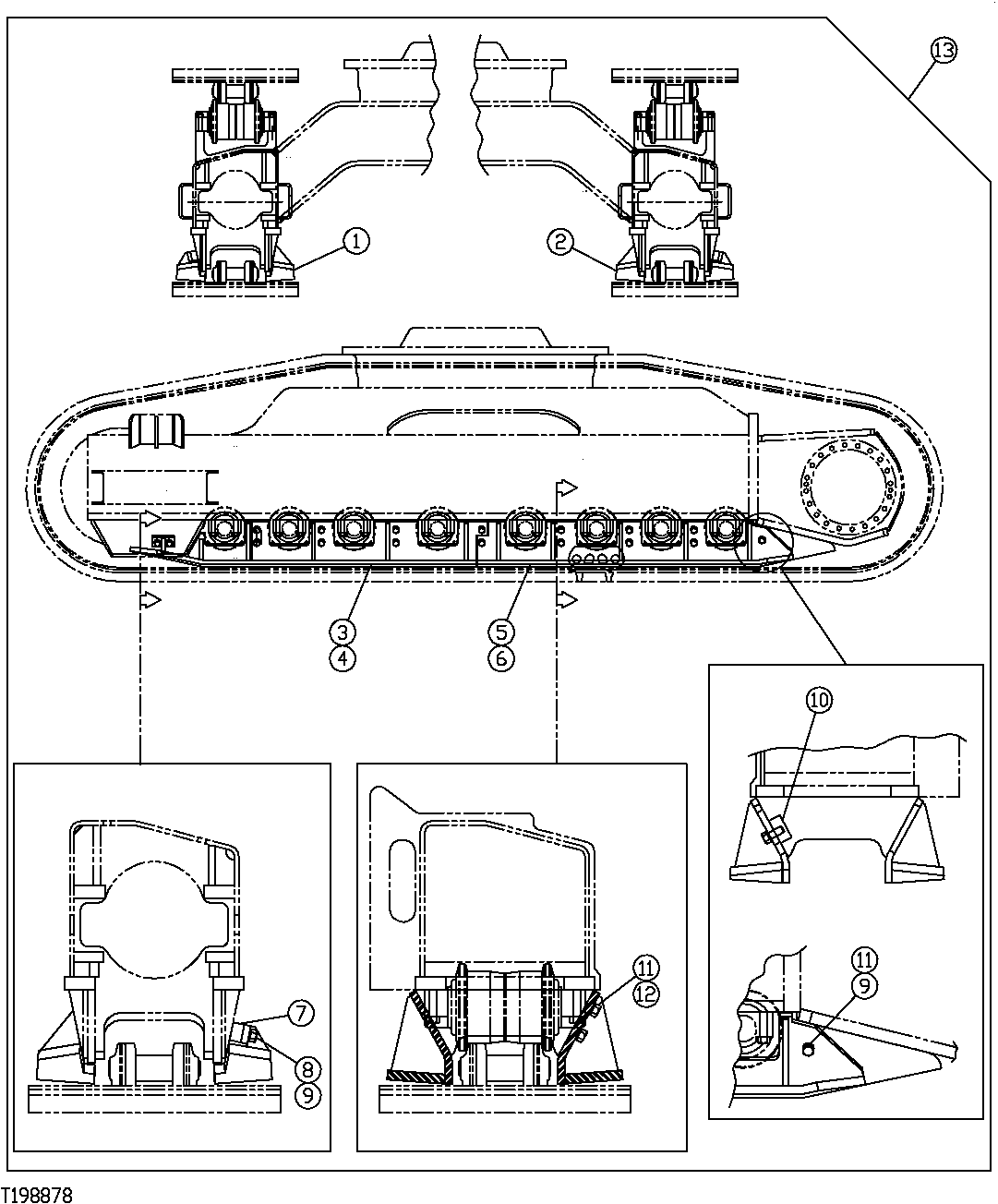

Запчасти John Deere 35C RTS 17 - ROCKGUARD (HIGH DRAWBAR) (SN. XXXXXX-) 0138 ROCK GUARDS AND TRACK GUIDES

1

Guard

(INNER - RIGHT) ( FFSB112505 NLA)

1шт.

2

Guard

(INNER -LEFT) ( FFSB112501 NLA)

1шт.

3

FFSB112509

Guard

Bolt On Outer - Left Front

1шт.

4

FFSB112515

Guard

Bolt On Outer - Right Front

1шт.

5

FFSB112512

Guard

Bolt On Outer - Left Rear

1шт.

6

FFSB112518

Guard

Bolt On Outer - Right Rear

1шт.

7

FFSB112500

Guard

Idler End (SUB FOR FFSB112621)

2шт.

8

19M8002

Cap Screw

M20 X 55 (SUB FOR FFSB106528)

4шт.

9

N231749

Washer

(SUB FOR FFSB107945 OR T33089)

6шт.

10

FFSB112500

Guard

Drive End (SUB FOR FFSB112621)

2шт.

11

19M8224

Cap Screw

M20 X 60 (SUB FOR FFSB100790)

30шт.

12

24M7365

Washer

21 X 50 X 6 mm (SUB FOR FFSB113443)

28шт.

13

FFSB112500

Guard

Rockguard Requires Welding

1шт.
