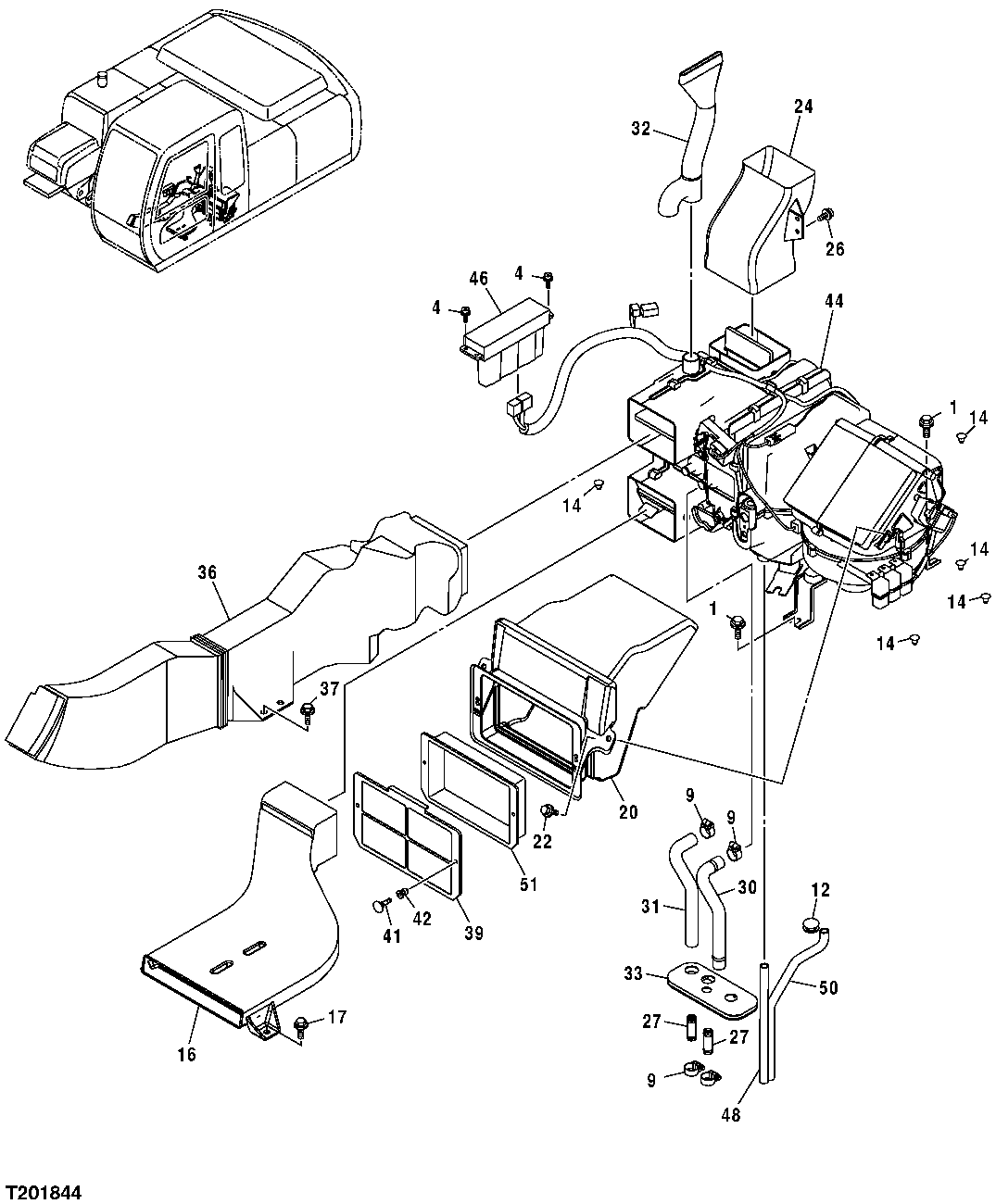

Запчасти John Deere 35C RTS 356 - SIDE ENTRY CAB HVAC UNIT AIR DUCTS, RELAYS, AND HOSES 1830B SIDE ENTRY CAB HEATING AND AIR CONDITIONING

1

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

4

21M7265

Screw

M5 X 12

4шт.

9

AA34965

Hose Clamp

4шт.

12

4205084

Grommet

2шт.

14

4280359

Plug

6шт.

16

4426155

Air Duct

1шт.

17

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

20

4426162

Air Duct

1шт.

22

19M7881

Screw

M8 X 20

2шт.

12M7065

Lock Washer

8 mm

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

24

4426157

Air Duct

1шт.

26

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

27

4347396

Fitting

2шт.

30

Radiator Hose

(SUB 4430872)( 4430873 NLA)

1шт.

31

4430872

Hose

1шт.

32

4436441

Air Duct

1шт.

33

2044922

Bushing

1шт.

36

4426158

Air Duct

1шт.

37

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

39

4441139

Grille

1шт.

41

4441059

Clip

2шт.

42

4441061

Clip

2шт.

44

4609049

Air Conditioner

(SUB FOR 4426047)

1шт.

4609676

Heater

(SUB FOR 4450707)

1шт.

45

4610412

Wiring Harness

(NOT ILLUSTRATED)

1шт.

46

4713662

Air Heater Controller

SUB FOR 4692239 Use With Air Conditioner and Heater

1шт.

4692240

Air Heater Controller

SUB FOR 4450708 Use With Heater

1шт.

48

TY24399

Bulk Hose

(FOR USE WITH AIR CONDITIONER) (CTL) 275MM

1шт.

50

4430871

Hose

(FOR USE WITH AIR CONDITIONER)

1шт.

51

4S00683R

Filter

(SUB FOR 4484453)(RETURN AIR FILTER)

1шт.
