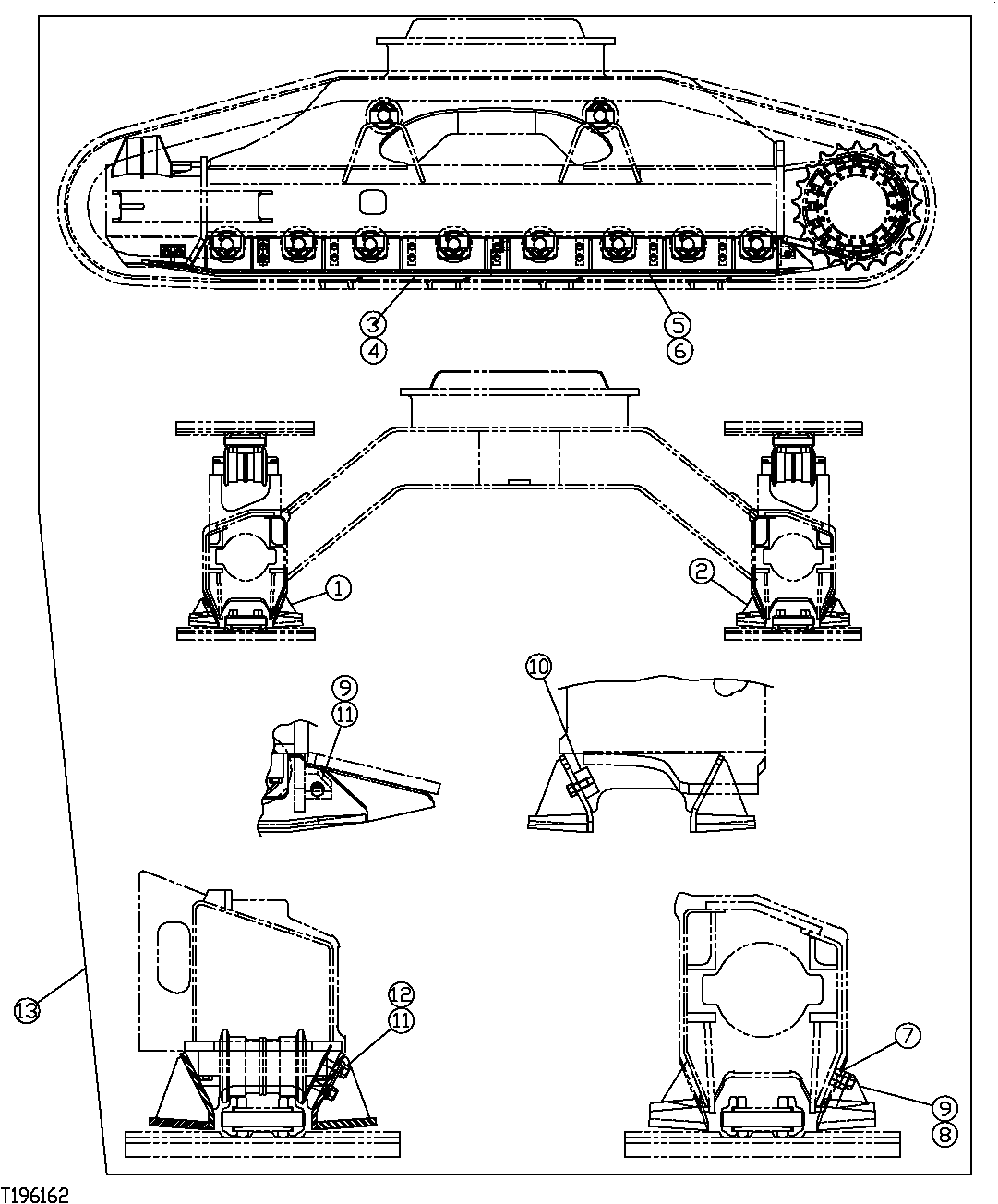

Запчасти John Deere 35C RTS 16 - ROCKGUARD (STANDARD DRAWBAR) (SN. 350001- ) 0138 ROCK GUARDS AND TRACK GUIDES

1

FFSB111823

Guard

(INNER - RIGHT)

1шт.

2

FFSB111820

Guard

Inner Left

1шт.

3

FFSB111826

Guard

Bolt On Outer - Left Front

1шт.

4

FFSB111832

Guard

Bolt On Outer - Right Front

1шт.

5

FFSB111829

Guard

Bolt On Outer - Left Rear

1шт.

6

FFSB111835

Guard

Bolt On Outer - Right Rear

1шт.

7

FFSB111241

Manifold

Idler End

2шт.

8

T116332

Bolt

M18 X 40 (SUB FOR FFSB108707)

4шт.

9

24M7318

Washer

19 X 34 X 3 mm (SUB FOR FFSB108729)

6шт.

10

FFSB111240

Manifold

Drive End

2шт.

11

J931855

Screw

(SUB FOR FFSB109281)

34шт.

12

FFSB113420

Washer

32шт.

13

FFSB111819

Guard

Rockguard Requires Welding

1шт.
