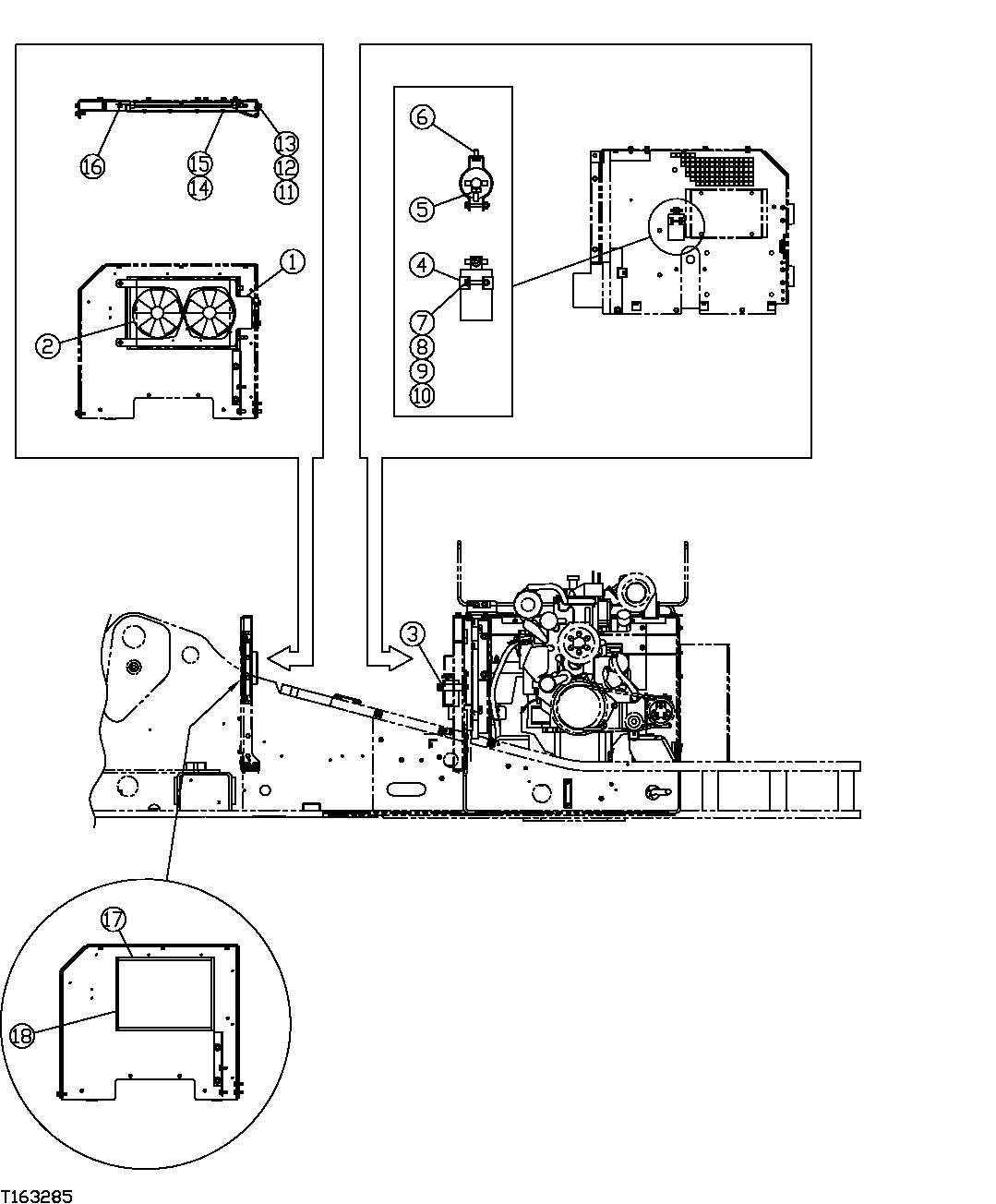

Запчасти John Deere 35C RTS 310 - A/C CONDENSER AND RECEIVER-DRYER (WITH POWER CONDENSER) 1830 HEATING & AIR CONDITIONING

1

FF202428

Bracket

SUB FOR FFSB111906

1шт.

2

FFSB112018

Vapor Condenser

1шт.

3

DH400518

Receiver-Dryer

SUB FOR FFSB110327

1шт.

4

DH300123

Bracket

SUB FOR FFSB110328

1шт.

5

Pressure Switch

AT322233 NLA

1шт.

DH400736

Pressure Switch

SUB FOR FFSB110572

1шт.

6

19M9200

Screw

M10 X 20 SUB FOR FFSB107365

1шт.

24M7096

Washer

10.500 X 18 X 1.600 mm SUB FOR FFSB107365

1шт.

7

19M8713

Screw

M6 X 45 SUB FOR FFSB110136

1шт.

8

12M7006

Lock Washer

6 mm SUB FOR FFSB107439

1шт.

9

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR FFSB107438

1шт.

10

14M7303

Flange Nut

M6 SUB FOR FFSB108288

1шт.

11

14M7274

Nut

M10 SUB FOR FFSB107411

2шт.

12

12M7066

Lock Washer

10 mm SUB FOR FFSB107409

2шт.

13

19M7402

Cap Screw

M10 X 25 SUB FOR FFSB106880

2шт.

14

12H302

Lock Washer

1/4" SUB FOR FFSB109368

8шт.

15

21H1142

Screw

1/4" X 1/2" SUB FOR FFSB111912

8шт.

16

19M7938

Cap Screw

M10 X 20 SUB FOR FFSB107124

2шт.

17

Seal

SUB (1) FFSB111979; BULK MATERIAL

2шт.

18

Seal

SUB (1) FFSB111979; BULK MATERIAL

2шт.
