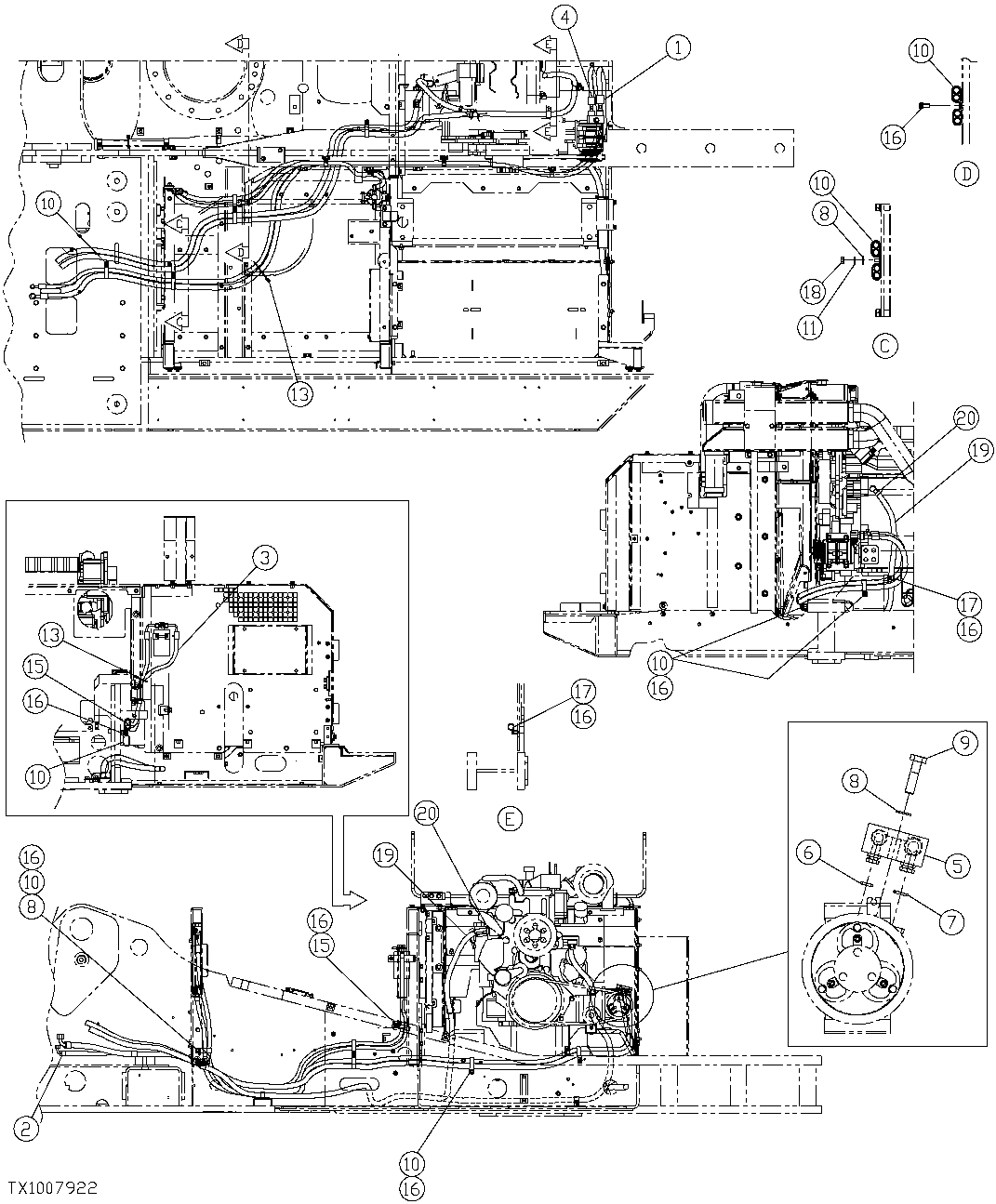

Запчасти John Deere 35C RTS 309 - Air Conditioning Hoses And Mounting Clamps (With Power Condenser) 1830 HEATING & AIR CONDITIONING

1

FFSB113034

Refrigerant Hose

Compressor to Cab

1шт.

2

FFSB113058

Refrigerant Hose

Receiver Dryer to Evaporator

1шт.

3

FFSB113071

Refrigerant Hose

Condenser to Receiver Dryer

1шт.

4

FFSB113072

Refrigerant Hose

Compressor To Condenser

1шт.

6

957366

O-Ring

SUB FOR FFSB109692 AND 4350207

1шт.

7

4297380

O-Ring

SUB FOR 4622346, 4674883, FF SB109690, 4350206 OR 4509180

1шт.

8

24M7096

Washer

10.500 X 18 X 1.600 mm SUB FOR FFSB107709

5шт.

9

19M8260

Cap Screw

M10 X 40 SUB FOR FFSB113059

1шт.

10

FFSB107516

Clamp

5шт.

11

12M7066

Lock Washer

10 mm SUB FOR FFSB107409

3шт.

13

H77698

Tie Band

2шт.

15

FFSB102828

Clip

2шт.

16

19M7402

Cap Screw

M10 X 25 SUB FOR FFSB107131

9шт.

12M7066

Lock Washer

10 mm SUB FOR FFSB107131

9шт.

17

XCL-17

Hose Clamp

SUB FOR FFSB105439

2шт.

18

14M7274

Nut

M10 SUB FOR FFSB107411

1шт.

19

FFSB113327

Hose

2шт.

20

FFSB102829

Clamp

2шт.
