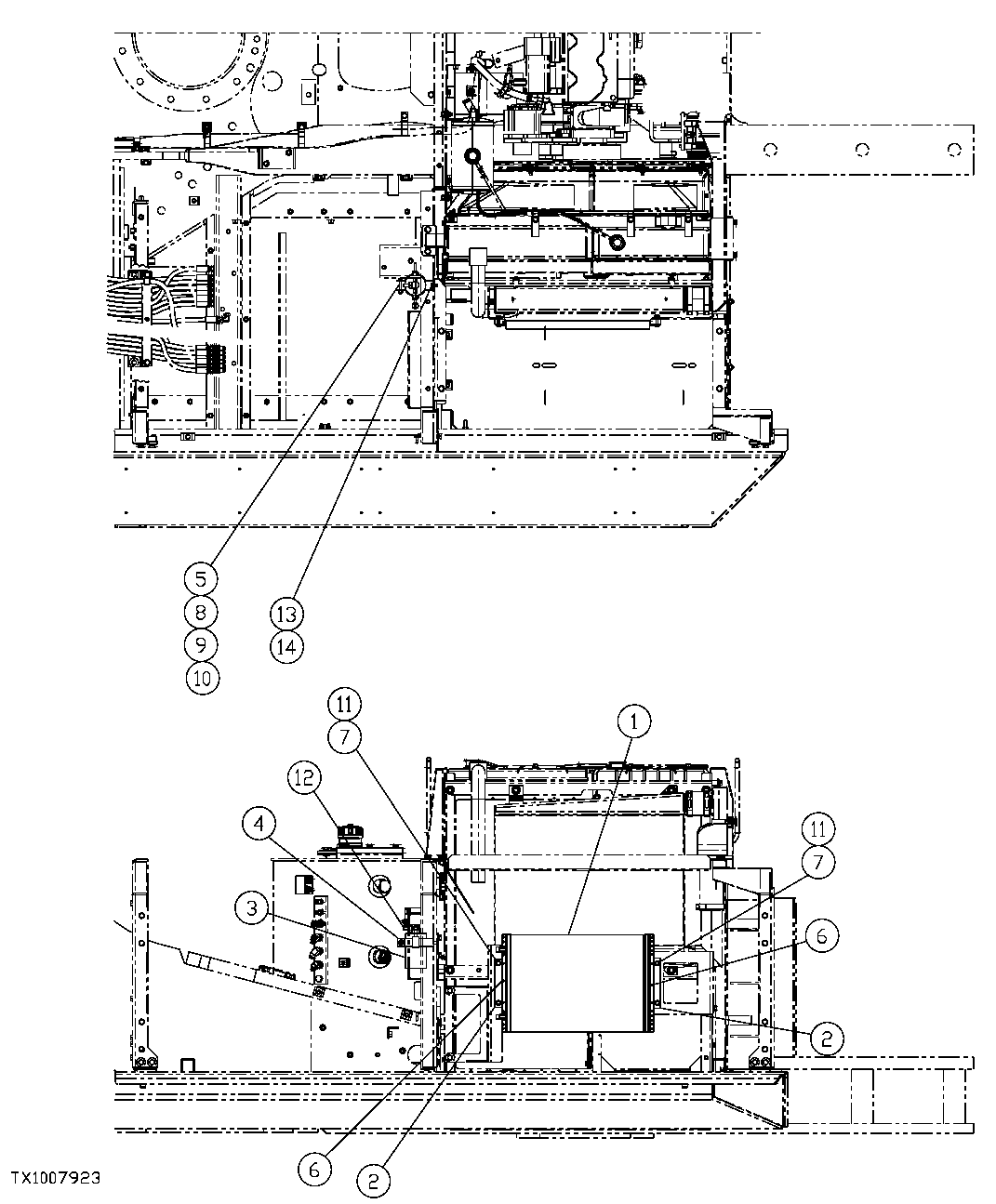

Запчасти John Deere 35C RTS 308 - AIR CONDITIONING CONDENSER AND RECEIVER-DRYER 1830 HEATING & AIR CONDITIONING

1

DH400538

Vapor Condenser

(SUB FOR FFSB110319)

1шт.

2

DH400535

Bracket

(SUB FOR FFSB110989)

2шт.

3

DH400518

Receiver-Dryer

(SUB FOR FFSB110327)

1шт.

4

DH300123

Bracket

(SUB FOR FFSB110328)

1шт.

5

19M8713

Screw

M6 X 45 (SUB FOR FFSB110136)

1шт.

6

21M7271

Screw

M5 X 16 (SUB FOR FFSB108268)

6шт.

7

19M8008

Cap Screw

M8 X 35 (SUB FOR FFSB110435)

4шт.

8

12M7006

Lock Washer

6 mm (SUB FOR FFSB107439)

1шт.

9

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107438)

2шт.

10

14M7303

Flange Nut

M6 (SUB FOR FFSB108288)

1шт.

11

12M7065

Lock Washer

8 mm (SUB FOR FFSB103370)

4шт.

12

Pressure Switch

( AT322233 NLA)

1шт.

DH400736

Pressure Switch

(SUB FOR FFSB110572)

1шт.

13

19M9200

Screw

M10 X 20

1шт.

14

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.
