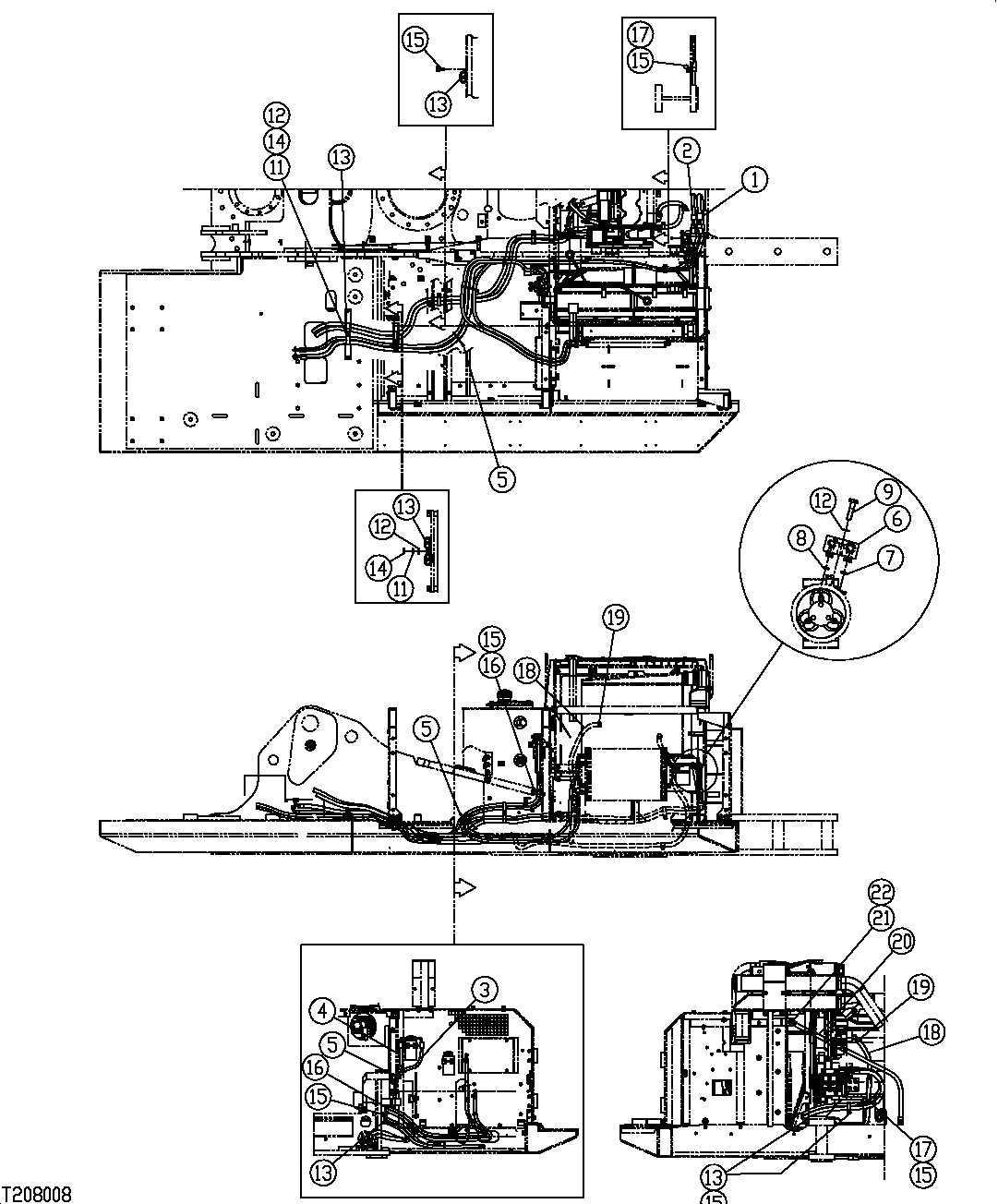

Запчасти John Deere 35C RTS 306 - AIR CONDITIONER HOSES AND MOUNTING CLAMPS 1830 HEATING & AIR CONDITIONING

1

FFSB113034

Refrigerant Hose

CAB TO COMPRESSOR

1шт.

2

FFSB113035

Refrigerant Hose

Compressor To Condenser

1шт.

3

FFSB113057

Refrigerant Hose

Condenser to Dryer

1шт.

4

FFSB113058

Refrigerant Hose

1шт.

5

R44302

Tie Band

SUB FOR FFSB108110

3шт.

6

FFSB105468

Adapter Fitting

1шт.

7

4622346

O-Ring

SUB FOR 4674883, FFSB10 9690, 4350206 OR 4509180

1шт.

8

M800650

Packing

SUB FOR FFSB109692, 4350207 OR 957366

1шт.

9

19M8260

Cap Screw

M10 X 40 SUB FOR FFSB113059

2шт.

11

12M7066

Lock Washer

10 mm SUB FOR FFSB107409

1шт.

12

24M7096

Washer

10.500 X 18 X 1.600 mm SUB FOR FFSB107709

2шт.

13

FFSB107516

Clamp

8шт.

14

14M7274

Nut

M10 SUB FOR FFSB107411

1шт.

15

19M7402

Cap Screw

M10 X 25 SUB FOR FFSB107131

6шт.

16

FFSB102828

Clip

2шт.

17

XCL-17

Hose Clamp

SUB FOR FFSB105439

2шт.

18

FFSB113327

Hose

2шт.

19

FFSB102829

Clamp

2шт.

20

3092862

Latch

SUB FOR FFSB113567

1шт.

21

19M8035

Cap Screw

M16 X 35 SUB FOR FFSB113585

2шт.

22

12H294

Lock Washer

5/8" SUB FOR FFSB105798

2шт.
