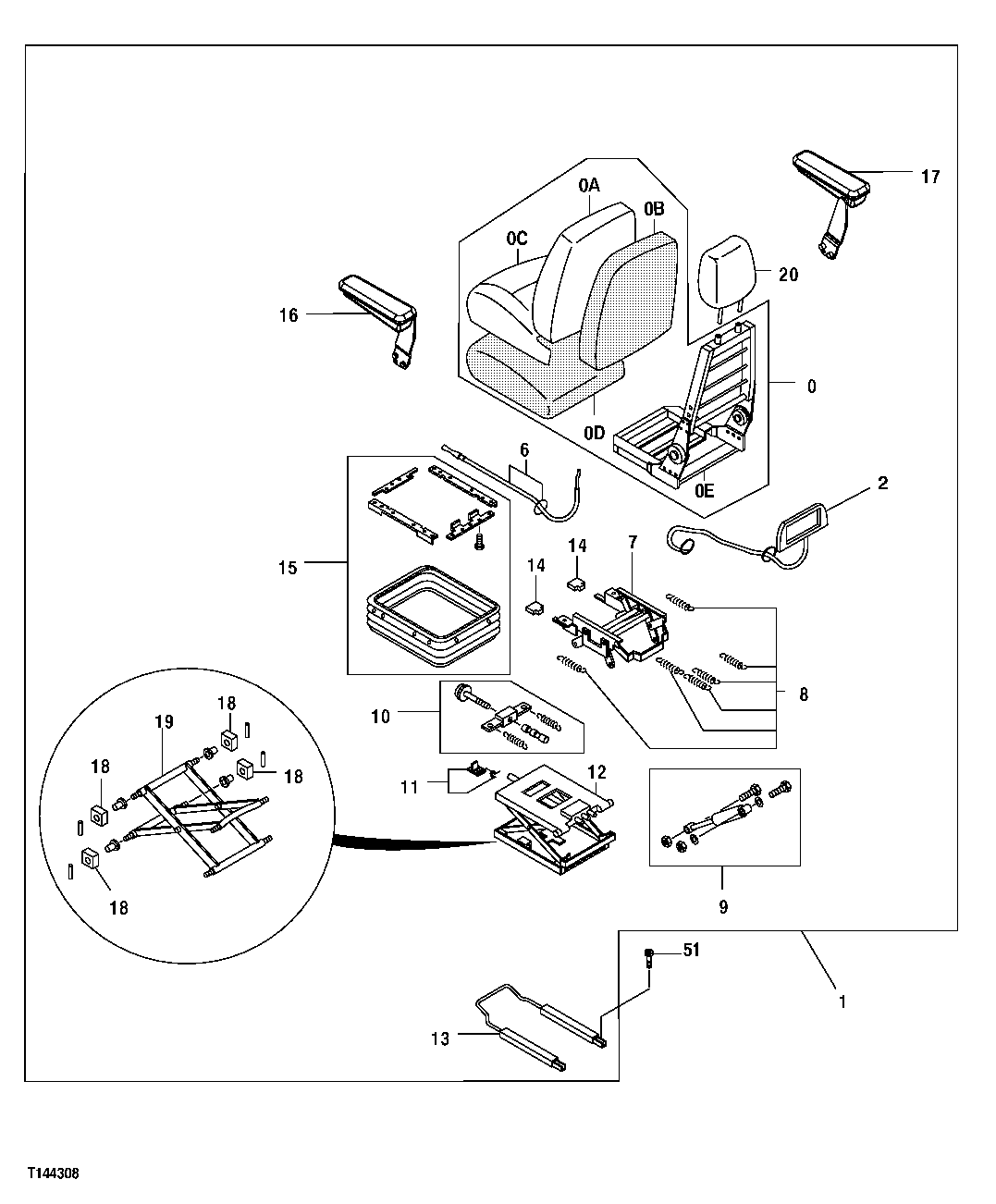

Запчасти John Deere 35C RTS 290 - SEAT AND SEAT SUSPENSION 1821 SEAT AND SEAT BELTS

0

4486189R

Seat

Upper SUB FOR AT195286

1шт.

0A

4486190R

Cushion Cover

SUB FOR AT309263

1шт.

0B

4392796R

Pad

SUB FOR AT309264

1шт.

0C

AT403886

Cushion Cover

Fabric SUB FOR AT195278 AND 4486191R

1шт.

0D

4392798R

Pad

SUB FOR AT195279

1шт.

0E

Frame

1шт.

1

4458290R

Seat

Fabric SUB FOR AT193964

1шт.

2

AT195284

Seat Kit

Air Lumbar Kit

1шт.

6

4392800R

Cable

SUB FOR AT216522

1шт.

7

4392801R

Stand

Recliner Cable Kit SUB FOR 4392801

1шт.

8

4370199R

Spring

SUB FOR AT195287

1шт.

9

4392803R

Torsional Damper

Kit SUB FOR 4392803

1шт.

10

4392804R

Adjuster

Height Riser Spring SUB FOR 4392804

1шт.

11

4392805R

Stop

SUB FOR 4392805 OR AT322189

1шт.

12

4392806

Seat Suspension

1шт.

13

4660734R

Adjuster

SUB FOR 4392807, 4392807R OR 4660734

1шт.

14

AT329374

Handle

Knob SUB FOR AT216532 OR 4392808R

1шт.

15

4392809R

Cover

Suspension Cover Kit SUB FOR 4392809

1шт.

16

AT329375

Armrest Kit

LH SUB FOR AT199748

1шт.

17

AT329376

Armrest Kit

RH SUB FOR AT199749

1шт.

18

4392812R

Bushing

Kit SUB FOR 4392812

1шт.

19

4392813R

Link

Lever/Center Pivot Kit SUB FOR 4392813

1шт.

20

4486192R

Head Restraint

SUB FOR AT195280

1шт.

51

19M7647

Screw

M8 X 16

4шт.
