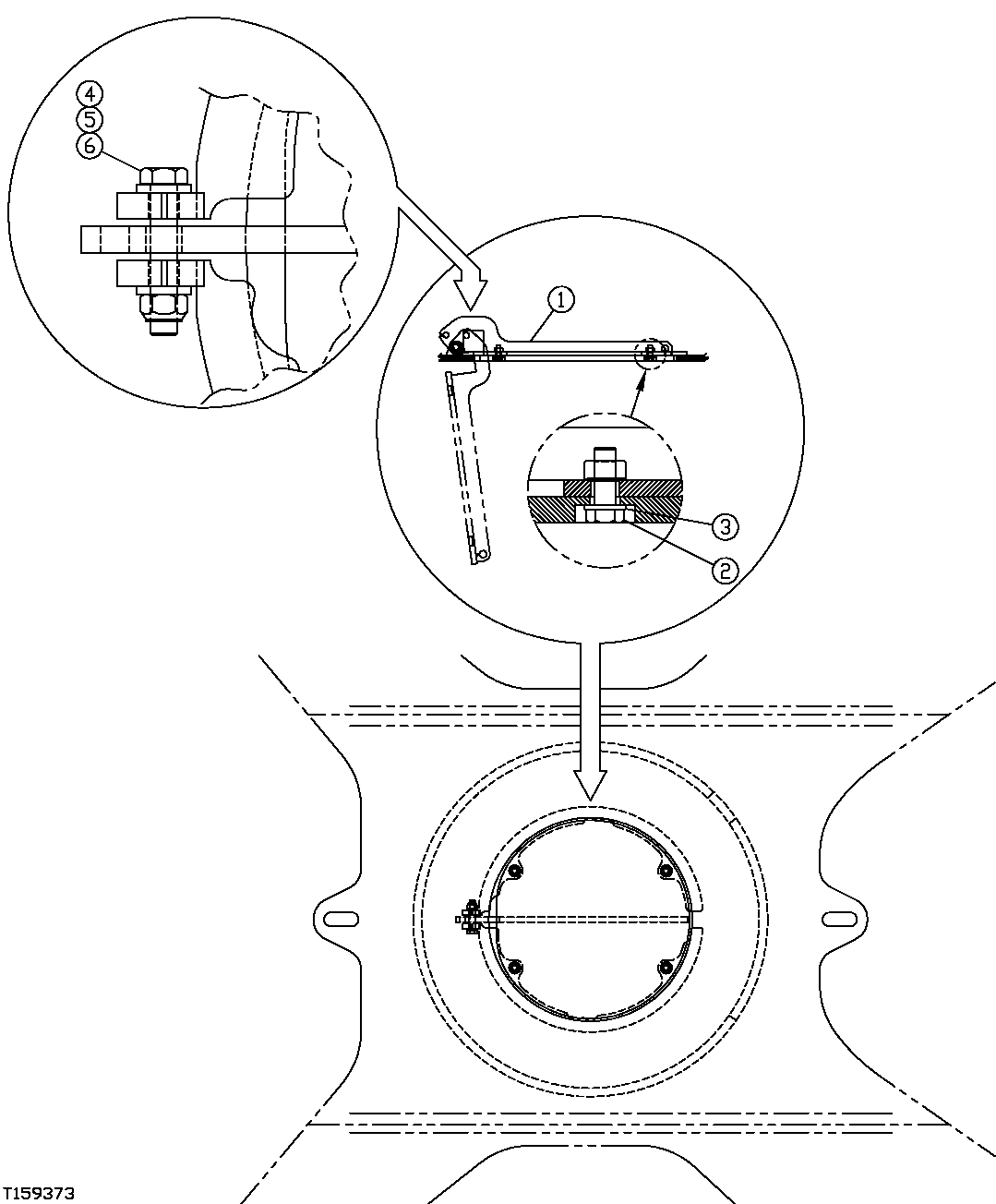

Запчасти John Deere 35C RTS 7 - TRACK FRAME BOTTOM COVER (HIGH DRAWBAR) 0131 TRACK FRAMES

1

FFSB111701

Guard

(25.4MM) High Drawbar

1шт.

FF110559

Guard

(25.4MM) SUB FOR FFSB114365 High Drawbar

1шт.

2

19M7397

Cap Screw

M16 X 50 (SUB FOR FFSB109199)

4шт.

19M7344

Cap Screw

M16 X 65 (SUB FOR FFSB109201)

4шт.

3

24M7338

Washer

17 X 30 X 3 mm (SUB FOR FFSB107140)

4шт.

4

19M7969

Cap Screw

M20 X 110 (SUB FOR FFSB112691)

1шт.

5

J222020

Washer

(SUB FOR FFSB110791)

2шт.

6

14M7277

Nut

M20 (SUB FOR FFSB112692)

1шт.
