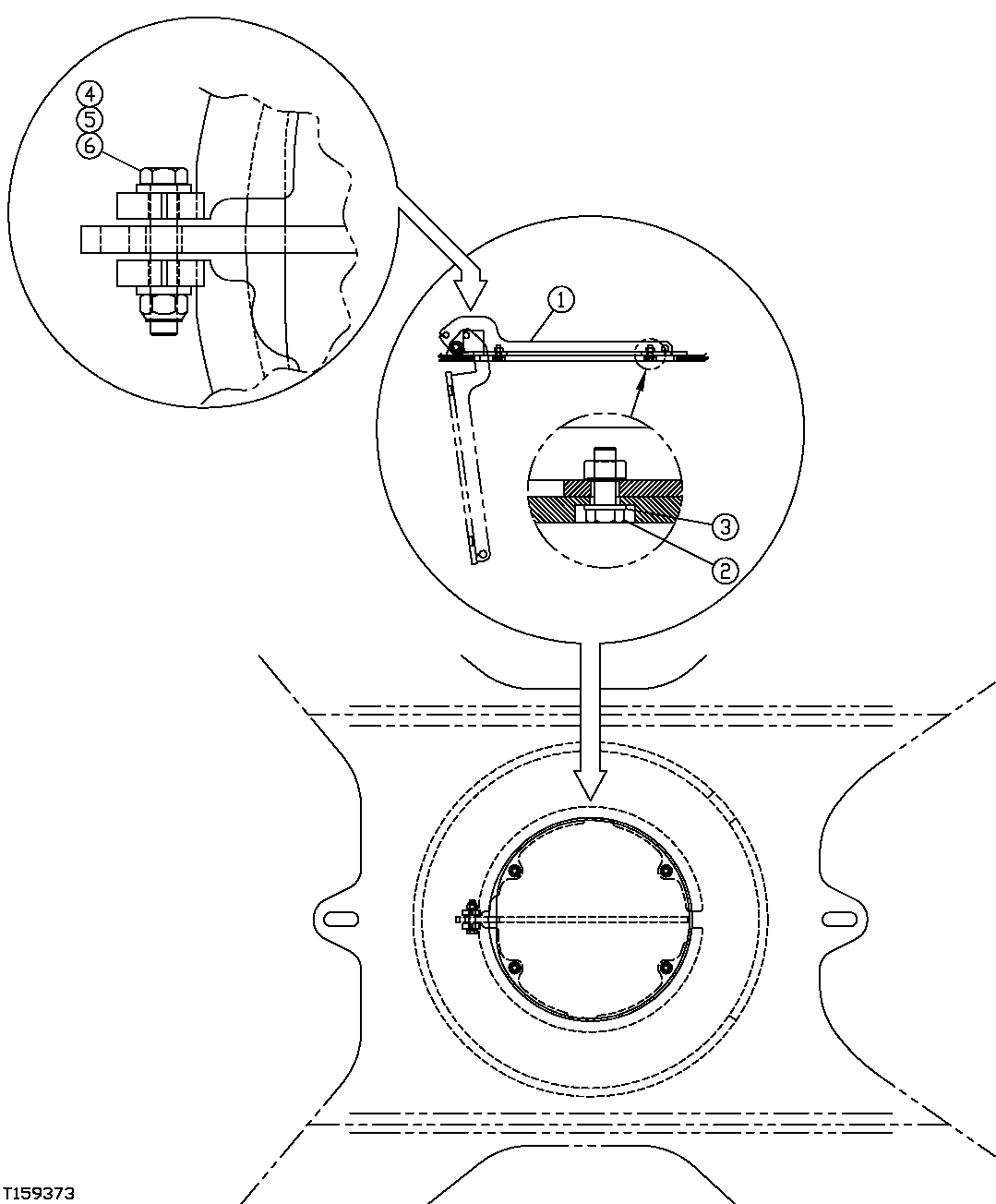

Запчасти John Deere 35C RTS 6 - TRACK FRAME BOTTOM COVER (STANDARD DRAWBAR) 0131 TRACK FRAMES

1

FFSB111116

Guard

(19.1MM) Standard Drawbar

1шт.

FF110218

Guard

SUB FOR FFSB114367 (STA NDARD DRAWBAR) (19.1MM)

1шт.

2

19M7396

Cap Screw

M16 X 45 (SUB FOR FFSB108298)

4шт.

19M8635

Cap Screw

M16 X 60 (SUB FOR FFSB109200)

4шт.

3

24M7338

Washer

17 X 30 X 3 mm (SUB FOR FFSB107140)

4шт.

4

19M7969

Cap Screw

M20 X 110 (SUB FOR FFSB112691)

1шт.

5

J222020

Washer

(SUB FOR FFSB110791)

2шт.

6

14M7277

Nut

M20 (SUB FOR FFSB112692)

1шт.
