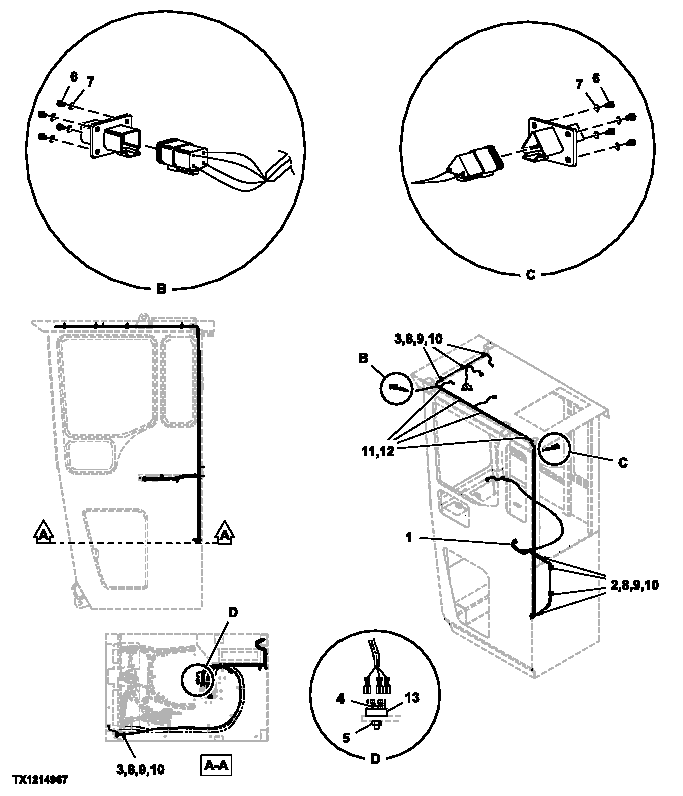

Запчасти John Deere 35C RTS 255 - REAR ENTRY CAB UPPER WIRING HARNESS 1674C REAR ENTRY CAB WIRING HARNESS AND SWITCHES

1

FFSB111971

Wiring Harness

1шт.

2

AT119290

Hose Clamp

(SUB FOR FFSB105440)

4шт.

3

H75541

Clamp

(SUB FOR FFSB105452)

4шт.

4

21M7251

Screw

M5 X 25 (SUB FOR FFSB112193)

4шт.

5

14M7297

Nut

M5 (SUB FOR FFSB105284)

1шт.

6

21M7394

Screw

M3 X 10 (SUB FOR FFSB102282)

8шт.

7

24H1914

Washer

1/8" X 5/16" X 0.032" (SUB FOR FFSB108286)

8шт.

8

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

8шт.

9

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

8шт.

10

14M7274

Nut

M10 (SUB FOR FFSB107411)

8шт.

11

XCL-14

Hose Clamp

(SUB FOR FFSB104506)

4шт.

12

19M7402

Cap Screw

M10 X 25 (SUB FOR FFSB107365)

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107365)

4шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107365)

4шт.

13

FFSB107890

Rectifier

Diode Bridge

1шт.
