248 - GROUND STRAP FOR SIDE ENTRY CAB WITH 7 INCH RISER

Запчасти John Deere 35C RTS 248 - GROUND STRAP FOR SIDE ENTRY CAB WITH 7 INCH RISER 1674B SIDE ENTRY CAB WIRING HARNESS COMPONENT

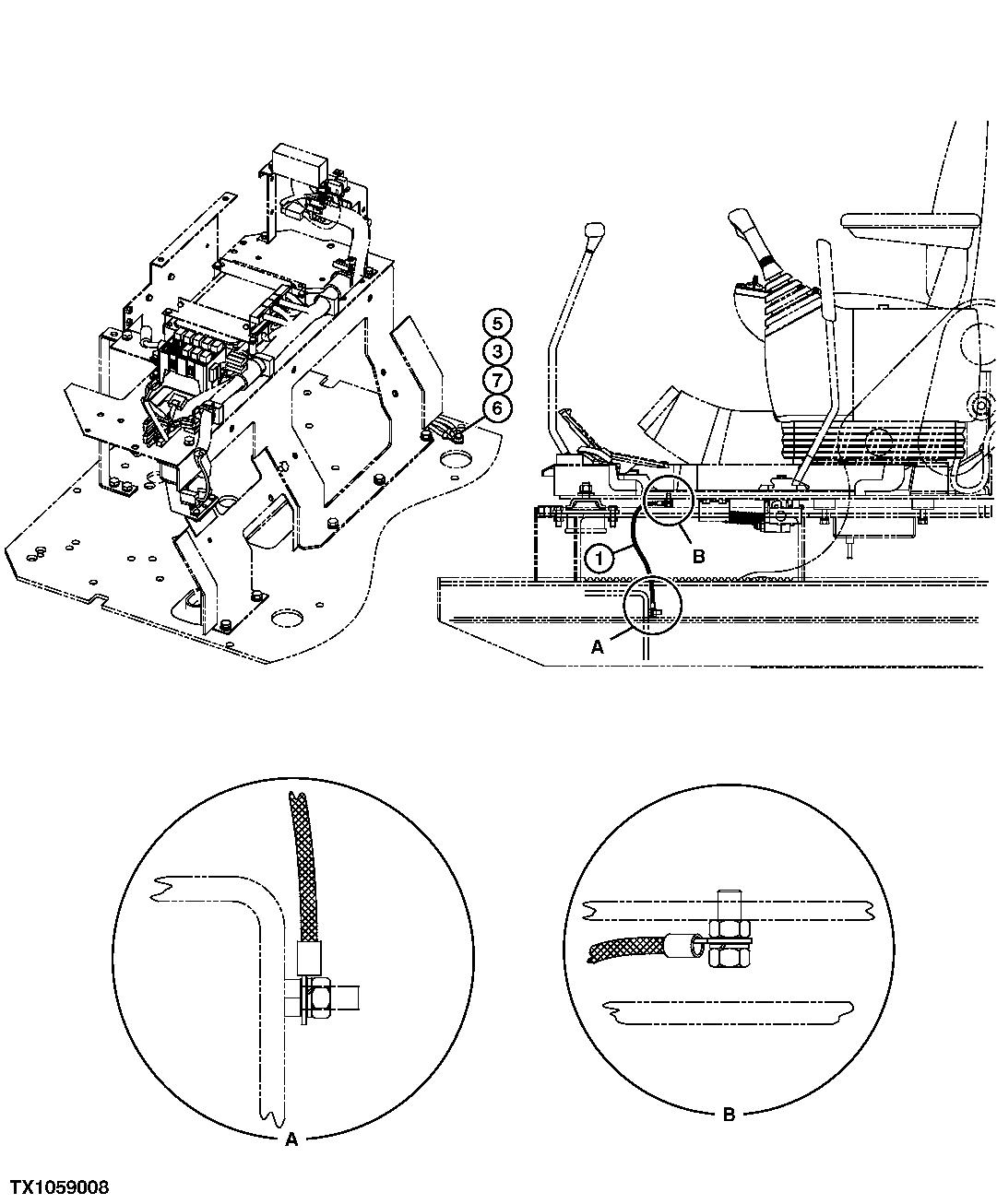

Схема запчастей John Deere 35C RTS - 248 - GROUND STRAP FOR SIDE ENTRY CAB WITH 7 INCH RISER 1674B SIDE ENTRY CAB WIRING HARNESS COMPONENT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FFSB111922

Ground Cable

(400 MM)

1шт.

2

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

2шт.

3

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

4

19M7167

Cap Screw

M10 X 25 (SUB FOR FFSB108726)

1шт.

5

19M7358

Cap Screw

M10 X 40 (SUB FOR J901040)

1шт.

6

12M7034

Lock Washer

10.500 mm (SUB FOR FF105893)

1шт.

7

12M7033

Lock Washer

10.500 mm (SUB FOR FF105894)

1шт.
