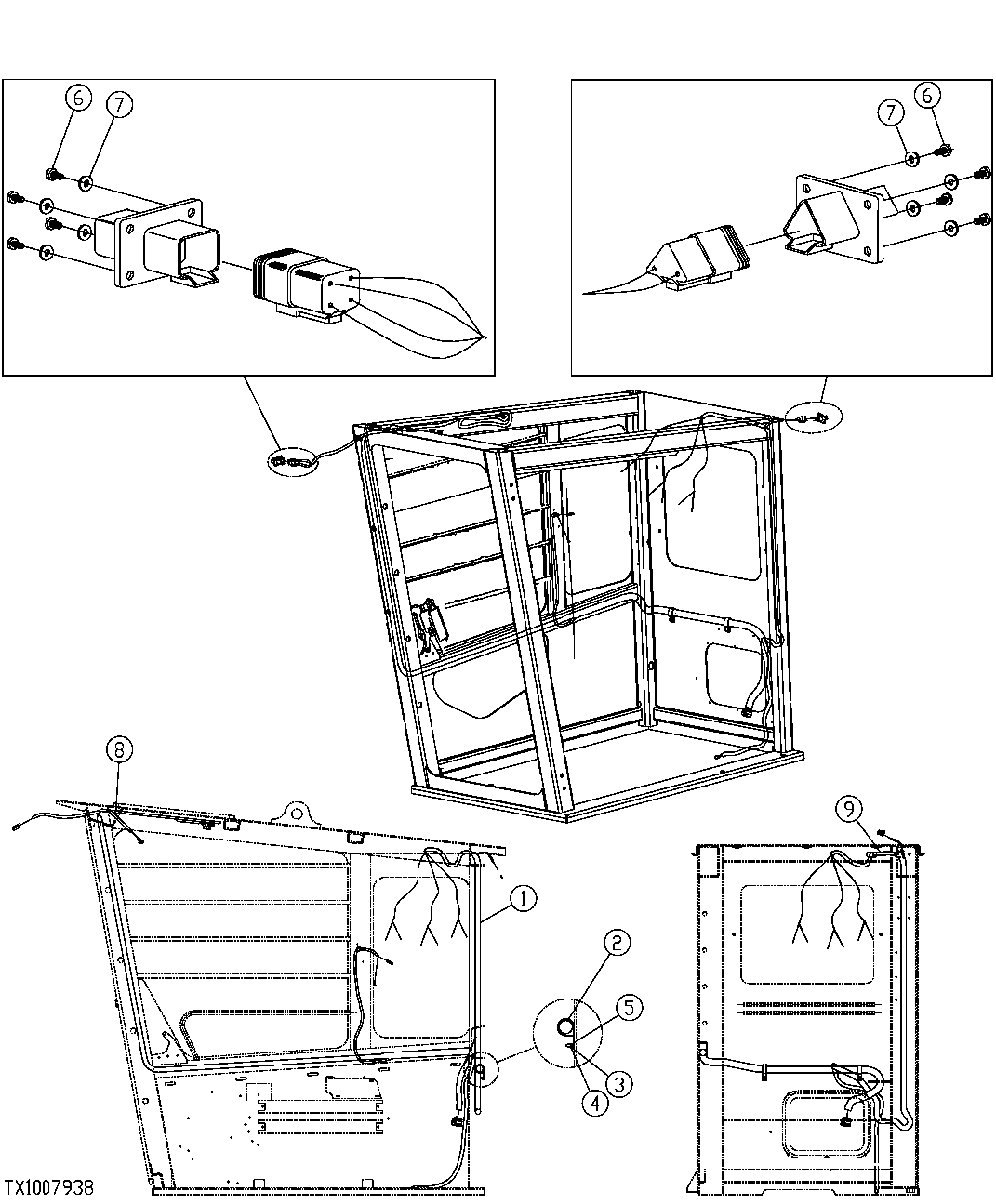

Запчасти John Deere 35C RTS 246 - FORESTRY AND DELIMBER CAB UPPER WIRING HARNESS 1674B SIDE ENTRY CAB WIRING HARNESS COMPONENT

1

FFSB109949

Wiring Harness

1шт.

2

AT119290

Hose Clamp

(SUB FOR FFSB105440)

2шт.

3

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

2шт.

4

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

5

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

2шт.

6

21M7394

Screw

M3 X 10 (SUB FOR FFSB108282)

8шт.

7

24H1914

Washer

1/8" X 5/16" X 0.032" (SUB FOR FFSB108286)

8шт.

8

FFSB111099

Grommet

1шт.

9

4288445

Plug

(SUB FOR FFSB111357)

1шт.
