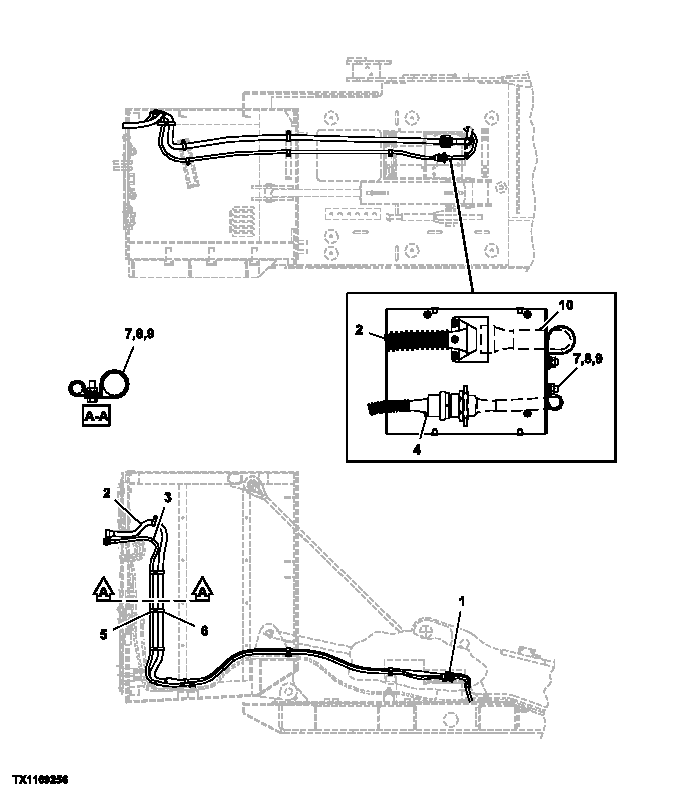

Запчасти John Deere 35C RTS 244 - SIDE ENTRY CAB WIRING HARNESS EXTENSION FOR 48 INCH RISER 1674B SIDE ENTRY CAB WIRING HARNESS COMPONENT

1

Circuit Box

FFSB110691 NLA

1шт.

2

FFSB110164

Wiring Harness

Extension Engine

1шт.

3

FFSB110165

Wiring Harness

Extension Upperstructure

1шт.

4

21M7265

Screw

M5 X 12 (SUB FOR FFSB107789)

7шт.

5

XCL-17

Hose Clamp

(SUB FOR FFSB105439)

7шт.

6

FFSB110137

Clamp

8шт.

7

14M7274

Nut

M10 (SUB FOR FFSB107411)

8шт.

8

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

8шт.

9

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

8шт.

10

AT199840

Wiring Harness

Engine Wiring Harness

1шт.
