Запчасти John Deere 35C RTS 242 - AIR CONDITIONER POWERED CONDENSER FAN WIRING HARNESS 1674 WIRING HARNESS AND SWITCHES

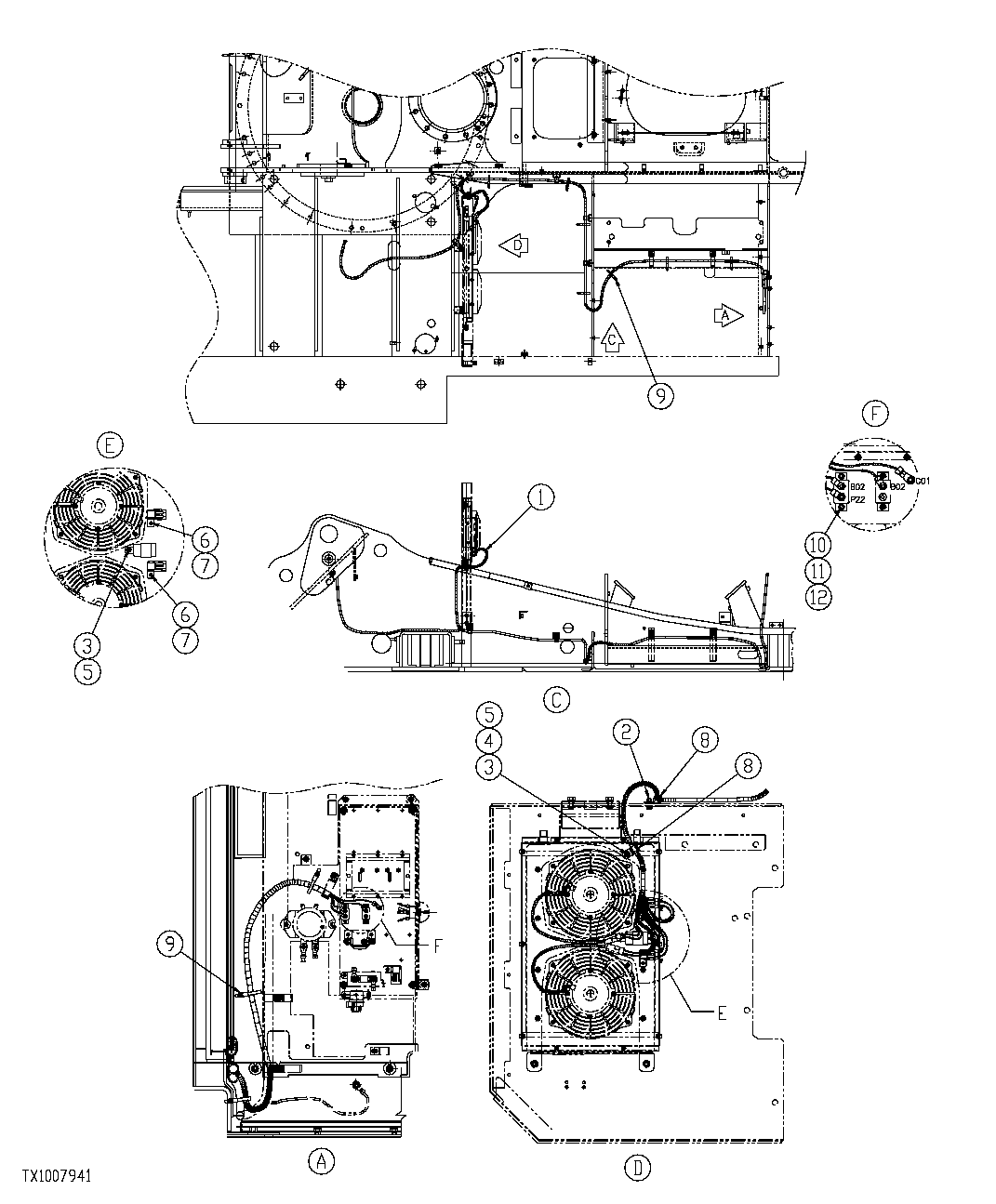

Схема запчастей John Deere 35C RTS - 242 - AIR CONDITIONER POWERED CONDENSER FAN WIRING HARNESS 1674 WIRING HARNESS AND SWITCHES

Артикул

Название

Примечание

Количество

1

FFSB112177

Wiring Harness

1шт.

RE505214

Relay Module

24 V, 40 AMP, (SUB FOR FFSB112194)

1шт.

57M7121

Fuse

(SUB FOR FFSB105369)

2шт.

2

19M7162

Cap Screw

M8 X 16 (SUB FOR FFSB107144 OR 4372222)

1шт.

24M7036

Washer

9 X 16 X 1.600 mm

1шт.

12M7065

Lock Washer

8 mm

1шт.

3

14M7272

Nut

M6 (SUB FOR FFSB107184)

2шт.

4

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107438)

1шт.

5

12M7006

Lock Washer

6 mm (SUB FOR FFSB107439)

2шт.

6

12M7064

Lock Washer

5 mm (SUB FOR FFSB107801)

2шт.

7

14M7297

Nut

M5 (SUB FOR FFSB105284)

2шт.

8

H75541

Clamp

(SUB FOR FFSB105438)

2шт.

9

H77698

Tie Band

(SUB FOR FFSB108110)

10шт.

10

AT41394

Circuit Breaker

(SUB FOR FFSB112352)

1шт.

11

12M7112

Lock Washer

5.300 mm (SUB FOR FFSB110194)

2шт.

12

FFSB110195

Bolt

2шт.

Выбрано товаров: 16
