Запчасти John Deere 35C RTS 226 - CAB HYDRAULIC TILT WIRING HARNESSES, SWITCH, AND RELAYS 1674 WIRING HARNESS AND SWITCHES

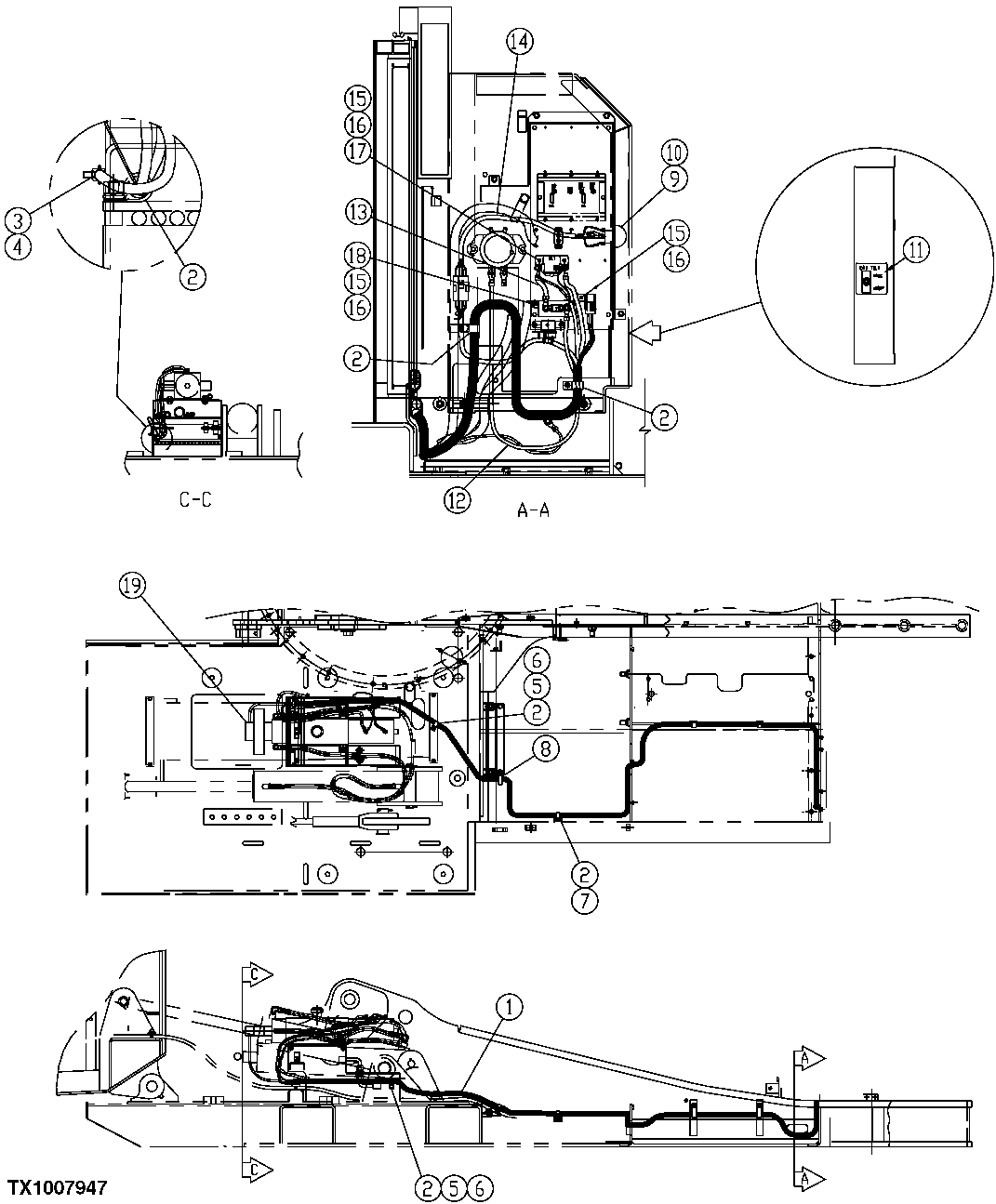

Схема запчастей John Deere 35C RTS - 226 - CAB HYDRAULIC TILT WIRING HARNESSES, SWITCH, AND RELAYS 1674 WIRING HARNESS AND SWITCHES

Артикул

Название

Примечание

Количество

1

FFSB103738

Wiring Harness

(SUB FOR FFSB103738)TILT HYD

1шт.

2

XCL-17

Hose Clamp

(SUB FOR FFSB105439)

5шт.

3

14M7273

Nut

M8 (SUB FOR FFSB108151)

1шт.

4

12M7065

Lock Washer

8 mm (SUB FOR FFSB103370)

1шт.

5

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

6

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

2шт.

7

19M7938

Cap Screw

M10 X 20 (SUB FOR FFSB107124)

1шт.

8

FFSB102828

Clip

1шт.

9

FFSB108623

Toggle/Rocker Switch

1шт.

10

FFSB108891

Guard

1шт.

11

FFSB108617

Label

CAB TILT CONTROL

1шт.

12

FFSB110180

Wiring Harness

TILT FUSE

1шт.

13

FFSB110181

Wiring Harness

TILT RELAY

1шт.

14

FFSB107576

Wiring Harness

TILT SWITCH

1шт.

15

FFSB110195

Bolt

5шт.

16

12M7112

Lock Washer

5.300 mm (SUB FOR FFSB110194)

5шт.

17

FFSB103165

Relay

1шт.

18

FFSB102484

Fuse Holder

1шт.

F046107

Fuse

(SUB FOR FFSB102461)

1шт.

19

FFSB103214

Conduit

1шт.

Выбрано товаров: 20
