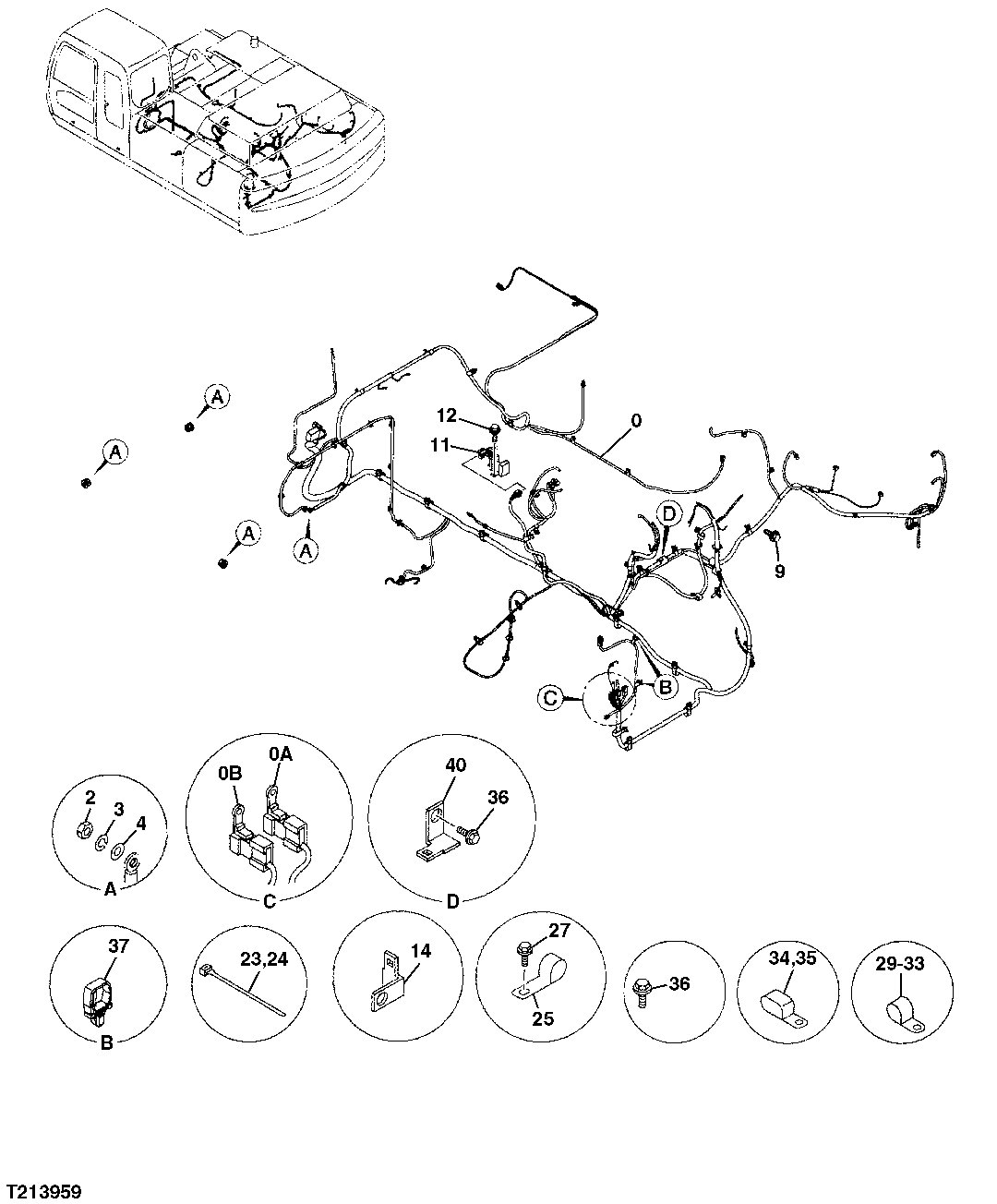

Запчасти John Deere 35C RTS 215 - Wiring Harness 1674 WIRING HARNESS AND SWITCHES

0

0004913

Wiring Harness

(SUB FOR (1) 0004204) See DTAC Sol ution For Repair Kit and Connectors

1шт.

0A

4423418

Fuse

65 A, Fuse

1шт.

4287670

Link

60 A, Fuse (SUB FOR AT200499)

1шт.

0B

4315323

Fuse

45 A, Fuse

1шт.

2

14M7274

Nut

M10

4шт.

3

12M7066

Lock Washer

10 mm

4шт.

4

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

4шт.

9

19M7402

Cap Screw

M10 X 25

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

11

1825530391

Relay

Safety (SUB FOR 4452158)

1шт.

12

19M7932

Cap Screw

M8 X 16 (SUB FOR J010816)

2шт.

14

4257159

Bracket

1шт.

23

H77698

Tie Band

(SUB FOR 4055311)

16шт.

24

H77698

Tie Band

(SUB FOR 4055312)

1шт.

25

T78787

Clamp

(SUB FOR 4450494)

2шт.

27

19M7560

Cap Screw

M6 X 16 (SUB FOR J010616)

2шт.

29

4190261

Clip

5шт.

30

4190275

Clamp

2шт.

31

T28949

Clamp

(SUB FOR 4190273)

5шт.

32

T28949

Clamp

(SUB FOR 4190274)

6шт.

33

XCL-29

Clip

(SUB FOR 4190264)

4шт.

34

T32854

Clip

(SUB FOR 4190282)

2шт.

35

4190266

Clip

5шт.

36

19M7938

Cap Screw

M10 X 20

30шт.

37

4449250

Clip

2шт.

40

4418301

Bracket

1шт.
