Запчасти John Deere 35C RTS 214 - ENGINE WIRING HARNESS AND CONNECTORS 1674 WIRING HARNESS AND SWITCHES

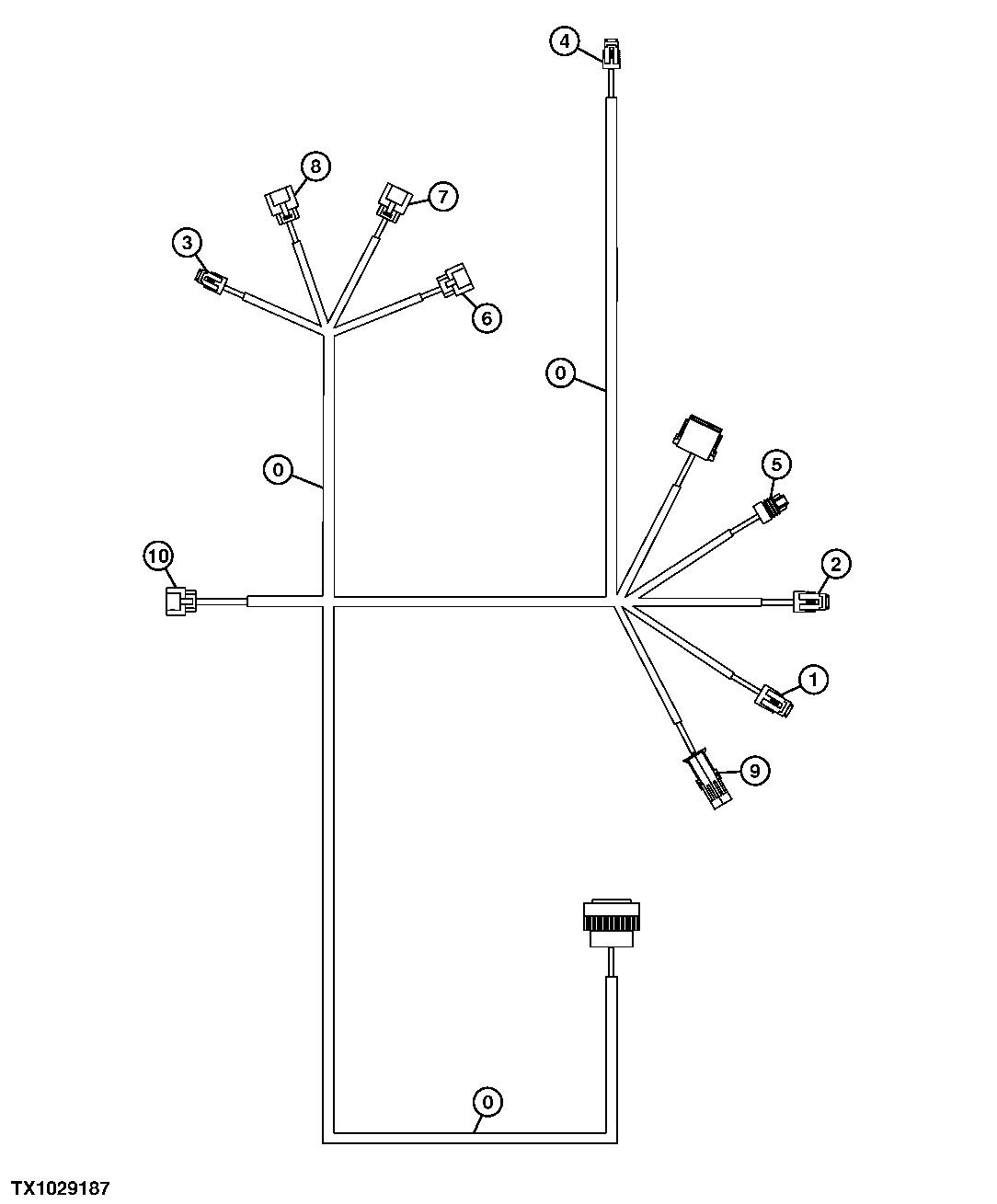

Схема запчастей John Deere 35C RTS - 214 - ENGINE WIRING HARNESS AND CONNECTORS 1674 WIRING HARNESS AND SWITCHES

Артикул

Название

Примечание

Количество

0

AT199840

Wiring Harness

Engine

1шт.

1

57M7278

Elec. Connector Housing

Engine Timing (Crank)

1шт.

57M7829

Elec. Connector Terminal

2шт.

2

57M7278

Elec. Connector Housing

Fuel Temperature

1шт.

57M7829

Elec. Connector Terminal

2шт.

3

57M7278

Elec. Connector Housing

Coolant Temperature

1шт.

57M7829

Elec. Connector Terminal

2шт.

4

57M7278

Elec. Connector Housing

Manifold Air Temperature Sensor Mat

1шт.

57M7829

Elec. Connector Terminal

2шт.

5

57M7796

Elec. Connector Housing

Fuel Pressure Sensor

1шт.

R104701

Elec. Connector Terminal

3шт.

6

57M8418

Elec. Connector Housing

Engine Position (Cam)

1шт.

7

57M8403

Elec. Connector Housing

Front Solenoid (PCV!)

1шт.

57M8404

Elec. Connector Terminal

2шт.

57M8406

Elec. Connector Seal

1шт.

8

57M8403

Elec. Connector Housing

(PCV2) Rear Solenoid

1шт.

57M8404

Elec. Connector Terminal

2шт.

57M8406

Elec. Connector Seal

1шт.

9

57M7256

Elec. Connector Housing

Water In Fuel WIF Sensor

1шт.

R104919

Elec. Connector Terminal

2шт.

57M7258

Elec. Connector Seal

1шт.

10

57M8407

Elec. Connector Housing

Rail Pressure Sensor

1шт.

57M8135

Elec. Connector Terminal

3шт.

57M7833

Elec. Connector Seal

1шт.

57M8420

Elec. Connector Cavity Plug

1шт.

Выбрано товаров: 25
