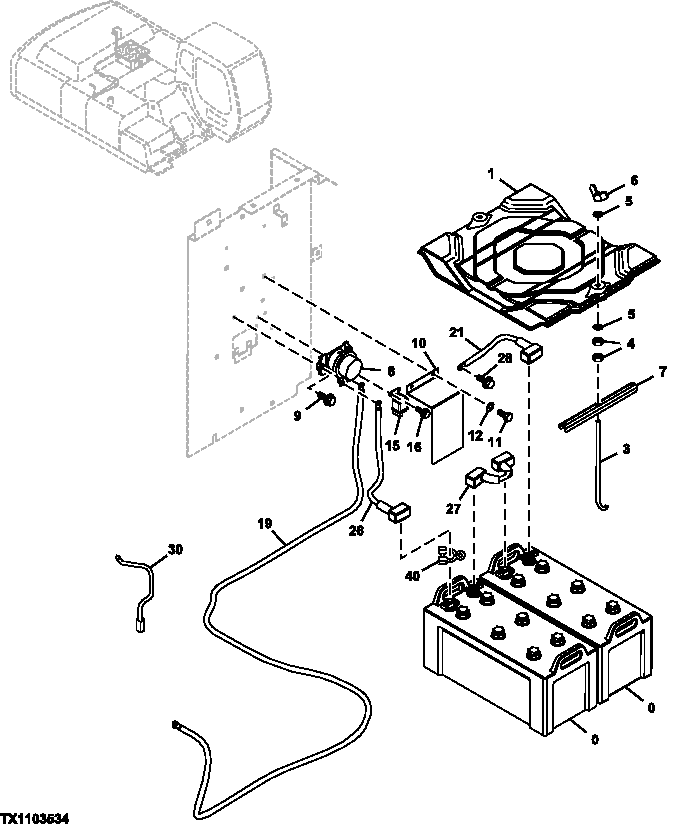

Запчасти John Deere 35C RTS 211 - Batteries, Battery Cables and Relay 1674 WIRING HARNESS AND SWITCHES

0

TY23020

Dry Charged Battery

SUB FOR TY21709

2шт.

1

4386066

Cover

1шт.

3

4430289

Rod

2шт.

4

14M7274

Nut

M10

4шт.

5

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

6

14M7025

Wing Nut

M10

2шт.

7

4405803

Support

2шт.

8

8943795431

Relay

SUB FOR 4255762

1шт.

9

19M7513

Cap Screw

M8 X 30

2шт.

10

3087816

Cover

1шт.

11

19M7932

Cap Screw

M8 X 16

3шт.

12

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

15

4452159

Relay

1шт.

16

19M7077

Cap Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

19

4457896

Wiring Harness

1шт.

21

AR45925

Battery Cable

1шт.

26

4390098

Battery Cable

1шт.

27

4350736

Battery Cable

1шт.

28

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

30

4448296

Wiring Harness

1шт.
