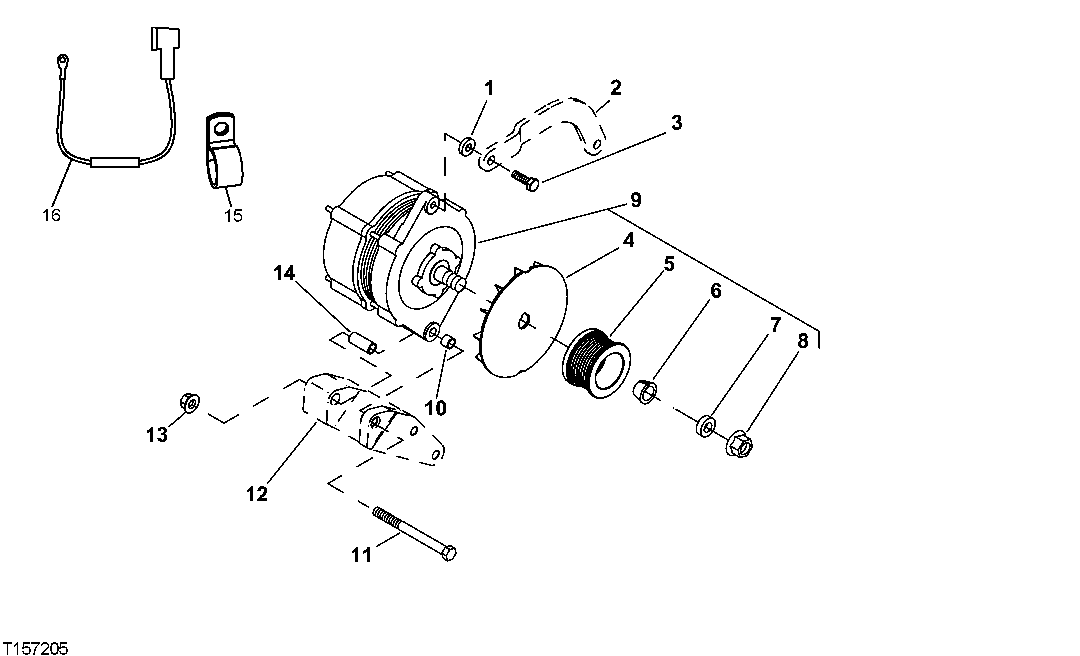

Запчасти John Deere 35C RTS 196 - ALTERNATOR 24V 45 AMP (STANDARD DUTY) 1672 ALTERNATOR, REGULATOR & CHARGING SYSTEM WIRING

1

R56397

Washer

1шт.

2

R130551

Strap

1шт.

3

19M7163

Cap Screw

M8 X 25

1шт.

4

T158584

Fan

1шт.

5

R94350

Pulley

1шт.

6

R94351

Bushing

1шт.

7

T10745

Washer

1шт.

8

14M7158

Nut

M16

1шт.

9

TY26045

Alternator

SUB FOR TY24322

1шт.

SE501362

Alternator

REMAN FOR TY26045

1шт.

AT161324

Alternator

24V-45 AMP

1шт.

SE501341

Alternator

REMAN FOR TY24322 OR AT161324

1шт.

AT163156

Alternator

(NOT ILLUSTRATED) (USE TO REPAIR 45 AMP ALTERNATOR)

1шт.

H144095

Alternator

(NOT ILLUSTRATED) (USE TO REPAIR 45 AMP ALTERNATOR)

1шт.

10

W26301

Bushing

1шт.

11

19M8166

Cap Screw

M10 X 110

1шт.

12

R500607

Strap

1шт.

13

14M7274

Nut

M10

1шт.

14

T50036

Bushing

1шт.

15

T190303

Clamp

1шт.

16

AT197149

Wiring Harness

1шт.
