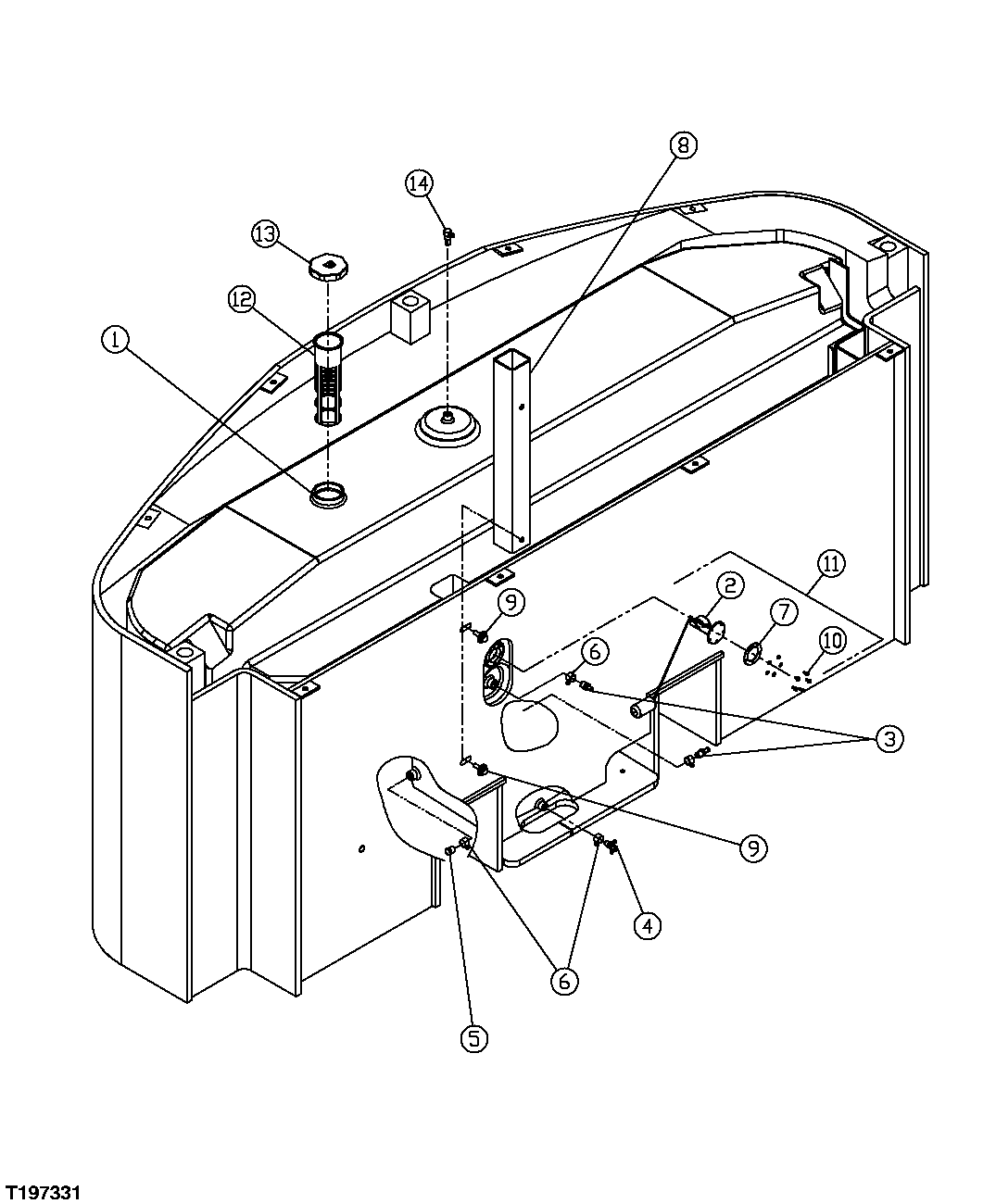

Запчасти John Deere 35C RTS 181 - FUEL TANK AND FUEL LEVEL SENSOR (SN. -350022) 0564 FUEL TANK

1

FFSB113476

Fuel Tank

SUB FOR FFSB111210

1шт.

2

4660782

Float

SUB FOR FFSB109396 OR 4257128

1шт.

3

R119990

Adapter Fitting

SUB FOR FFSB111657

2шт.

4

AT365267

Pressure Relief Valve

SUB FOR FFSB111681

1шт.

5

X3/8HP-S

Fitting Plug

SUB FOR FFSB104505

1шт.

6

FFSB102829

Clamp

4шт.

7

T155195

Gasket

SUB FOR FFSB113250

1шт.

8

FFSB112354

Bracket

1шт.

9

19M7550

Cap Screw

M10 X 35 SUB FOR FFSB109179

2шт.

24M7346

Washer

11 X 20 X 2 mm SUB FOR FFSB109179

2шт.

12M7066

Lock Washer

10 mm SUB FOR FFSB109179

2шт.

10

21M7265

Screw

M5 X 12 SUB FOR FFSB107789

5шт.

11

Sender

FFSB109174 NLA

1шт.

12

AH162914

Strainer

1шт.

13

AT179586

Filler Cap

1шт.

14

AT157938

Vent

1шт.

15

FFSB114138

Plate

Need Only If Using Updated F uel Strainer Not Illustrated

1шт.

16

FFSB114160

Plate

Need Only If Using Updated Fuel Strainer

1шт.

17

FFSB114162

Adapter Fitting

Need Only If Using Updated Fuel Strainer

1шт.

18

FFSB114161

Screw

Need Only If Using Updated Fuel Strainer

8шт.
