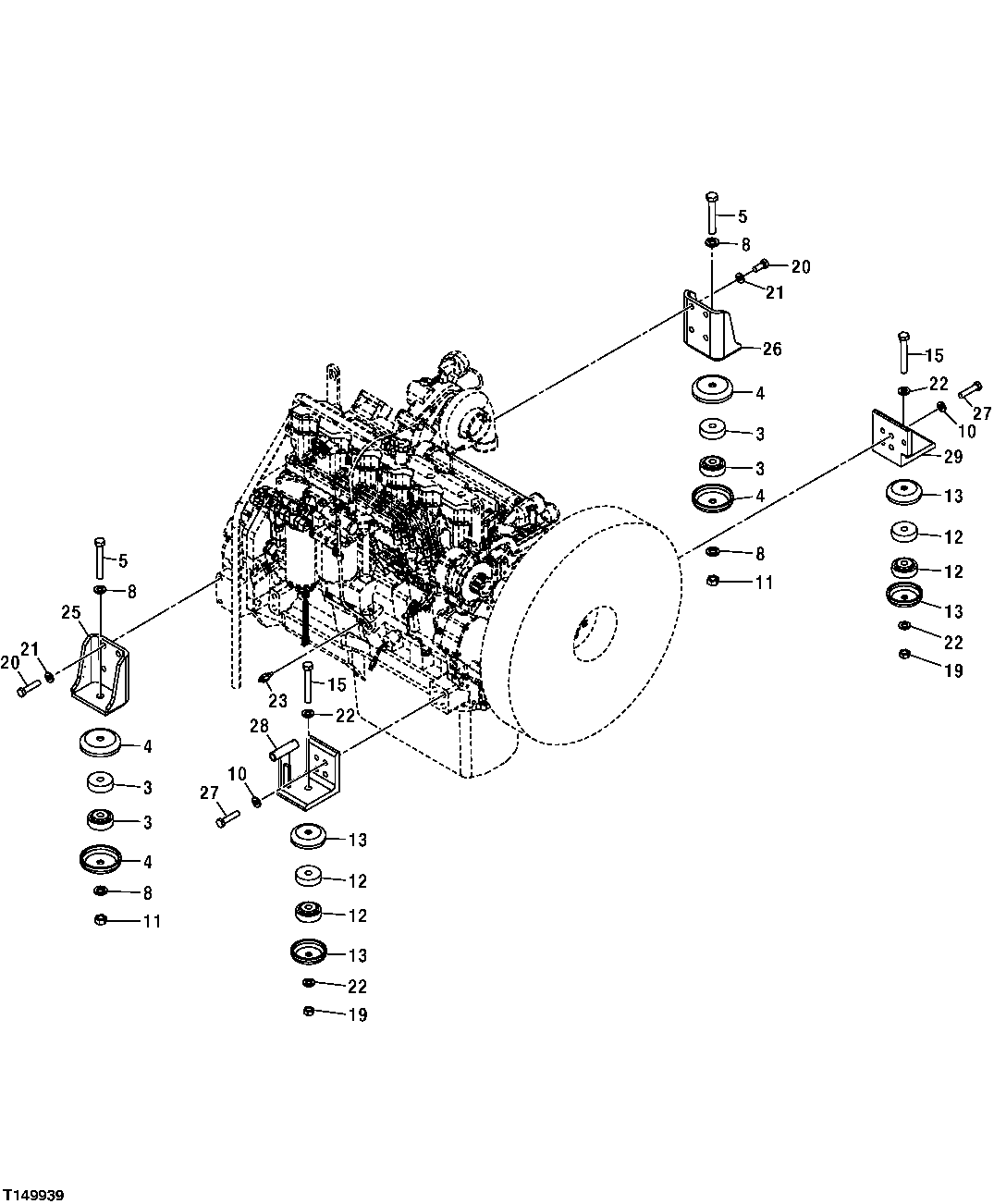

Запчасти John Deere 35C RTS 178 - ENGINE MOUNTS 0540 ENGINE MOUNTING

3

4197145

Isolator

4шт.

4

4189018

Retainer

4шт.

5

J921806

Bolt

2шт.

8

24M7353

Washer

20 X 34 X 3 mm

4шт.

10

24M7338

Washer

17 X 30 X 3 mm

8шт.

11

J950018

Nut

2шт.

12

4256314

Isolator

4шт.

13

4197147

Stop

4шт.

15

19M7968

Cap Screw

M20 X 130 (SUB FOR J922006)

2шт.

19

14M7277

Nut

M20

2шт.

20

19H2994

Cap Screw

5/8" X 1-1/2"

8шт.

21

24M7338

Washer

17 X 30 X 3 mm

8шт.

22

P61952

Washer

4шт.

23

4456798

Sensor

(TEMPERATURE GAUGE)

1шт.

25

8055862

Bracket

(SUB FOR AT250439)

1шт.

26

8050023

Bracket

1шт.

27

19H2599

Cap Screw

5/8" X 2-1/2"

8шт.

28

8081301

Bracket

1шт.

29

4469731

Bracket

1шт.
