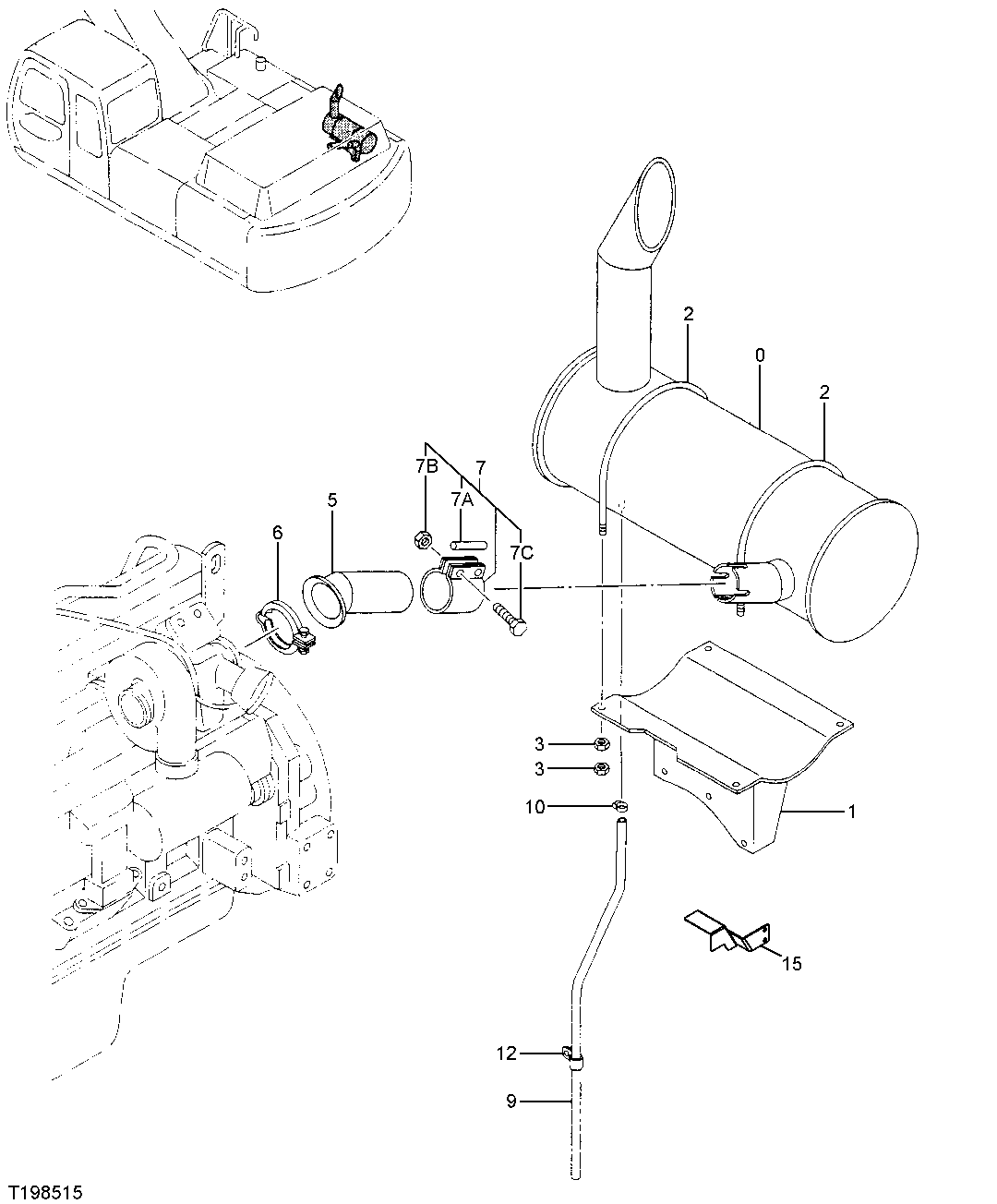

Запчасти John Deere 35C RTS 176 - MUFFLER,EXHAUST PIPE AND MOUNTING BRACKET 0530 EXTERNAL EXHAUST SYSTEMS

0

Muffler

Spark Arrestor Muffler Require d This Application Components L isted On Another Page AT305238

1шт.

1

7042489

Bracket

1шт.

2

4189055

U-Bolt

2шт.

3

14M7274

Nut

M10

8шт.

5

8071385

Exhaust Pipe

1шт.

6

RE40048

Clamp

Includes Screw

1шт.

7

4283787

Clamp

1шт.

7A

T130341

Gasket

1шт.

7B

H80440

Lock Nut

11.125 mm (7/16")

2шт.

7C

4162836

Bolt

2шт.

9

4297136

Tube

1шт.

10

TY22462

Clamp

1шт.

12

4190275

Clamp

(SUB FOR 4344303)

1шт.

15

8088286

Bracket

1шт.
