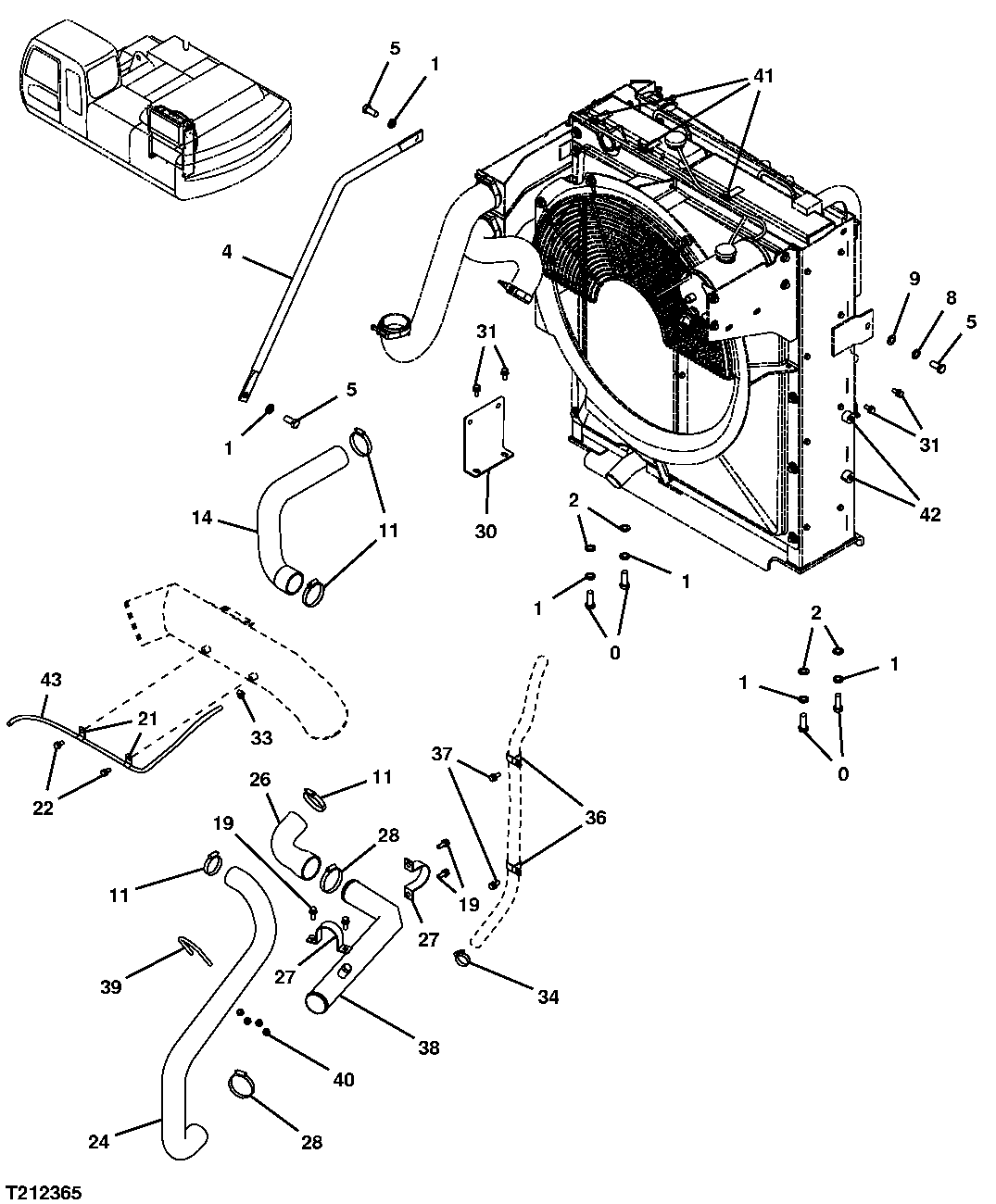

Запчасти John Deere 35C RTS 173 - RADIATOR SUPPORT 0510 ENGINE COOLING SYSTEMS

0

19M7489

Cap Screw

M16 X 45

4шт.

1

12H294

Lock Washer

5/8"

6шт.

2

24M7053

Washer

17 X 30 X 3 mm

4шт.

4

3092862

Latch

1шт.

5

19M8035

Cap Screw

M16 X 35

3шт.

8

12H294

Lock Washer

5/8"

1шт.

9

24M7053

Washer

17 X 30 X 3 mm

1шт.

11

TY22472

Clamp

4шт.

14

AT219654

Radiator Hose

1шт.

19

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

21

4190261

Clip

(SUB FOR TH109649)

2шт.

22

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

24

3082084

Radiator Hose

1шт.

26

4400256

Radiator Hose

(SUB FOR AT250129)

1шт.

27

4400205

Clamp

(SUB FOR AT250128)

2шт.

28

TY22473

Clamp

(SUB FOR AR62936)

2шт.

30

8073395

Bracket

(SUB FOR AT250244)

1шт.

31

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

33

TY22462

Clamp

(SUB FOR AR48236)

1шт.

34

TY22467

Clamp

1шт.

36

AT121321

Hose Clamp

2шт.

37

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

38

8073677

Line

(SUB FOR AT250245)

1шт.

39

4409138

U-Bolt

(SUB FOR AT250150)

1шт.

40

14M7274

Nut

M10

4шт.

41

T19935

Clamp

4шт.

42

T162280

Bushing

2шт.

43

R121306

Hose

(850MM)

1шт.
