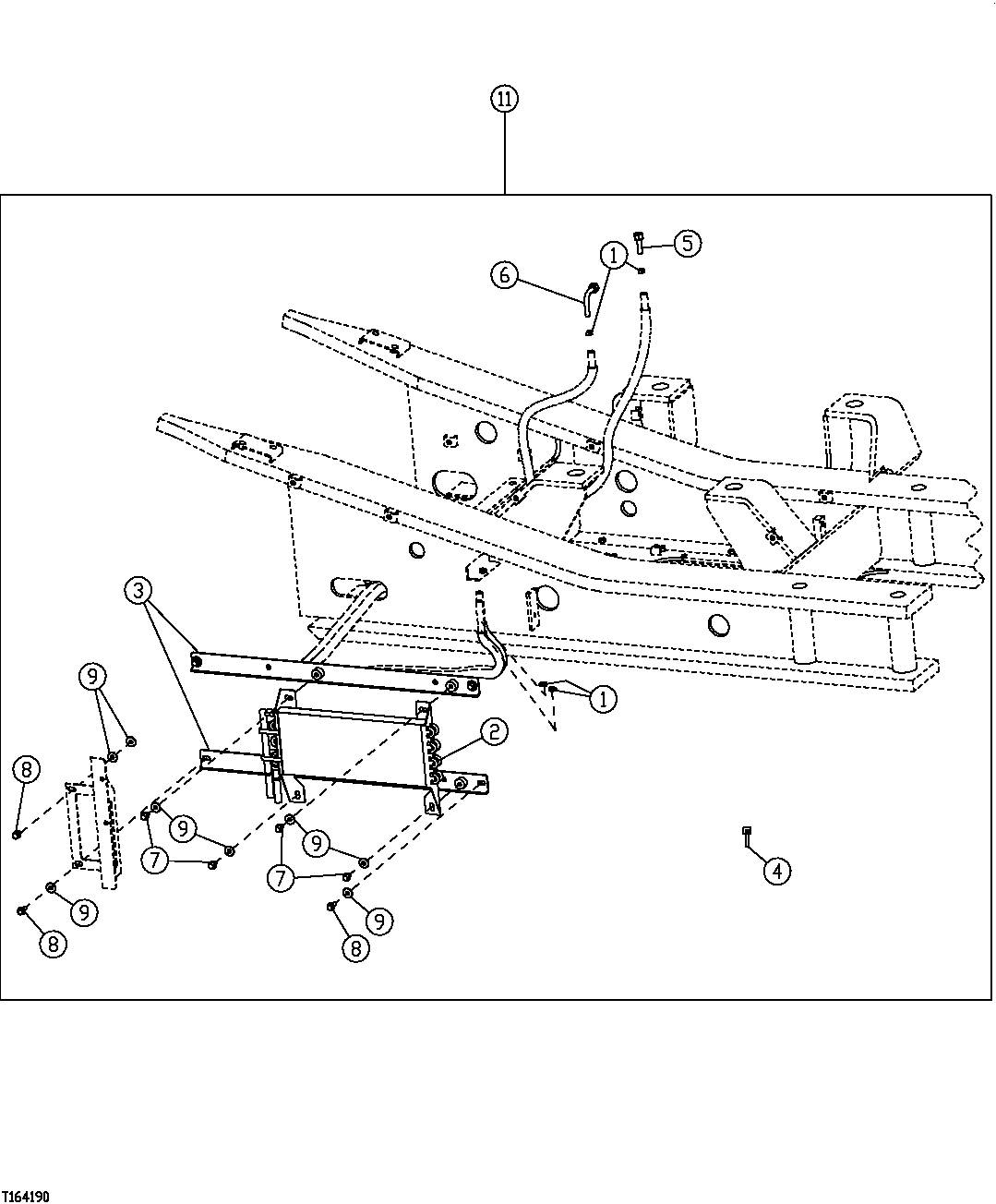

Запчасти John Deere 35C RTS 172 - FUEL COOLER HOSE KIT 0510 ENGINE COOLING SYSTEMS

1

AR77962

Hose Clamp

(HOSE)

4шт.

2

AT197481

Fuel Cooler

(FUEL COOLER)

1шт.

3

AT197482

Support

2шт.

4

R76477

Tie Band

15шт.

5

RE515052

Fuel Line

(STRAIGHT FITTING)

1шт.

6

RE516832

Fuel Line

(90 DEGREE FITTING)

1шт.

7

19M7784

Screw

M10 X 20

4шт.

8

19M7785

Screw

M10 X 25

3шт.

9

24M7296

Washer

10.500 X 30 X 2.500 mm

8шт.

11

AT198223

Kit

(WHOLEGOODS) (FUEL COOLER HOSE KIT)

1шт.
