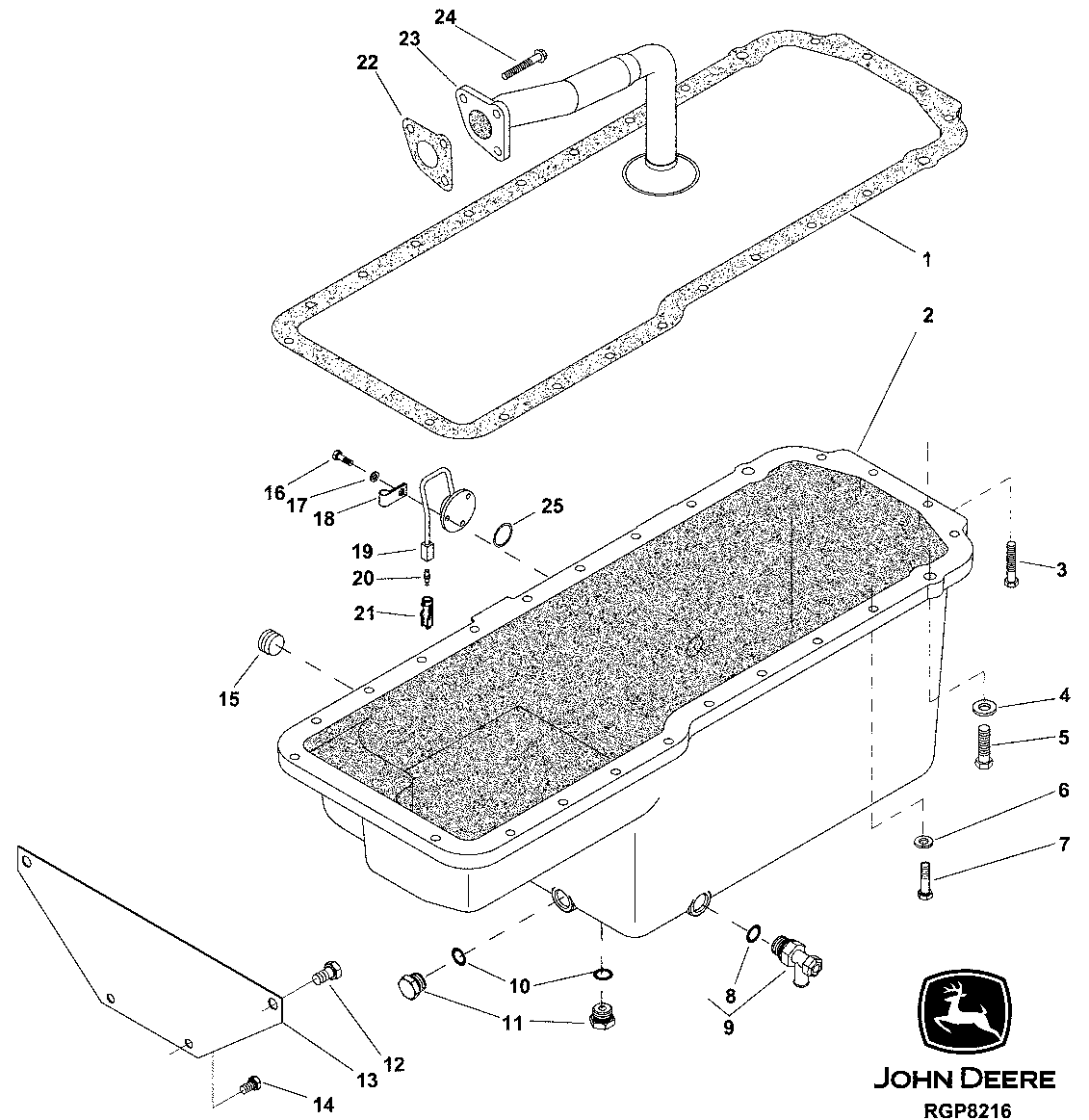

Запчасти John Deere 35C RTS 111 - OIL PAN 0400B 6081HT008 6081HT008-RE527869 6081HT008

1

R521228

Gasket

(SUB FOR RE504822)

1шт.

2

RE508036

Pan

1шт.

3

19H3485

Cap Screw

3/8" X 2"

4шт.

4

R135895

Washer

13.500 X 27 X 3.400 mm (1 7/32" X 1-1/16" X 0.134")

2шт.

5

19H2473

Cap Screw

1/2" X 1-3/4"

2шт.

6

24M7239

Washer

10.700 X 21 X 2.500 mm

22шт.

7

19H2633

Cap Screw

3/8" X 1-1/2"

18шт.

8

R26906

O-Ring

1шт.

9

AT152180

Drain Valve

1шт.

10

R47151

O-Ring

3шт.

11

R27474

Drain Plug

3шт.

12

19H3530

Cap Screw

1/2" X 7/8"

2шт.

13

R56619

Cover

1шт.

14

19H2021

Cap Screw

3/8" X 5/8"

2шт.

15

15H690

Pipe Plug

3/4"

1шт.

16

19M7077

Cap Screw

M6 X 20

3шт.

17

12M7133

Lock Washer

6 mm

3шт.

18

T13914

Clamp

1шт.

19

RE16223

Sensor

1шт.

20

R78064

Elec. Connector Cavity Plug

1шт.

21

R78052

Electrical Connector Assy

1шт.

22

R100569

Gasket

1шт.

23

RE43167

Oil Pump Intake

1шт.

24

R104628

Screw

3шт.

25

R47154

O-Ring

1шт.
