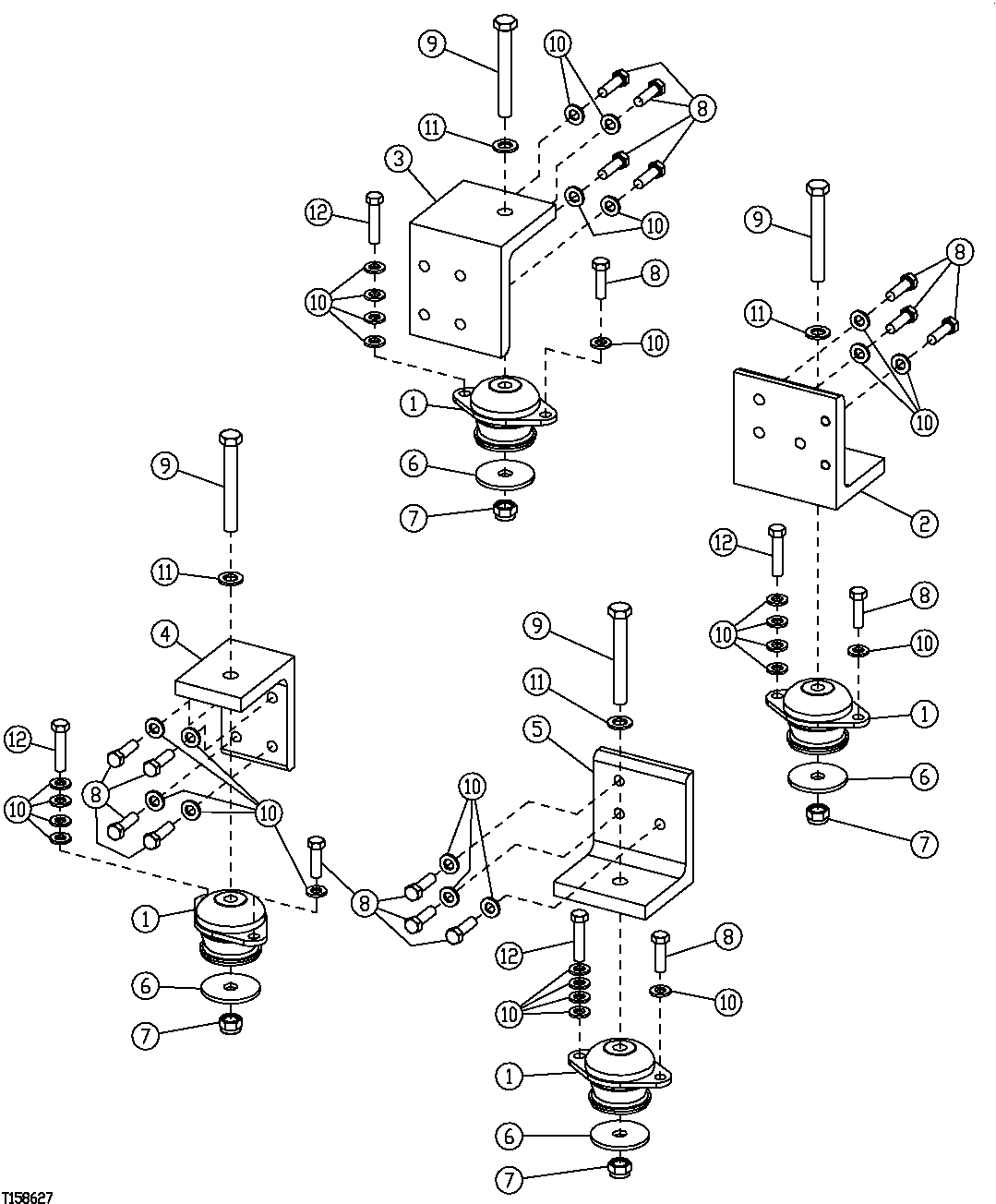

Запчасти John Deere 20C 76 - ENGINE MOUNTING BRACKETS AND ISOLATORS 0540 ENGINE MOUNTING

1

AP35325

Isolator

4шт.

2

P61260

Angle

1шт.

3

P61261

Angle

1шт.

4

P61262

Angle

1шт.

5

P61263

Angle

1шт.

6

R111207

Washer

4шт.

7

14M7328

Lock Nut

M16

4шт.

8

19M7493

Cap Screw

M12 X 40

18шт.

9

19M7941

Cap Screw

M16 X 120

4шт.

10

24M7240

Washer

13 X 25 X 3 mm (REQUIRED FOR TORSIONAL STABILITY)

34шт.

11

24M7338

Washer

17 X 30 X 3 mm

4шт.

12

19M7362

Cap Screw

M12 X 55

4шт.
