72 - RADIATOR MOUNTING AND SUPPORT BRACKET

Запчасти John Deere 20C 72 - RADIATOR MOUNTING AND SUPPORT BRACKET 0510 ENGINE COOLING SYSTEMS

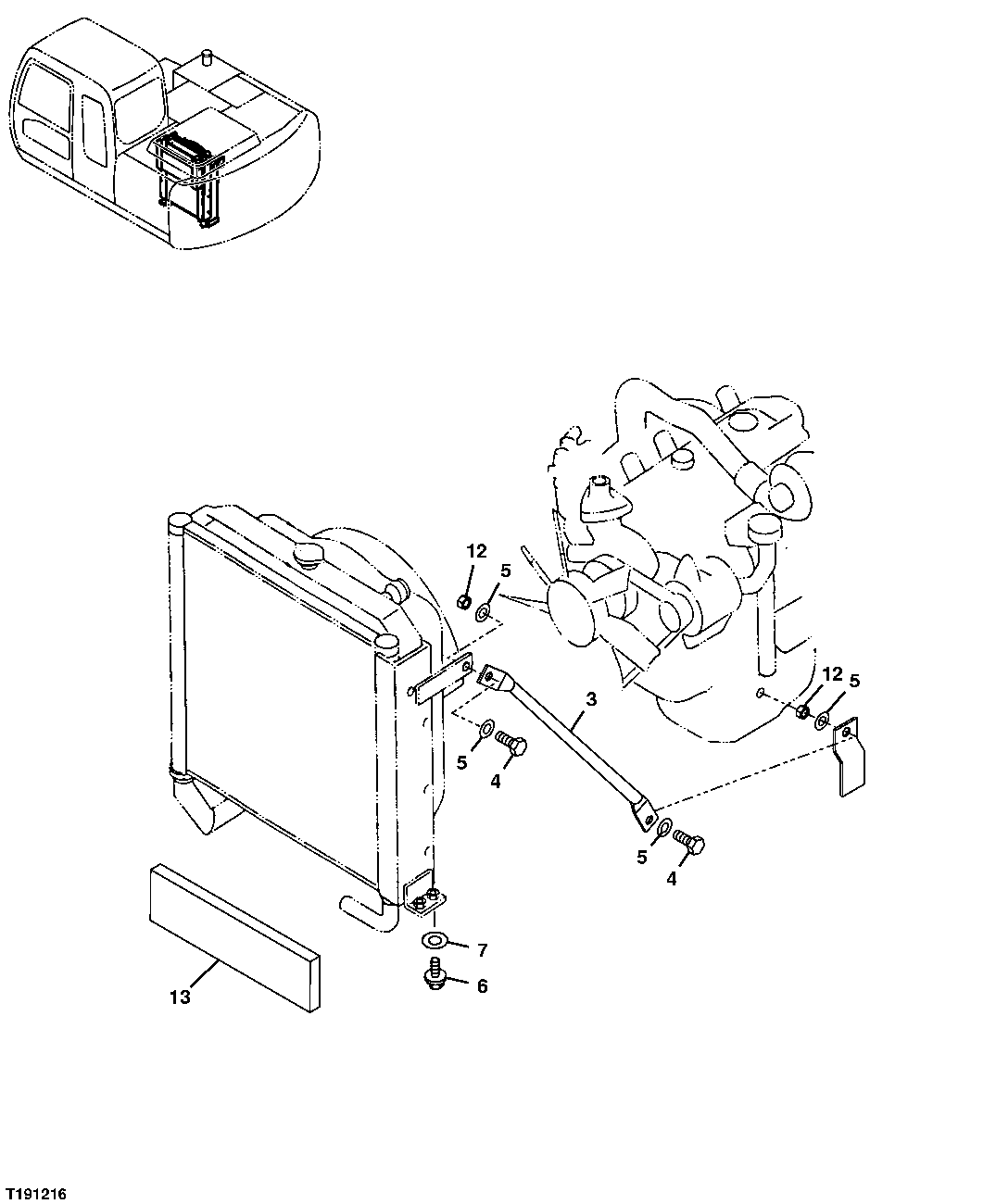

Схема запчастей John Deere 20C - 72 - RADIATOR MOUNTING AND SUPPORT BRACKET 0510 ENGINE COOLING SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

P68157

Pin Fastener

1шт.

4

19M7409

Cap Screw

M16 X 50

2шт.

5

24M7241

Washer

17 X 34 X 4 mm

4шт.

6

19M7814

Screw

M12 X 50

4шт.

7

24M7180

Washer

13 X 37 X 3 mm (SUB FOR 2 4M7345, THIS APPLICATION)

4шт.

12

14M7328

Lock Nut

M16

2шт.

13

P63201

Pad

1шт.
