Запчасти John Deere 20C 65 - COLD WEATHER STARTING AID 0505 COLD WEATHER STARTING AIDS

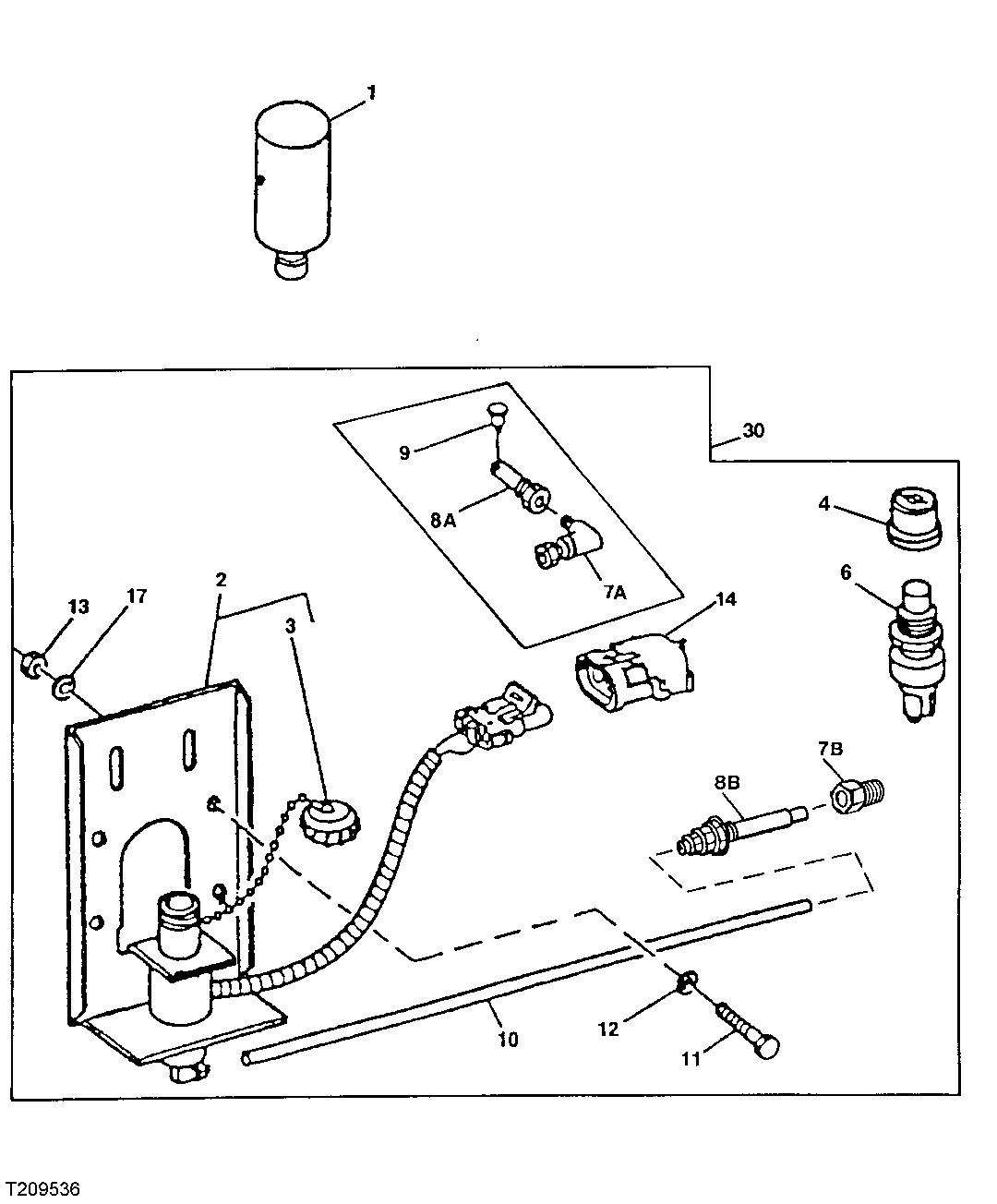

Схема запчастей John Deere 20C - 65 - COLD WEATHER STARTING AID 0505 COLD WEATHER STARTING AIDS

Артикул

Название

Примечание

Количество

1

AT171162

Starting Fluid

1шт.

2

AT170759

Solenoid

1шт.

3

AT171539

Cap

1шт.

4

Cap

(NLA)

1шт.

6

4384759

Switch

SUB FOR AT178893

1шт.

7A

RE21790

Elbow Fitting

SUB FOR AT183222, AND T175293THIS APPLICATION

1шт.

7B

T175293

Adapter Fitting

1шт.

8A

R47160

Nozzle Holder

SUB FOR AT183222, AND T175293THIS APPLICATION

1шт.

8B

AT183222

Nozzle

1шт.

9

T155858

Nozzle

USE WITH R47160

1шт.

10

Tube

(MAKE FROM T78593)(CUT TO LENGTH) ( DT5069 NLA)

1шт.

11

19M7407

Cap Screw

M8 X 25

4шт.

12

Washer

12M7065 NLA

4шт.

13

14M7273

Nut

M8

4шт.

14

Connector

( AL2976T NLA)

1шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

18

R44302

Tie Band

(NOT ILLUSTRATED)

ARшт.

30

Field Installation Kit

WHOLEGOODS (ETHER) ( AT178845 NLA)

1шт.

Выбрано товаров: 18
