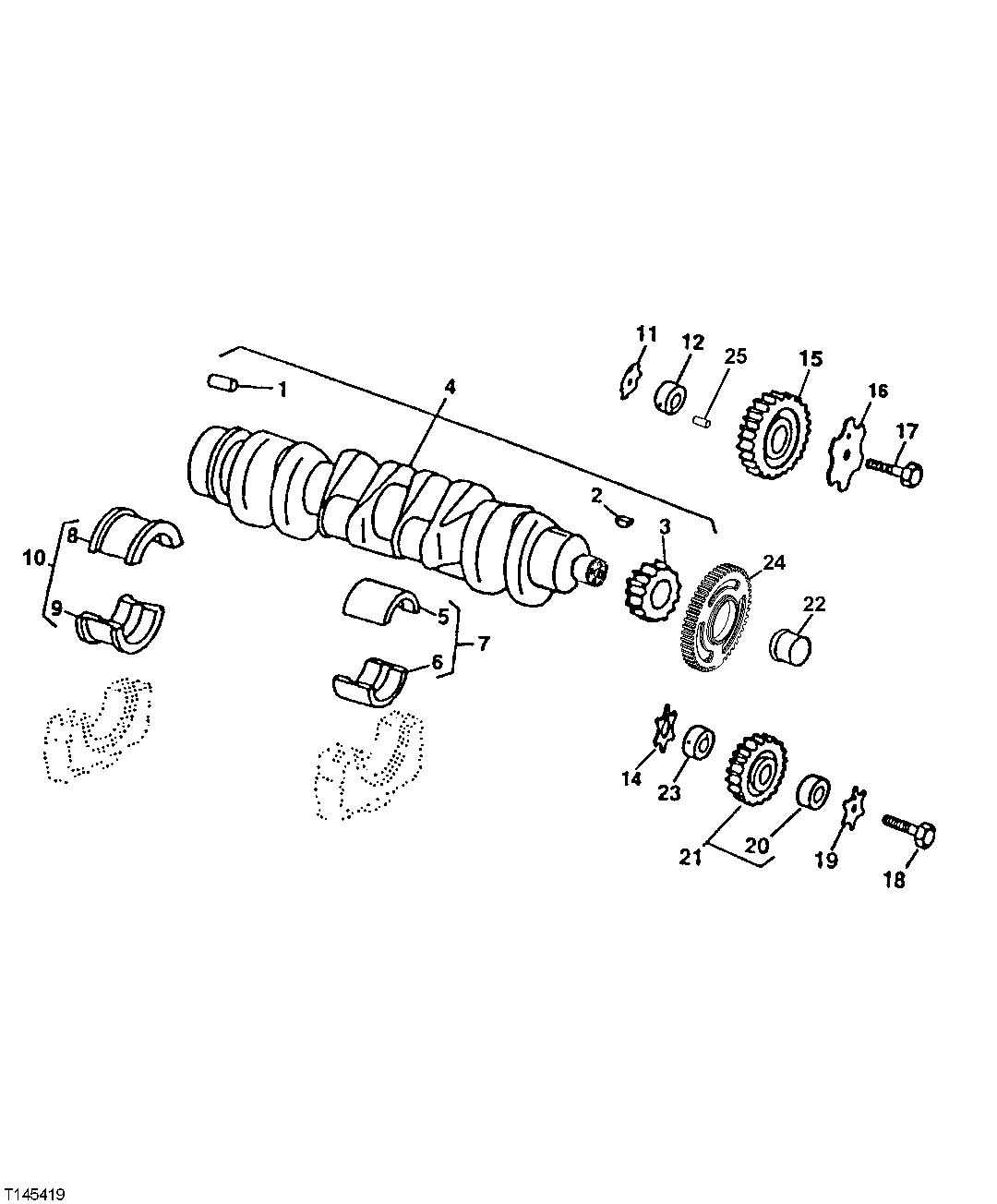

Запчасти John Deere 20C 22 - CRANKSHAFT, GEAR AND MAIN BEARINGS 0400 Engine 4045HP050-RE508097 4045HP050

1

R48685

Dowel Pin

1шт.

2

R505609

Shaft Key

1шт.

3

R120631

Gear

(30 TEETH)

1шт.

4

RE504638

Crankshaft

(MARKED R113596 ) (ALSO ORDER RE59811)

1шт.

5

Bearing

(MARKED R123561)(STD) (UPPER)

4шт.

Bearing

(.254 MM), (MARKED R130576)(US) (UPPER)

4шт.

6

Bearing

(MARKED R123562)(STD) (LOWER)

4шт.

Bearing

(.254MM), (MARKED R130577)(US) (LOWER)

4шт.

7

RE65165

Bearing Kit

STD

4шт.

RE65911

Bearing

US, .254MM

4шт.

8

Bearing

(MARKED R123563)(STD) (UPPER)

1шт.

Bearing

(.254MM), (MARKED R130574)(US) (UPPER)

1шт.

9

Bearing

(MARKED R123564)(STD) (LOWER)

1шт.

Bearing

(.254MM), (MARKED R130575)(US) (LOWER)

4шт.

10

RE65168

Bearing Kit

(STD)

1шт.

RE65912

Thrust Bearing

(US, .254MM)

1шт.

11

R123174

Lock Washer

1шт.

12

R120641

Shaft

1шт.

14

R101225

Thrust Washer

1шт.

15

RE56313

Gear

(MARKED R500563)

1шт.

16

R131283

Thrust Washer

1шт.

17

19M8997

Screw

M10 X 65

1шт.

18

19M8966

Screw

M10 X 50

1шт.

19

R131283

Thrust Washer

1шт.

20

R114193

Bushing

1шт.

21

RE56369

Gear

1шт.

22

RE59811

Sleeve

1шт.

23

R114194

Shaft

1шт.

24

R501489

Wheel

CRANKSHAFT TIMING

1шт.

25

34H288

Spring Pin

3/16" X 1-3/4"

1шт.
