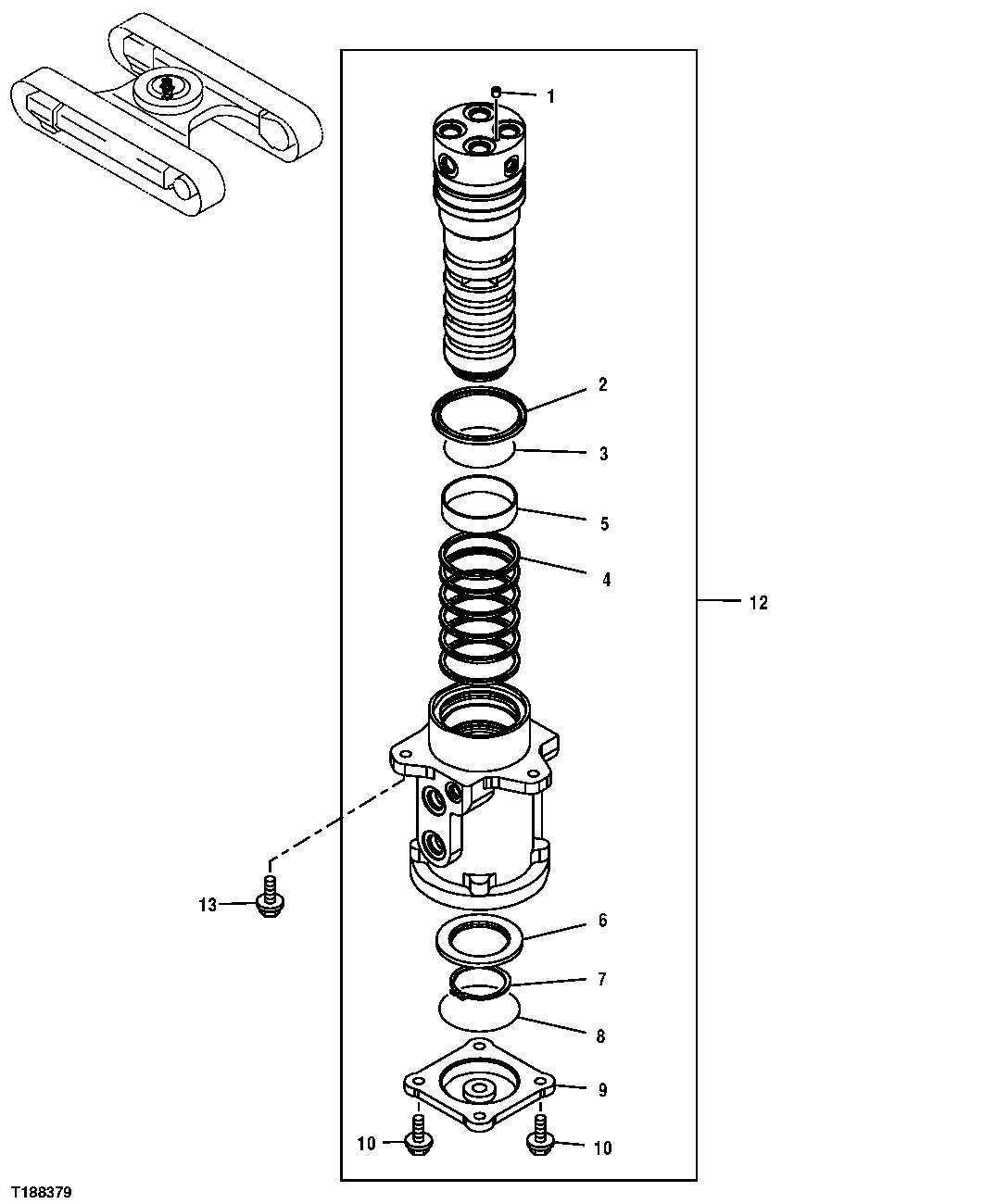

Запчасти John Deere 20C 16 - ROTARY MANIFOLD COMPONENTS AND MOUNTING 0260 AXLES, DIFFERENTIAL & SUSPENSION SYSTEM HYDRAULICS (INCLUDING FWD)

0

9195313

Manifold

SUB FOR AT348145 Not Illustrated

1шт.

9195313EX

Manifold Reman

REMAN FOR 9195313 Not Illustrated

1шт.

1B

4239611

Plug

1шт.

2

4410445

Seal

1шт.

3

4410446

O-Ring

1шт.

4

4406165

Seal

6шт.

5

4410066

Bushing

1шт.

6

3070250

Ring

1шт.

7

40M7048

Snap Ring

1шт.

8

CH16109

Packing

1шт.

9

2034607

Cover

1шт.

10

19M7662

Cap Screw

M10 X 30 SUB FOR J011030

4шт.

12M7066

Lock Washer

10 mm

4шт.

12

9195313

Manifold

1шт.

9195313EX

Manifold Reman

REMAN FOR 9195313

1шт.

13

19M7550

Cap Screw

M10 X 35

3шт.

12M7066

Lock Washer

10 mm

3шт.
