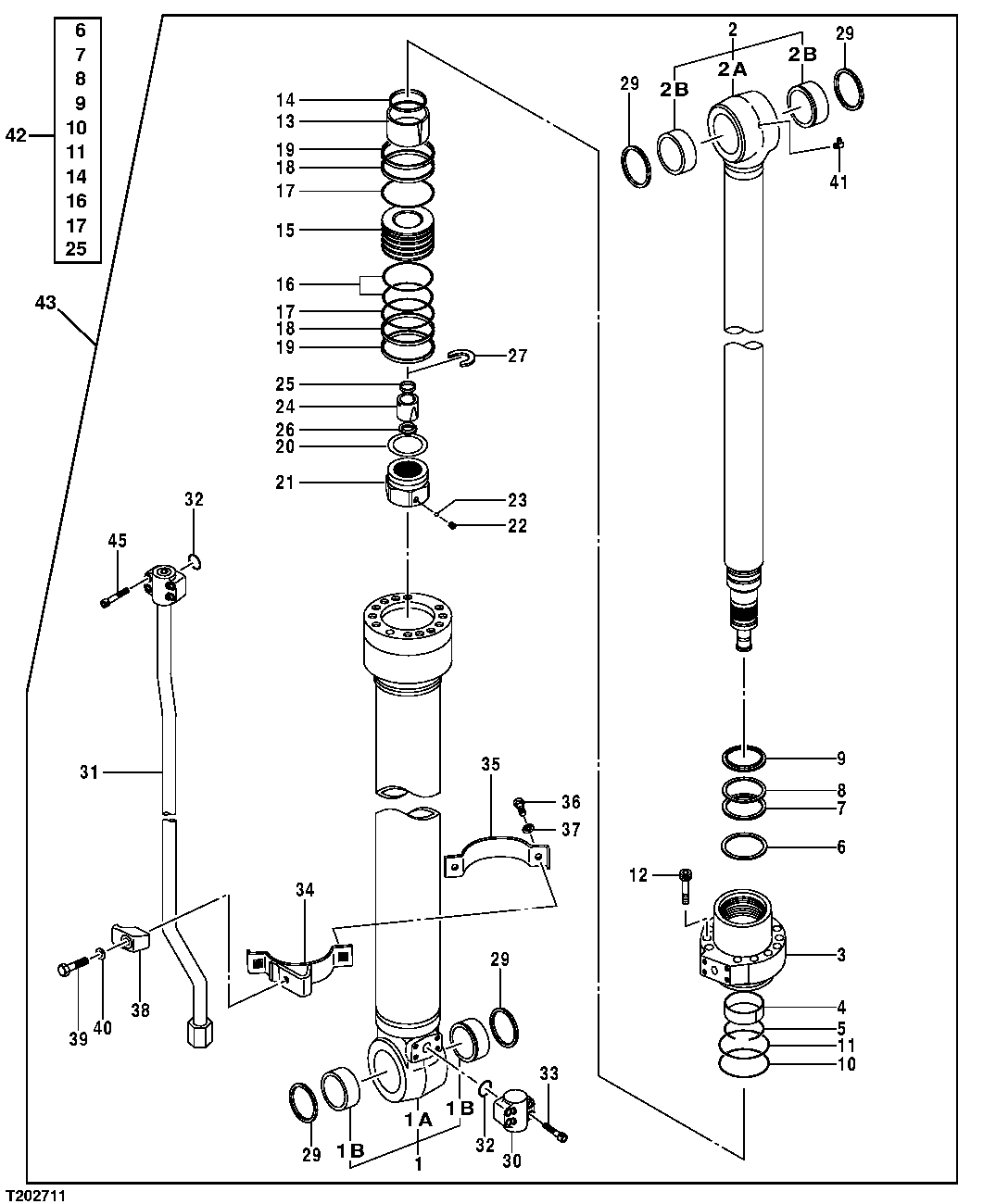

Запчасти John Deere 20C 266 - Arm Cylinder Components And Oil Lines 3365 HYDRAULIC CYLINDERS

1

0789501

Hydraulic Cylinder Barrel

1шт.

0789501

Hydraulic Cylinder Barrel

SUB FOR PG201365

1шт.

1A

Hydraulic Cylinder Barrel

1шт.

1B

4352400

Bushing

2шт.

2

0789503

Rod

1шт.

PG201367

Hyd Cylinder Rod Reman

1шт.

2A

Rod

0789504 NLA

1шт.

2B

4352400

Bushing

2шт.

3

H178708

Hydr. Cylinder Rod Guide

SUB FOR 0789205

1шт.

4

AT264314

Wear Ring

1шт.

5

TH104908

Snap Ring

1шт.

6

0789206

Ring

1шт.

7

AT264357

Seal

1шт.

8

AT264358

Back-Up Ring

1шт.

9

H157235

Seal

1шт.

10

AT264320

O-Ring

SUB FOR T110448

1шт.

11

TH109353

Back-Up Ring

1шт.

12

19M8931

Screw

M16 X 75

10шт.

13

0409005

Bearing

1шт.

14

H157237

Seal

1шт.

15

0789505

Piston

1шт.

16

TH105767

Ring

1шт.

17

H163431

Back-Up Ring

2шт.

18

H163432

Scraper Ring

2шт.

19

TH109357

Ring

SUB FOR AT309610

2шт.

20

AT153937

Shim

SUB FOR 0409010

1шт.

21

0789506

Nut

1шт.

22

22M7009

Set Screw

M12 X 12

1шт.

23

T13624

Ball

1шт.

24

AT153939

Bearing

SUB FOR 0409012

1шт.

25

0667010

Seal

SUB FOR 4S01123

1шт.

26

AT153941

Stop

SUB FOR 0409014

2шт.

27

AT153942

Ring

SUB FOR 0409015

1шт.

29

TH104472

Seal

4шт.

30

Universal Joint

0409016 NLA

1шт.

0796601

Universal Joint

ALSO ORDER A853166, 19M7662 AND 12M7066

1шт.

31

0789508J

Oil Line

ALSO ORDER (4) 19M7662; SUB FOR 0789 507 AND (4) 19M8213; SUB FOR 0789508

1шт.

32

AT264360

O-Ring

SUB FOR 4506430

2шт.

33

19M8213

Screw

M10 X 50

4шт.

34

AH156744

Clamp

1шт.

35

H163434

Band

1шт.

36

19M7550

Cap Screw

M10 X 35

1шт.

37

12M7066

Lock Washer

10 mm

2шт.

38

H238070

Clamp

SUB FOR T108036

2шт.

39

19M7362

Cap Screw

M12 X 55

1шт.

40

12M7067

Lock Washer

12 mm

1шт.

41

JD7781

Lubrication Fitting

1шт.

42

4448396

Seal Kit

1шт.

43

9183013J

Hydraulic Cylinder

SUB FOR (1) 4423852Y

1шт.

45

19M8213

Screw

M10 X 50 USE WITH 0789507

4шт.

19M7662

Cap Screw

M10 X 30 USE WITH 0789508

4шт.

46

A853166

Adapter Fitting

Not Illustrated

1шт.

47

19M7662

Cap Screw

M10 X 30 Not Illustrated

4шт.

48

12M7066

Lock Washer

10 mm Not Illustrated

4шт.
