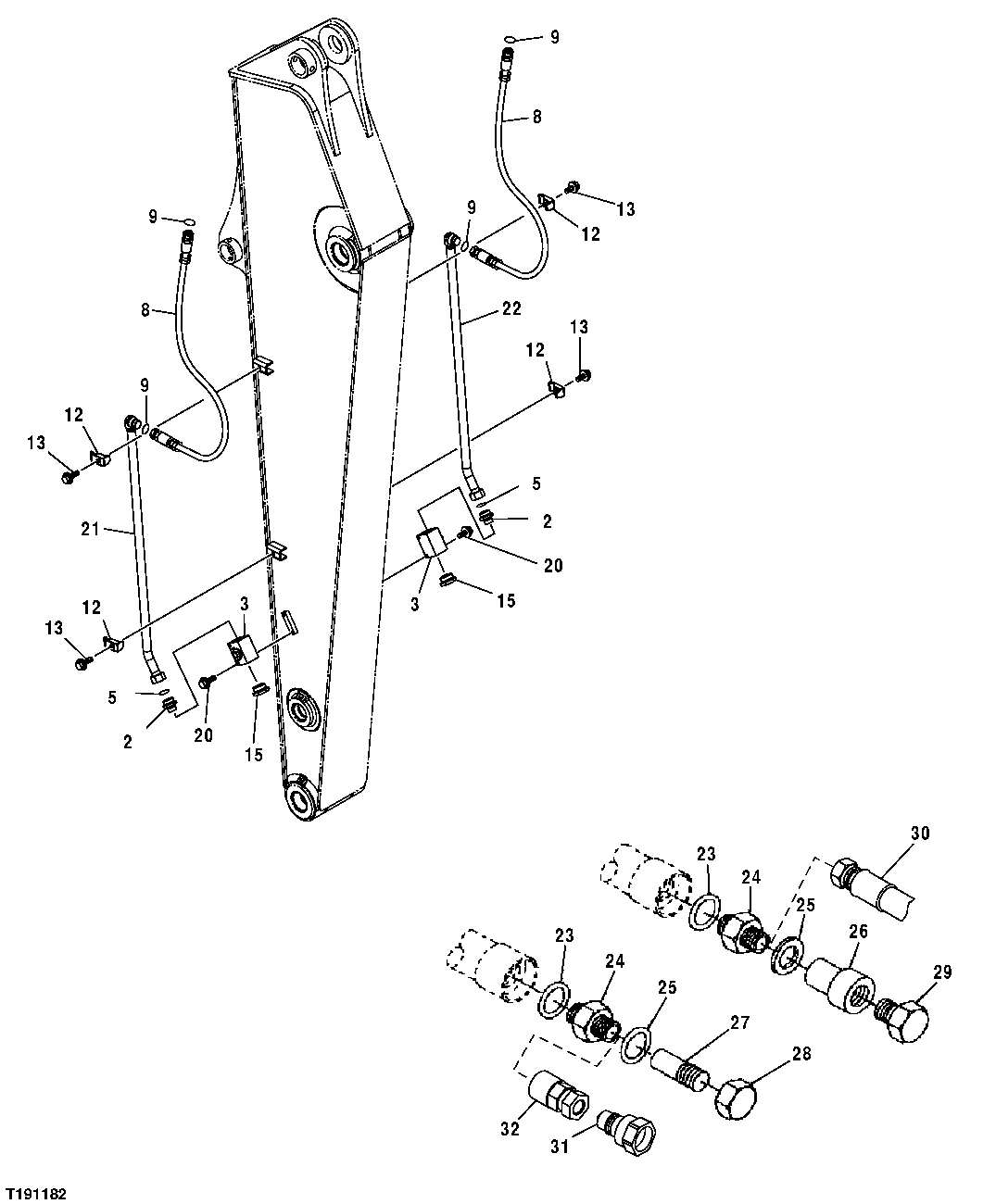

Запчасти John Deere 20C 260 - Arm Hoses And Lines, Factory Installed Auxiliary Plumbing 3363 LINES, HOSES & FITTINGS

2

A853188

Adapter Fitting

2шт.

TH101926

O-Ring

2шт.

3

4447675

Flow Control Hyd. Valve

(SUB FOR 4600164)

2шт.

5

T76938

O-Ring

2шт.

8

AT215504

Hydraulic Hose

(FOR USE WITH 2.52M ARM)

2шт.

AT155744

Hydraulic Hose

(FOR USE WITH 3.01M ARM)

2шт.

9

T77858

O-Ring

4шт.

12

4190126

Clamp

4шт.

13

19M7363

Cap Screw

M12 X 60

4шт.

12H301

Lock Washer

1/2"

4шт.

15

A885008

Pipe Plug

SUB FOR 4113926

2шт.

TH101926

O-Ring

2шт.

20

19M8081

Cap Screw

M10 X 80

4шт.

21

8083834J

Oil Line

(SUB FOR AT318039 OR 8083834)

1шт.

22

8084096J

Oil Line

(SUB FOR AT318040 OR 8084096)

1шт.

23

TH101926

O-Ring

2шт.

24

4189535

Adapter Fitting

(1" ORFS)

2шт.

AT318016

Adapter Fitting

(SUB FOR 4189537)(3/4" ORFS)

2шт.

AT301151

Fitting

(1" SAE, MALE)

2шт.

X1216F4OMXS

Adapter Fitting

(3/4" 37 DEGREE)

2шт.

X16F4OMXS

Adapter Fitting

(1" 37 DEGREE)

2шт.

AT305641

Fitting

(3/4" SAE, MALE)

2шт.

25

R29936

O-Ring

2шт.

26

AT186111

Quick Coupler

(1" FEMALE) (SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189410 NLA)

1шт.

27

AT186112

Quick Coupler

(1" MALE) (SCREW TOGETHER COUPLER)

1шт.

Kit

( AT189409 NLA)

1шт.

28

AT186113

Cap

1шт.

29

AT186114

Plug

1шт.

30

X1JS782016

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J9782016

Hose Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

31

AT117365

Hydr. Quick Coupler Plug

MALE (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE (-16) 1 5/16 SAE O-RING

2шт.

32

AT117364

Hydr. Quick Coupler Socket

FEMALE (-12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE (-16) 1 5/16 SAE O-RING

2шт.
