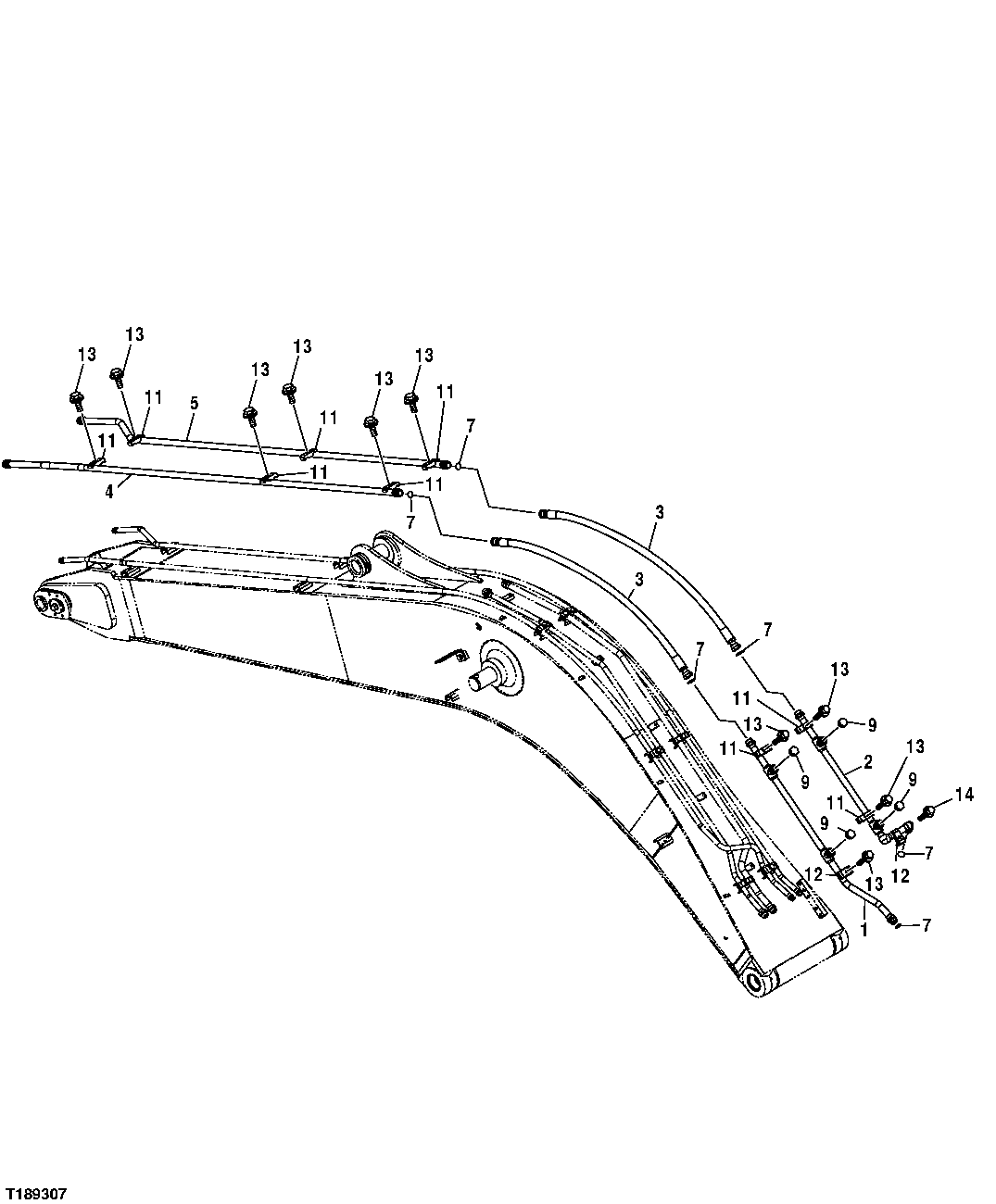

Запчасти John Deere 20C 259 - BOOM HOSES AND LINES (FACTORY INSTALLED AUXILIARY PLUMBING) 3363 LINES, HOSES & FITTINGS

1

9745411

Line

1шт.

2

8079467

Line

1шт.

3

AT131293

Hydraulic Hose

2шт.

4

DH800105

Line

(SUB FOR 8082279, THIS APPLICATION)

1шт.

5

DH800106

Pipe

(SUB FOR 8082278, THIS APPLICATION)

1шт.

7

T77858

O-Ring

6шт.

9

4174542

Drain Plug

4шт.

AT318035

O-Ring

(SUB FOR 4506424)

4шт.

11

4141806

Clamp

9шт.

12

4190126

Clamp

2шт.

13

19M7363

Cap Screw

M12 X 60

10шт.

12H301

Lock Washer

1/2"

10шт.

14

19M8348

Cap Screw

M12 X 65

1шт.

12H301

Lock Washer

1/2"

1шт.
