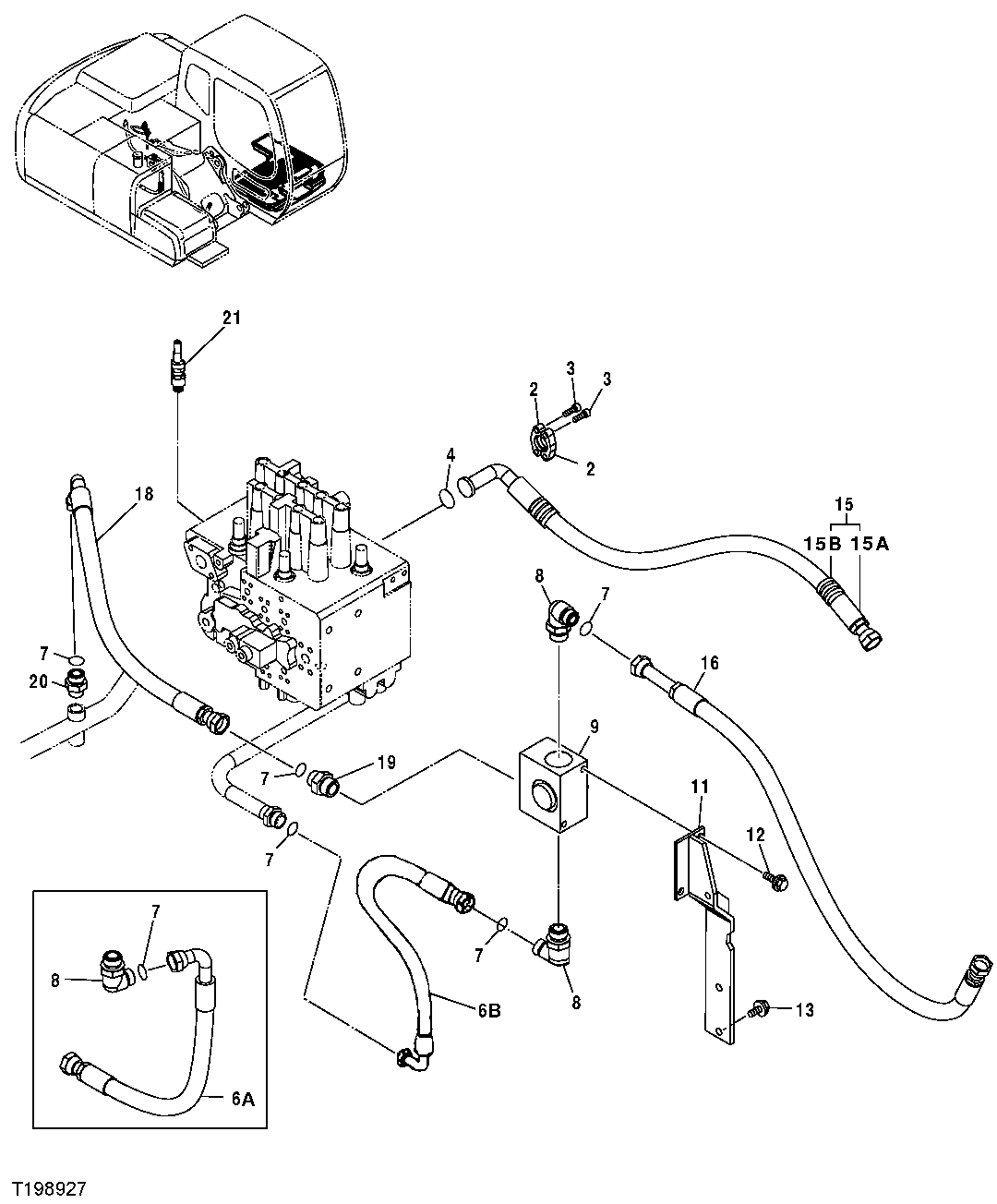

Запчасти John Deere 20C 258 - CONTROL VALVE PRESSURE AND RETURN AUXILIARY PLUMBING (FACTORY INSTALLED) 3363 LINES, HOSES & FITTINGS

2

R29424

Flange Fitting

2шт.

3

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

4

T59014

O-Ring

1шт.

6A

Hydraulic Hose - Fabricate

( 4411920 NLA) Units Bu ilt Before October 2003

1шт.

6B

4407004

Hose

Units Built After September 2003

1шт.

7

T77858

O-Ring

5шт.

8

4202113

Elbow Fitting

2шт.

TH101926

O-Ring

2шт.

9

4455599

Valve

(SUB FOR 4609664)

1шт.

11

Bracket

( 8081420 NLA) Units Bu ilt Before October 2003

1шт.

8095475

Bracket

Units Built After September 2003

1шт.

12

19M8011

Cap Screw

M12 X 30

2шт.

13

19M7403

Cap Screw

M12 X 35

2шт.

15

Hydraulic Hose

( 9197248 NLA)

1шт.

15A

4434465

Hydraulic Hose

1шт.

15B

Hose Guard

(MAKE FROM XHG-075 , CTL) ( 4327294 NLA)

3шт.

16

4449490

Hydraulic Hose

1шт.

18

4323280

Hydraulic Hose

1шт.

19

AT318016

Adapter Fitting

(SUB FOR 4189537)

1шт.

TH101926

O-Ring

1шт.

20

A853166

Adapter Fitting

(SUB FOR 4189619)

1шт.

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

21

9200504

Pressure Relief Valve

2шт.
