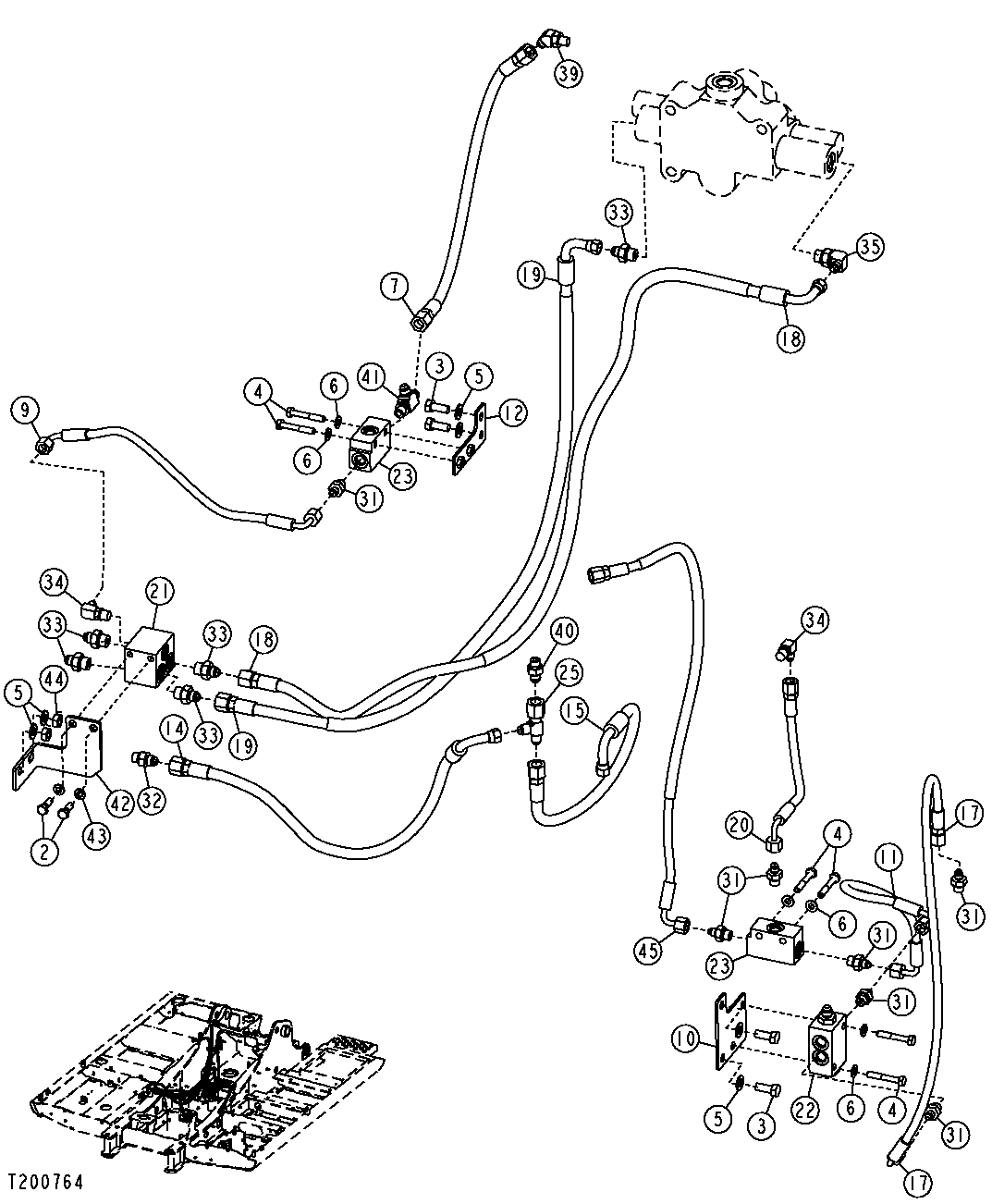

Запчасти John Deere 20C 256 - BLADE PILOT HOSES, BLADE VALVE HOSES, SHUTTLE VALVES AND PILOT VALVES 3363 LINES, HOSES & FITTINGS

2

19M7163

Cap Screw

M8 X 25

2шт.

3

19M7402

Cap Screw

M10 X 25

4шт.

4

19M8397

Cap Screw

M8 X 50

6шт.

5

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

6

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

7

4375673

Hydraulic Hose

1шт.

9

4442340

Hydraulic Hose

1шт.

10

AP38667

Bracket

1шт.

11

4442333

Hydraulic Hose

1шт.

12

AP38669

Bracket

1шт.

14

4462435

Hydraulic Hose

1шт.

15

4462438

Hydraulic Hose

1шт.

17

4462433

Hydraulic Hose

1шт.

18

4462443

Hydraulic Hose

1шт.

4327315

Hose Guard

4327293 NLA

2шт.

19

9206523

Hydraulic Hose

1шт.

20

4442325

Hydraulic Hose

1шт.

21

4330230

Flow Control Hyd. Valve

(SHUTTLE)

1шт.

22

4337928

Flow Control Hyd. Valve

1шт.

23

4203447

Flow Control Hyd. Valve

2шт.

25

4246672

Tee Fitting

1шт.

31

A852122

Adapter Fitting

7шт.

32

A852123

Adapter Fitting

2шт.

33

A852133

Adapter Fitting

5шт.

34

4154670

Elbow Fitting

2шт.

35

A852333

Elbow Fitting

1шт.

39

A852223

Elbow Fitting

1шт.

40

A852123

Adapter Fitting

1шт.

41

A852423

Tee Fitting

1шт.

42

DH300134

Bracket

SUB FOR P70339

1шт.

43

Washer

12M7065 NLA

2шт.

44

14M7274

Nut

M10

2шт.

45

4454732

Hydraulic Hose

1шт.

4327315

Hose Guard

4327293 NLA

1шт.
