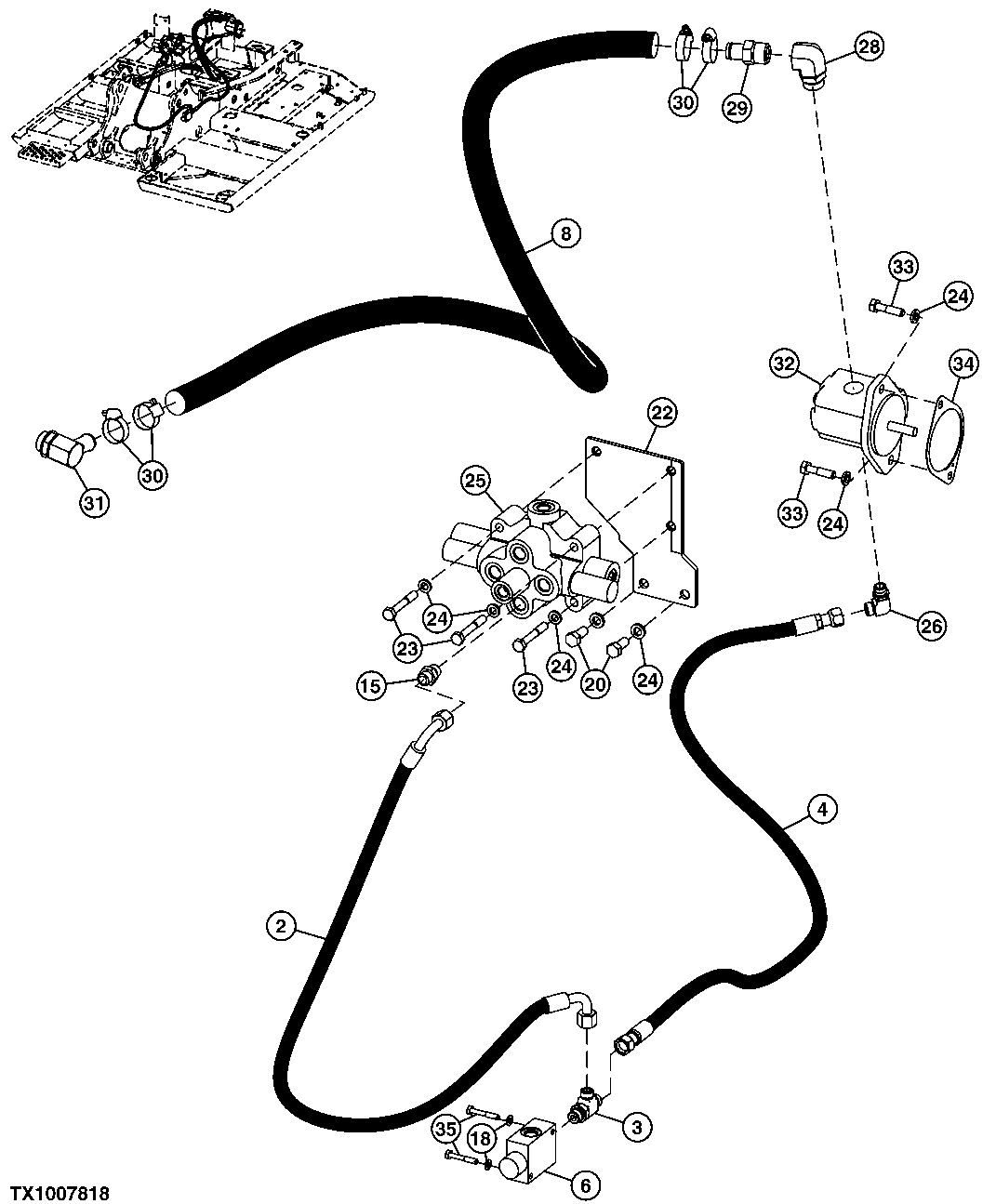

Запчасти John Deere 20C 252 - Blade Hydraulic Hoses (Pump To Relief Valve, To Control Valve) 3363 LINES, HOSES & FITTINGS

2

DH400583

Hydraulic Hose

1шт.

3

A853444

Tee Fitting

1шт.

4

DH400584

Hydraulic Hose

1шт.

6

4411019

Pressure Relief Valve

1шт.

8

P70724

Hydraulic Hose

1шт.

9

T77857

O-Ring

Not Illustrated

4шт.

15

A853144

Adapter Fitting

1шт.

18

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

20

19M7877

Cap Screw

M14 X 30

2шт.

21

12H317

Lock Washer

9/16"

2шт.

22

8081166

Bracket

1шт.

23

19M7364

Cap Screw

M12 X 80

3шт.

24

12H301

Lock Washer

1/2"

5шт.

25

Control Valve

9219730 NLA

1шт.

26

38H1005

Elbow Fitting

1шт.

27

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

28

DH400618

Elbow Fitting

1шт.

29

R49518

Fitting

1шт.

30

AT143841

Clamp

SUB FOR DH400627, TY22470 NA

4шт.

31

AH75162

Fitting

1шт.

32

AP35371

Hydraulic Pump

1шт.

33

19M7361

Cap Screw

M12 X 50

2шт.

34

R522690

Gasket

SUB FOR R134465

1шт.

35

19M8397

Cap Screw

M8 X 50

2шт.
