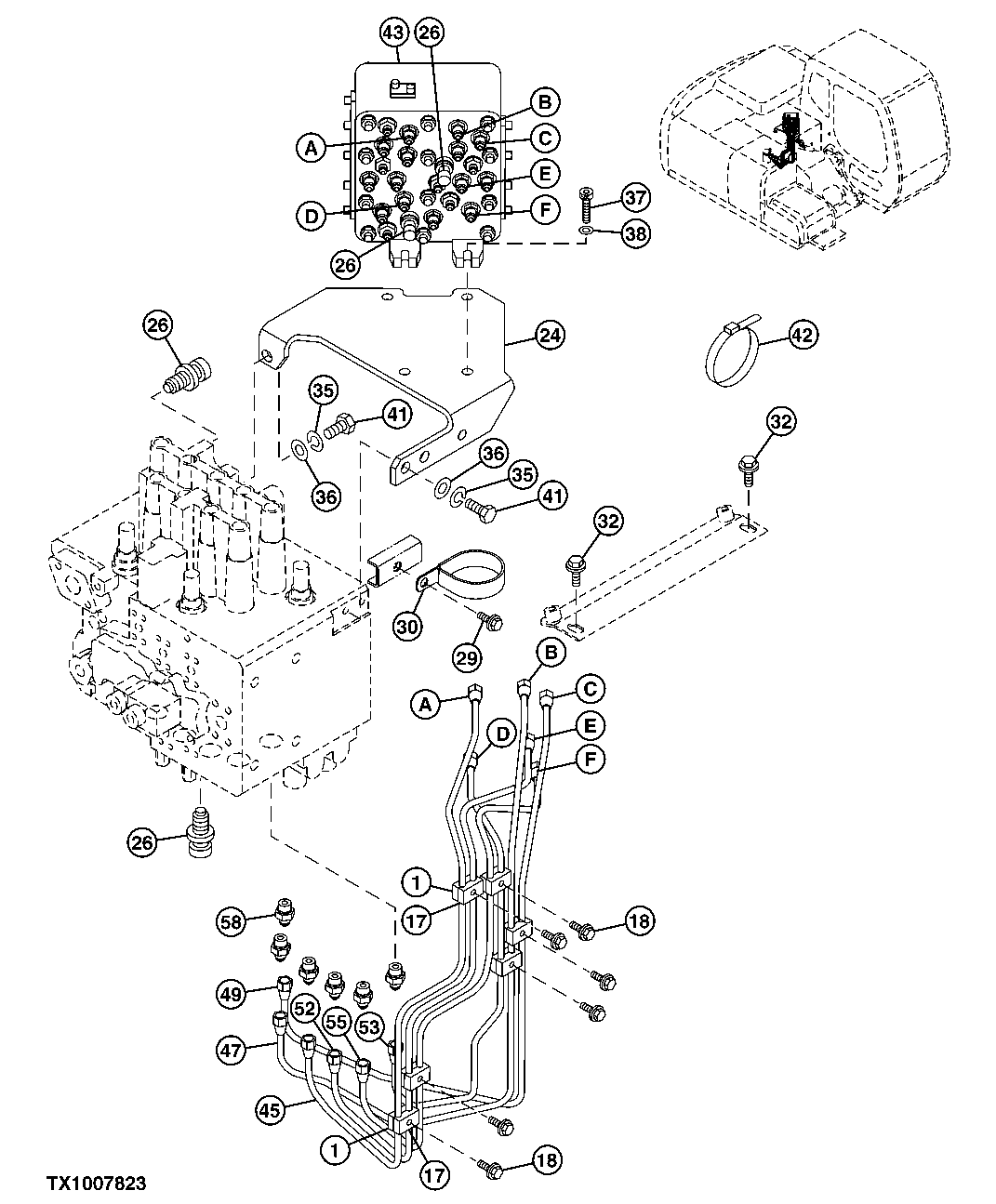

Запчасти John Deere 20C 243 - PILOT LINES (BOTTOM OF CONTROL VALVE TO SIGNAL MANIFOLD) 3363 LINES, HOSES & FITTINGS

1

9735305

Clamp

(SUB FOR AP33637)

6шт.

17

9735306

Clamp

(SUB FOR AP33638)

6шт.

18

J010825

Cap Screw

6шт.

24

8081659

Bracket

1шт.

26

4436535

Sensor

4шт.

29

J011020

Cap Screw

1шт.

30

4204136

Clip

1шт.

32

J021025

Cap Screw

2шт.

35

A590914

Ring

3шт.

36

A590114

Washer

3шт.

37

L159272

Screw

(SUB FOR J781040)

4шт.

38

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

4шт.

41

J901435

Cap Screw

3шт.

42

H77698

Tie Band

4шт.

43

4468336

Flow Control Hyd. Valve

(ALSO ORDER 4467088 AND A 852123 ) (SUB FOR 4452625)

1шт.

45

3091717

Line

1шт.

47

3091735

Line

1шт.

49

3091736

Line

1шт.

52

3091718

Line

1шт.

53

3091719

Line

1шт.

55

3091739

Line

1шт.

58

4255305

Fitting

6шт.

CH11570

O-Ring

(SUB FOR 4509180)

6шт.

59

4467088

Hose

(NOT ILLUSTRATED)

1шт.

60

A852123

Adapter Fitting

(NOT ILLUSTRATED)

1шт.
