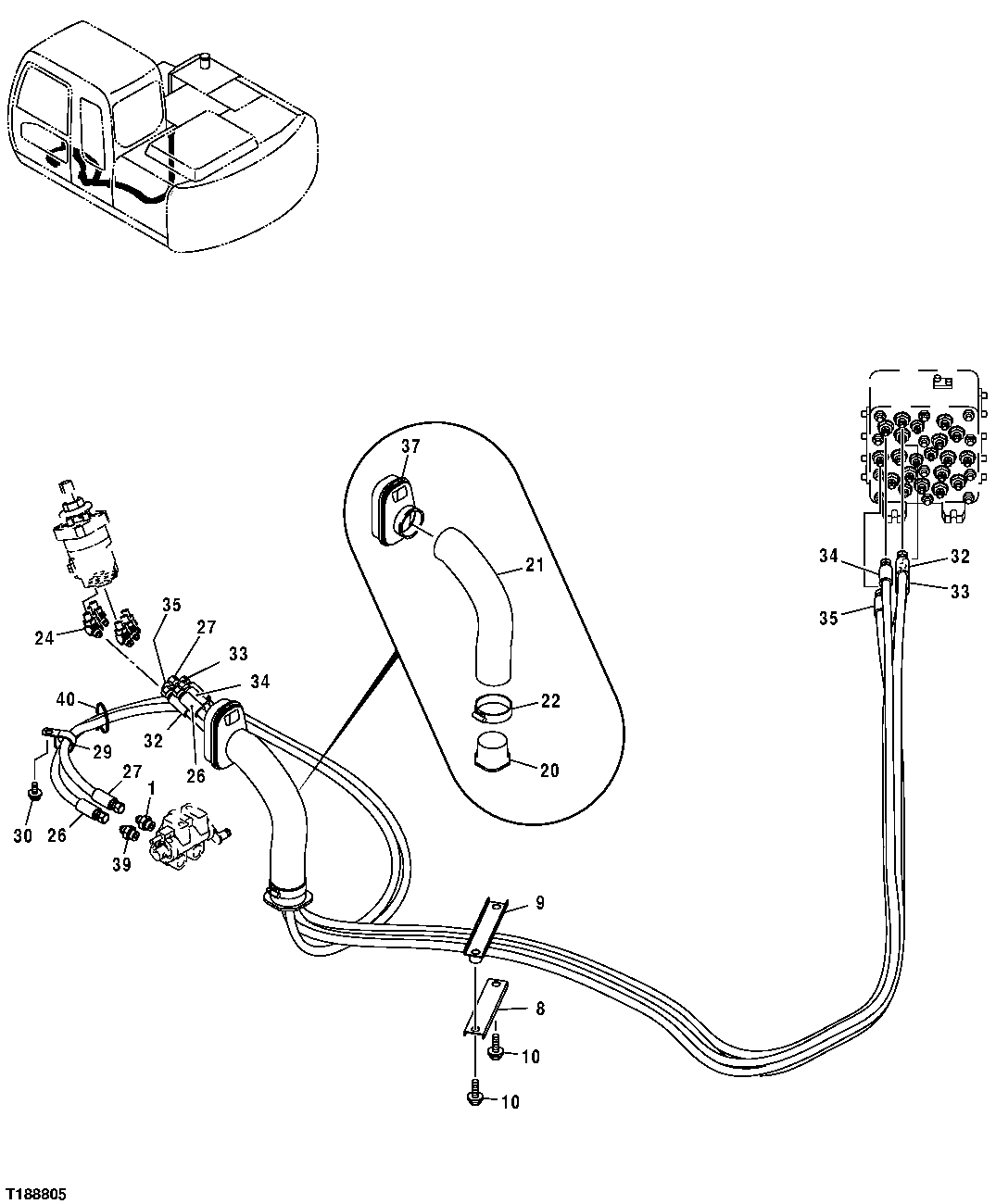

Запчасти John Deere 20C 241 - PILOT HOSES (LEFT CONTROLLER TO SIGNAL MANIFOLD, SHUTOFF VALVE) 3363 LINES, HOSES & FITTINGS

1

A852133

Adapter Fitting

1шт.

CH11570

O-Ring

1шт.

8

4412666

Clamp

1шт.

9

9751787

Clamp

1шт.

10

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

20

3079728

Bushing

1шт.

21

4351175

Hose

1шт.

22

4351774

Clamp

1шт.

24

A852223

Elbow Fitting

6шт.

M800650

Packing

6шт.

26

4437656

Hydraulic Hose

Fabricate

1шт.

27

4437653

Hydraulic Hose

1шт.

29

XCL-29

Hose Clamp

(SUB FOR 4190264 OR 4193848)

1шт.

30

19M8324

Cap Screw

M10 X 16

1шт.

12M7067

Lock Washer

12 mm

1шт.

32

4685196

Hydraulic Hose

(SUB FOR 4453227, 4453225, 4461271, 4461270, 4461269)

1шт.

33

4453226

Hydraulic Hose

1шт.

34

4685196

Hydraulic Hose

(SUB FOR 4453227, 4453225, 4461271, 4461270, 4461269)

1шт.

35

4453226

Hydraulic Hose

(SUB FOR 4453228)

1шт.

37

2045998

Bushing

1шт.

39

4261938

Fitting

1шт.

CH11570

O-Ring

1шт.

40

H77698

Tie Band

1шт.
