236 - PILOT HOSES (HYDRAULIC PUMP REGULATOR TO SIGNAL MANIFOLD, RESERVOIR)

Запчасти John Deere 20C 236 - PILOT HOSES (HYDRAULIC PUMP REGULATOR TO SIGNAL MANIFOLD, RESERVOIR) 3363 LINES, HOSES & FITTINGS

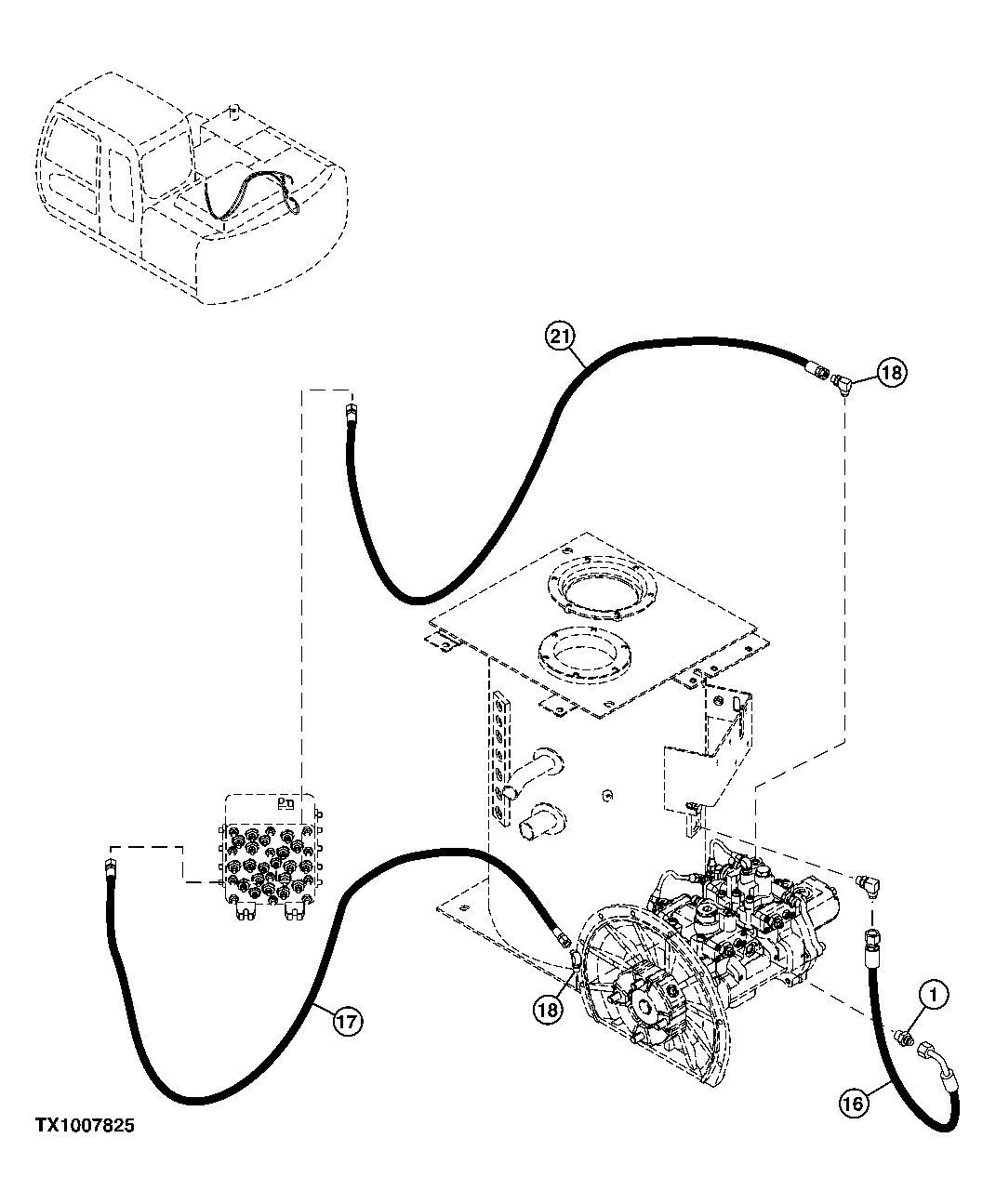

Схема запчастей John Deere 20C - 236 - PILOT HOSES (HYDRAULIC PUMP REGULATOR TO SIGNAL MANIFOLD, RESERVOIR) 3363 LINES, HOSES & FITTINGS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A852144

Adapter Fitting

1шт.

4506418

O-Ring

1шт.

16

4446905

Hydraulic Hose

1шт.

17

DH400612

Hydraulic Hose

1100 mm DH900431 NLA, 4442766 NLA

1шт.

4327315

Hose Guard

4327293 NLA

1шт.

18

A852323

Elbow Fitting

2шт.

M800650

Packing

SUB FOR 957366

1шт.

21

DH400611

Hydraulic Hose

SUB FOR 4449328, 1100 mm, DH900430 NLA, 4449326 NA

1шт.

4327315

Hose Guard

4327293 NLA

1шт.
