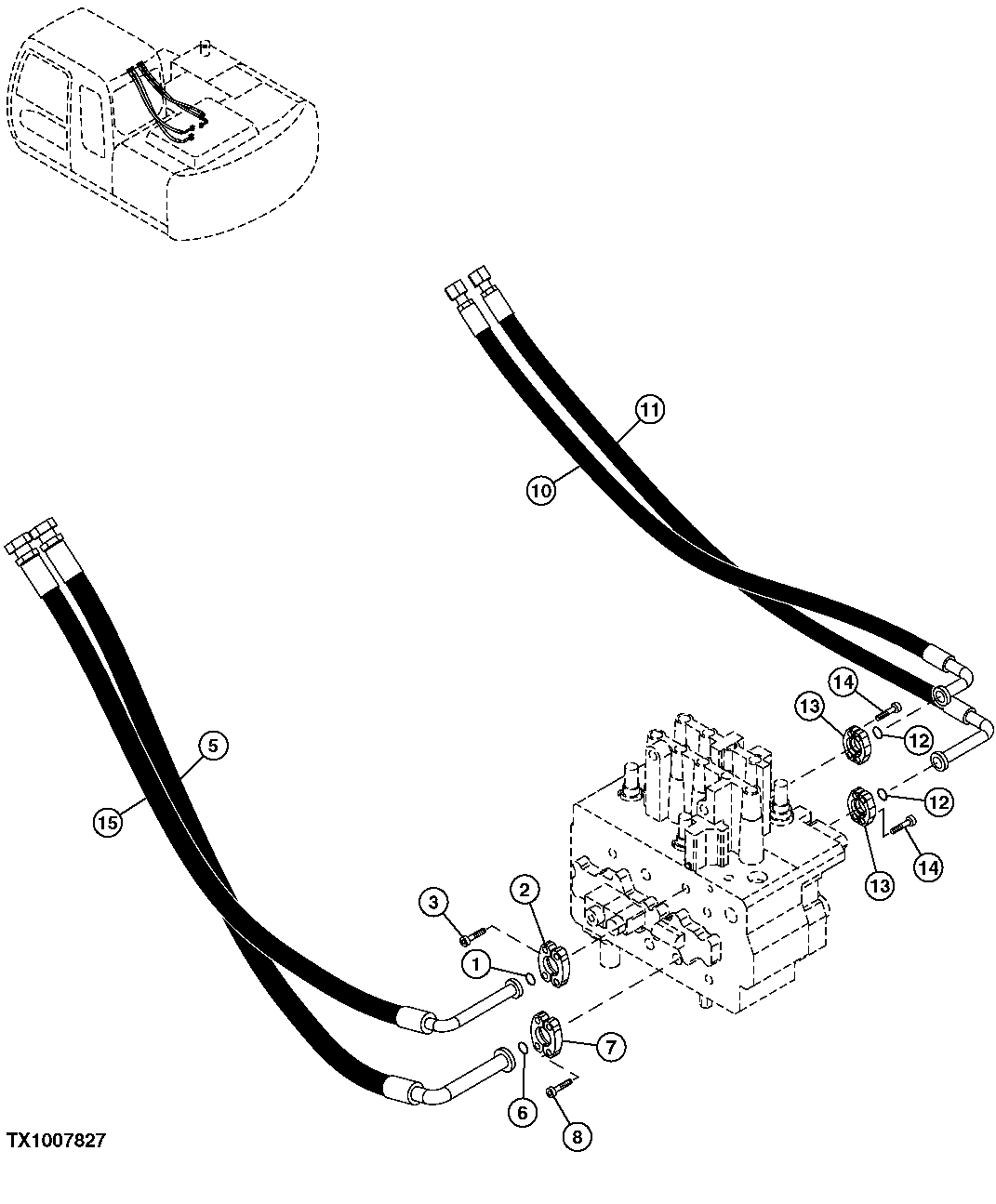

Запчасти John Deere 20C 231 - CONTROL VALVE TO BOOM LINE HOSES (ARM AND BUCKET CYLINDER) 3363 LINES, HOSES & FITTINGS

1

R69667

O-Ring

SUB FOR 4510167

1шт.

2

4510173

Fitting

2шт.

3

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

4шт.

5

Hose

9202035 NLA, ORDER 4455222 AND (2) 4327294

1шт.

4455222

Hydraulic Hose

SUB FOR 4357774

2шт.

4327294

Hose Guard

1шт.

6

T59014

O-Ring

SUB FOR 971489

1шт.

7

R29424

Flange Fitting

SUB FOR 986910

2шт.

8

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

10

Hose

9184014 NLA, ORDER 4425161 AND (2) 4327294

1шт.

4425161

Hydraulic Hose

1шт.

4327294

Hose Guard

2шт.

11

Hose

9149508 NLA, ORDER 4332830 AND (2) 4327294

1шт.

4332830

Hydraulic Hose

1шт.

4327294

Hose Guard

2шт.

12

R69667

O-Ring

SUB FOR 4510167

2шт.

13

4510173

Fitting

4шт.

14

19M7657

Screw

M8 X 25 SUB FOR J780825

8шт.

15

Hose

9149507 NLA, ORDER 4332827 AND (2) 4327294

1шт.

4332827

Hydraulic Hose

1шт.

4327294

Hose Guard

2шт.
