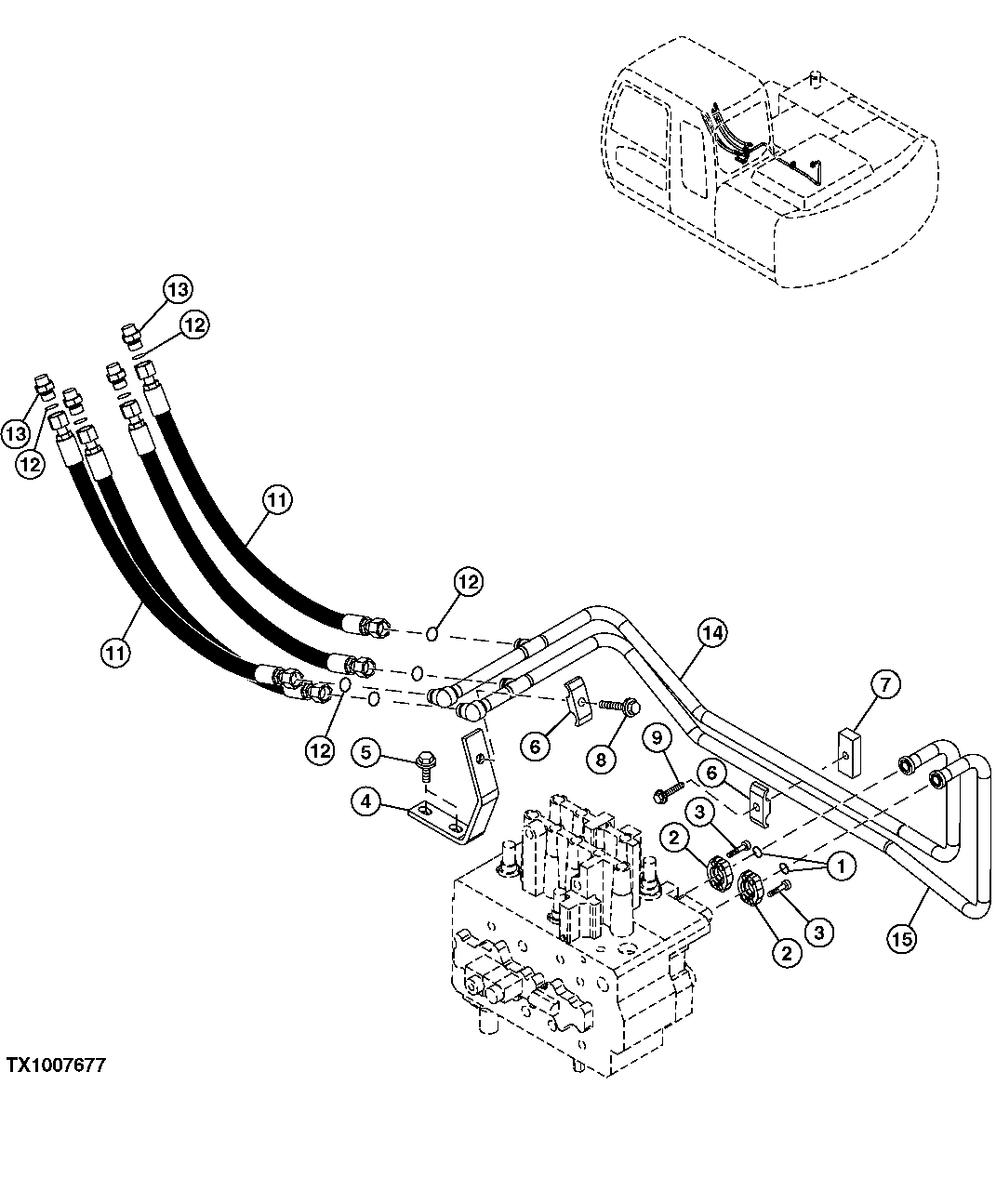

Запчасти John Deere 20C 230 - CONTROL VALVE TO BOOM CYLINDER HOSES AND LINES 3363 LINES, HOSES & FITTINGS

1

R69667

O-Ring

2шт.

2

4510173

Fitting

4шт.

3

19M7657

Screw

M8 X 25 (SUB FOR P61954 OR J780825)

8шт.

4

9737118

Support

1шт.

5

19M7872

Cap Screw

M12 X 25

2шт.

6

4189858

Clamp

2шт.

7

4369262

Manifold

1шт.

8

19M7363

Cap Screw

M12 X 60

1шт.

9

19M7361

Cap Screw

M12 X 50

1шт.

11

4285464

Hydraulic Hose

4шт.

12

T77857

O-Ring

8шт.

13

A853144

Adapter Fitting

4шт.

4506418

O-Ring

1шт.

14

8077223

Line

1шт.

15

8077222

Line

1шт.
